Overview:
The DuroBumps DBR425 Rear Bump Stops for 2003–2022 Lexus GX are built for vehicles with 2" or more rear lift. They reduce up-travel by 2" to prevent bottoming out extended shocks and eliminate OEM bump stop misalignment.
– Designed for 2"+ lift and 10" rear shocks (non-long travel)
– Progressive dual rubber compression improves ride quality
– Offset design ensures correct contact with axle tube
– Reduces tire rub and driveshaft contact under compression
– Bolt-on fit in OEM location with no modifications required
– Compact, application-specific—no spacers or adaptors needed
Specifications:
– Material: Dual durometer rubber
– Size: 5 x 3 x 4.25 in. (each)
– Compression spec: 1 in. at 1500 lbs.
– Weight: 38 oz. / 2.38 lbs. per set
– Hardware: JIS 10.9 M8-1.25 x 40 mm flange bolts (zinc-coated)
– Thread locker: Medium (blue), single-use included
– Part number: DBR425
– Made in the USA
Fitment:
2003–2022 Lexus GX

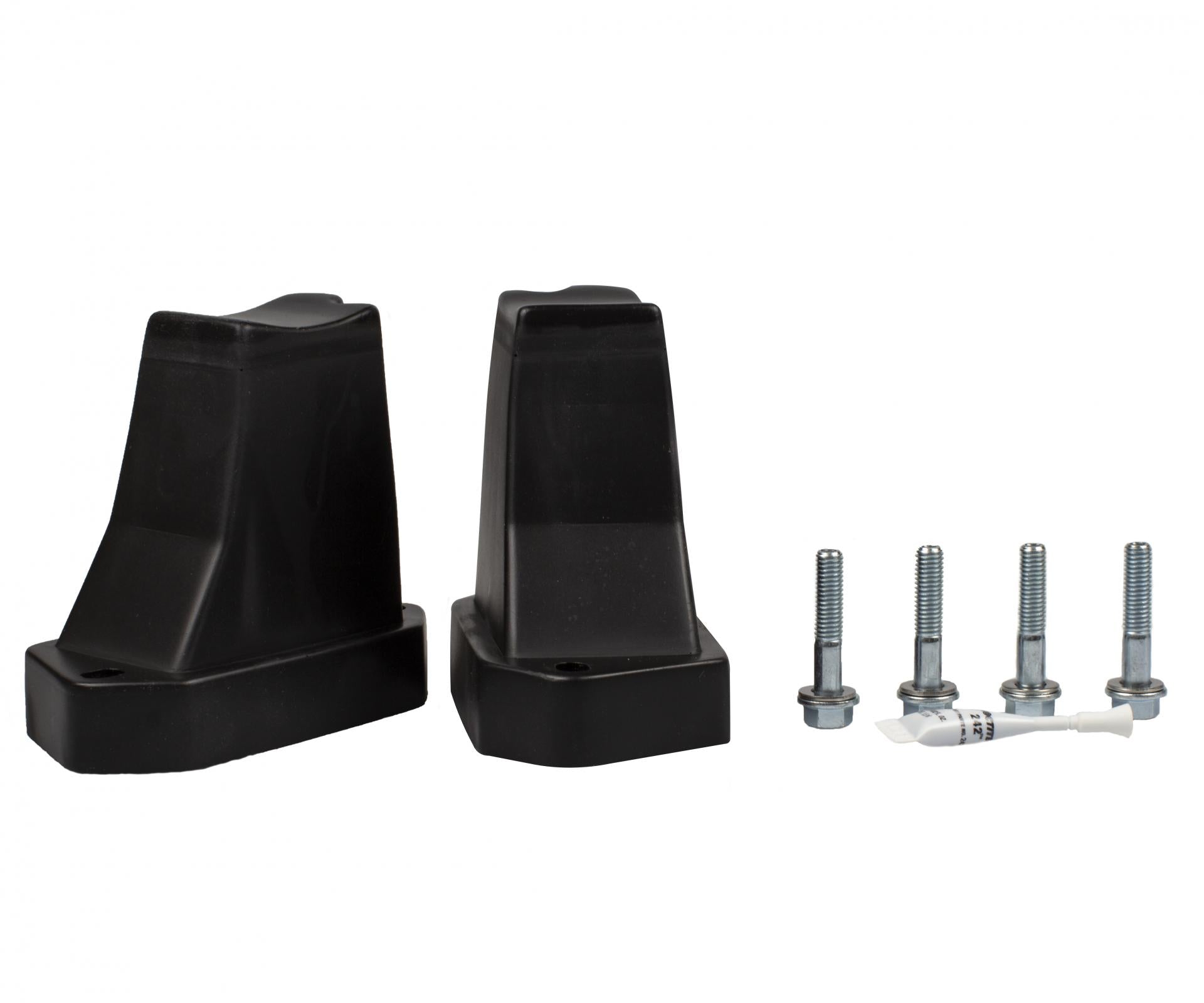

Included:
– (2) Rear DuroBumps, 4.25 in. height
– (4) JIS 10.9 M8-1.25 x 40 mm flange bolts
– (1) Single-use medium thread locker
– (1) DuroBumps sticker
Notes:
For off-road use only. Not intended for towing applications. Reduces up-travel by 2"—ensure suspension setup and shock lengths are compatible. Install is side-specific; follow orientation markings.
