Overview:
The DuroBumps DBR35 Rear Bump Stops for 2003–2024 Toyota 4Runner improve ride quality and component protection with a taller, progressive rubber design. Ideal for stock-height and mildly lifted trucks up to 1.5 inches.
– Dual durometer rubber softens harsh bottom-outs
– Slightly taller profile compresses under load for smoother impact
– Maintains full up-travel with no suspension loss
– Integrated offset corrects factory misalignment to axle tube
– Bolt-on fit with vehicle-specific design and included hardware
Specifications:
– Material: Dual durometer rubber
– Size: 5 x 3 x 3.5 in. (each)
– Compression spec: 0.75 in. at 1500 lbs.
– Weight: 28 oz. / 1.75 lbs. per set
– Hardware: JIS 10.9 M8-1.25 x 40mm flange bolts (zinc-coated)
– Thread locker: Medium (blue), single-use included
– Part number: DBR35
– Made in the USA
Fitment:
2003–2024 Toyota 4Runner
Included:

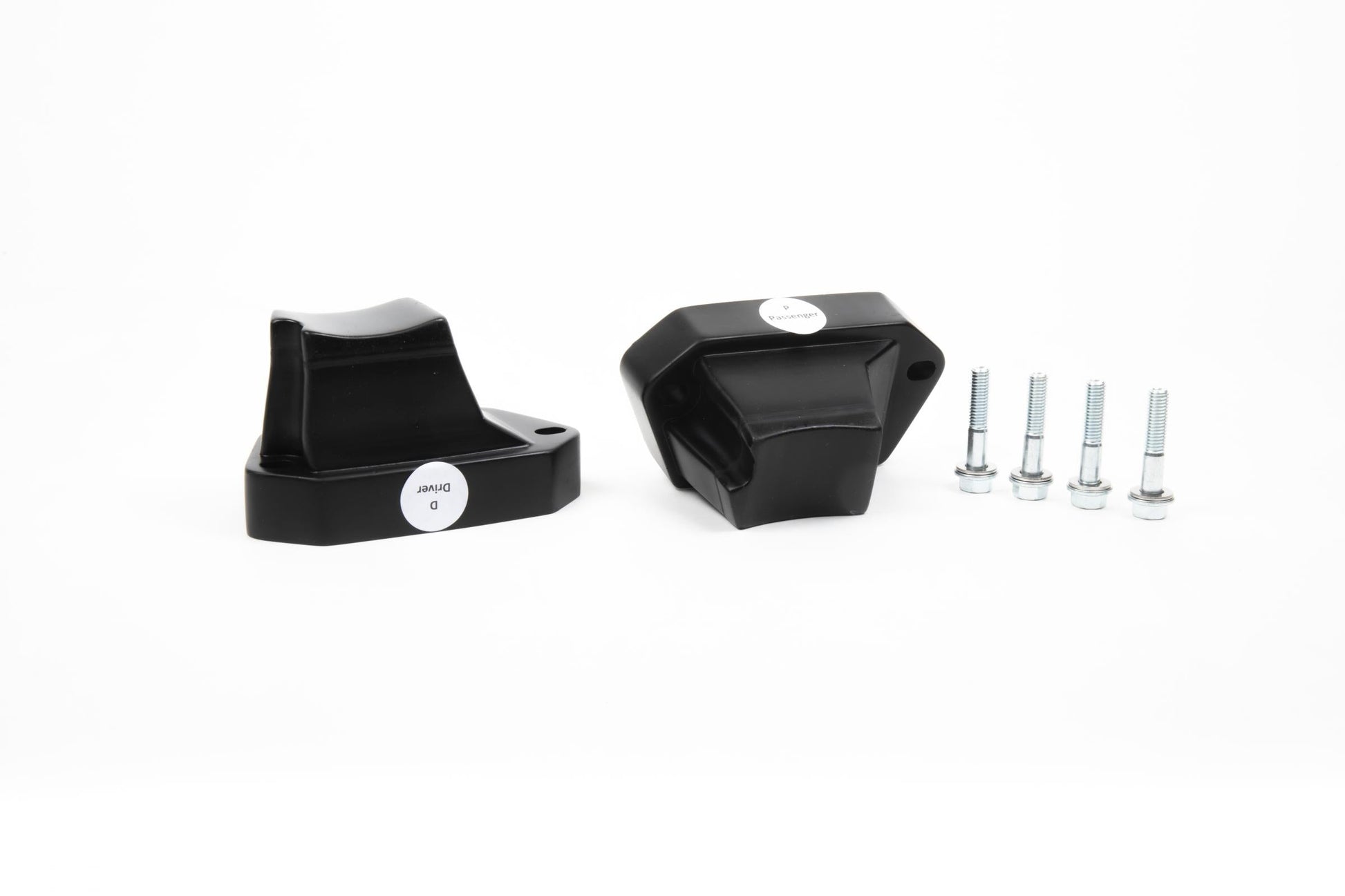

– (2) Rear DuroBumps, 3.5 in. height
– (4) JIS 10.9 M8-1.25 x 40mm flange bolts
– (1) Single-use medium thread locker
– (1) DuroBumps sticker
Notes:
For off-road use only. Not intended for towing applications. Designed for 0–1.5 in. lift and up to 9 in. rear shocks (non-long travel). Install is side-specific; follow alignment instructions carefully.
