Overview:

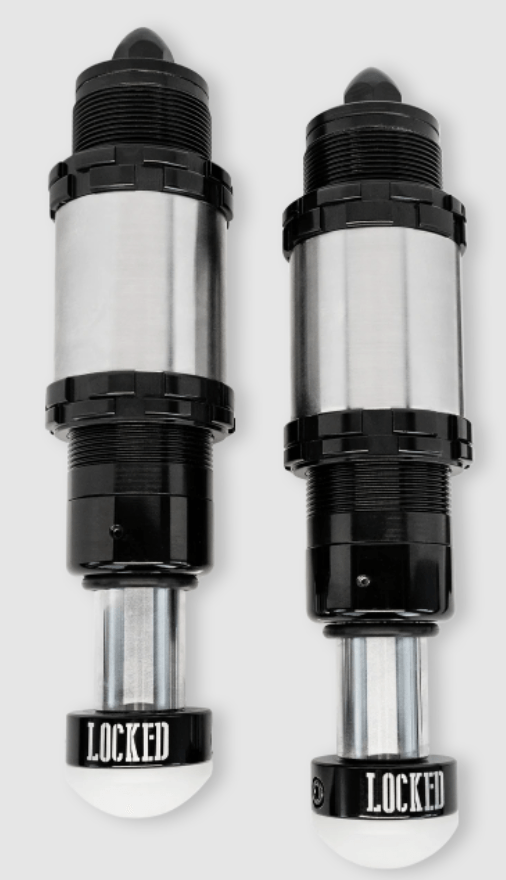

The Locked Offroad 2.0" Threaded Bump Stops are high-performance hydraulic bump stops built for controlled compression and quiet impact. Designed for strength and adjustability, this kit includes weld-on threaded sleeves with full 360° engagement.
– Fully rebuildable with adjustable nitrogen pressure and oil volume
– Threaded sleeve provides precise height adjustment and 360° support
– Delrin contact pad eliminates metal-on-metal contact
– Integrated Schrader cap design seals out dirt and moisture
– Includes two sets of locking rings per bump stop
– Sold as a pair
Specifications:
– 2.0” diameter shock bodies
– 1.26" hard-chromed, mirror-polished shafts
– Black zinc coated steel shock bodies
– 6061 machined aluminum components with deep black anodized finish
– Viton seals for high-temperature durability
– 2" stroke: 11.75" extended / 9.75" compressed
– 4" stroke: 14.75" extended / 10.75" compressed
– Threaded can dimensions: 2.52" OD x 2.55" tall
– Total OD with lock rings: 2.72"
– Shaft-mounted O-ring for travel reference
Fitment:
Fitment: See product title or contact support
Notes:
Sold as a pair. Includes weld-on threaded sleeves and dual lock rings per bump stop. Sleeves are designed to accommodate weld shrinkage. Intended for off-highway use only. Warranty: 1 year on non-wearable parts, 6 months on wearable parts.
