Overview:

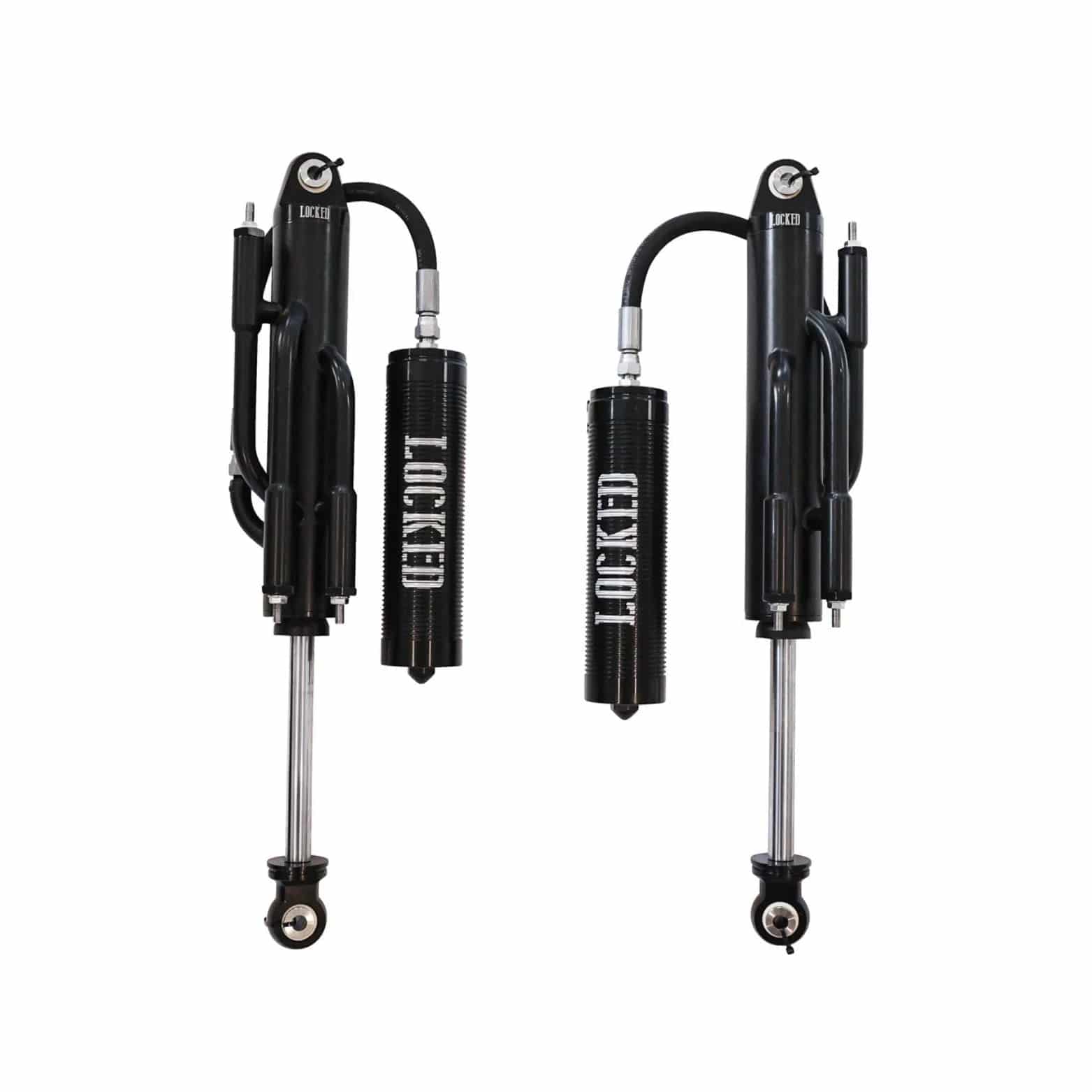

The Locked Offroad Kit Specific 2.5" Bypass is a three-tube bypass shock built for long travel suspension kits. Designed for maximum clearance and tunability, it's compatible with major long travel brands and delivers precise damping control under extreme use.
– Three-tube bypass layout for advanced compression and rebound tuning

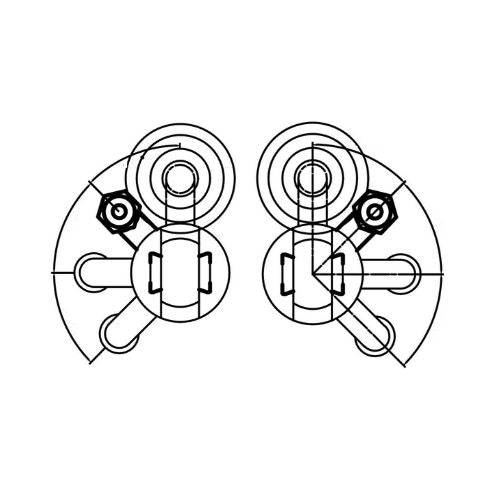

– Single-side tube orientation for control arm clearance
– Compatible with Dirt King, Total Chaos, Camburg, and BTF long travel kits
– Engineered for aggressive off-road use
– Sold individually
Specifications:
– 2.5” diameter shock body
– 8” stroke: 24.7” extended, 16.7” compressed
– Black zinc coated steel shock body
– 6061 machined aluminum components with black anodized finish
– 4130 chromed and polished steel shaft
– Buna-N seals for long-term durability
– Nitrogen-charged monotube with external bypass tubes
Fitment:
Fitment: See product title or contact support
Notes:
Sold individually. Designed specifically for long travel kits. All bypass tubes are located on one side of the shock in a mirrored configuration to ensure clearance with control arms. Compatible with kits from Dirt King, Total Chaos, Camburg, and BTF. For off-highway use only. Warranty: 1 year on non-wearable parts, 6 months on wearable parts.
