Overview:
The DuroBumps DBF24R front bump stops for 1996–2004 Toyota Tacoma offer progressive dampening and smoother suspension travel with no loss in wheel-up travel. Designed with a 14° taper to match OEM geometry, they eliminate shearing and extend component life under hard use.
– 14° angled design ensures even contact and reduced wear
– Dual durometer rubber for progressive compression
– Compresses to absorb impact before full suspension stop
– OEM bolt-in fit with no modifications required
– Compact, model-specific construction for ideal clearance
– Whisper-quiet engagement with no harsh rebound
Specifications:
– Height: 2.5 inches
– Diameter: 2.5 inches
– Compression: 0.75 inch at 1500 lbs
– Angle: 14° contact taper
– Base: 3/16 inch powder-coated steel
– Weight: 2.3 lbs. (set)
– Part Number: DBF24R
– Material: Dual durometer rubber
– Hardware: JIS 10.9 M10-1.25 x 35 mm bolts with thread locker
Fitment:
1996–2004 Toyota Tacoma

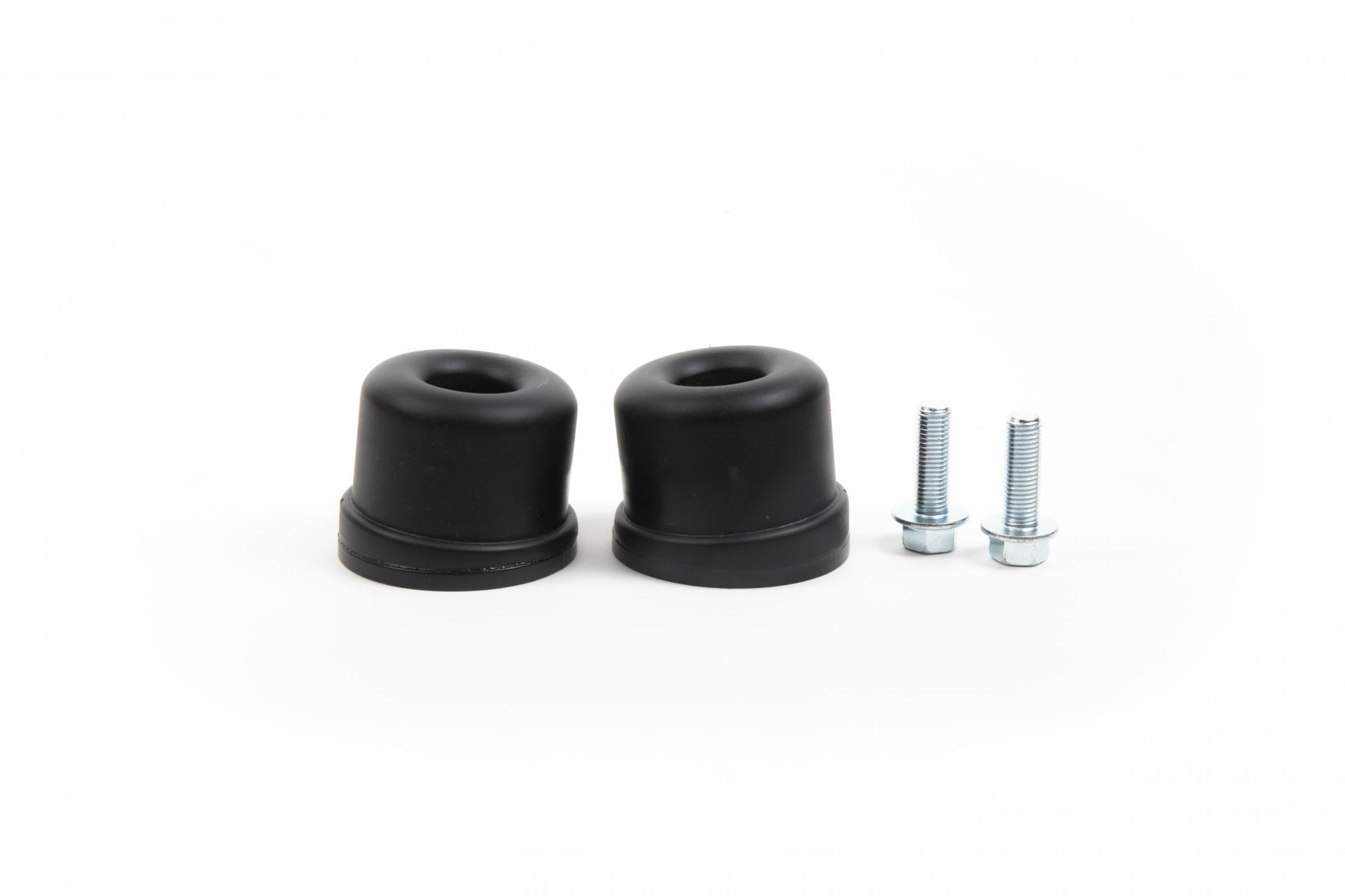

What's Included:
– (2) Front DuroBumps
– (2) JIS 10.9 M10-1.25 x 35 mm flange bolts
– (1) Single-use medium thread locker
– (1) Free sticker
Notes:
For off-road use only. Not intended for towing. Installs at the rear lower control arm only—OEM front bump stop remains in place. Use appropriate torque specs and tools for installation.
