Overview:

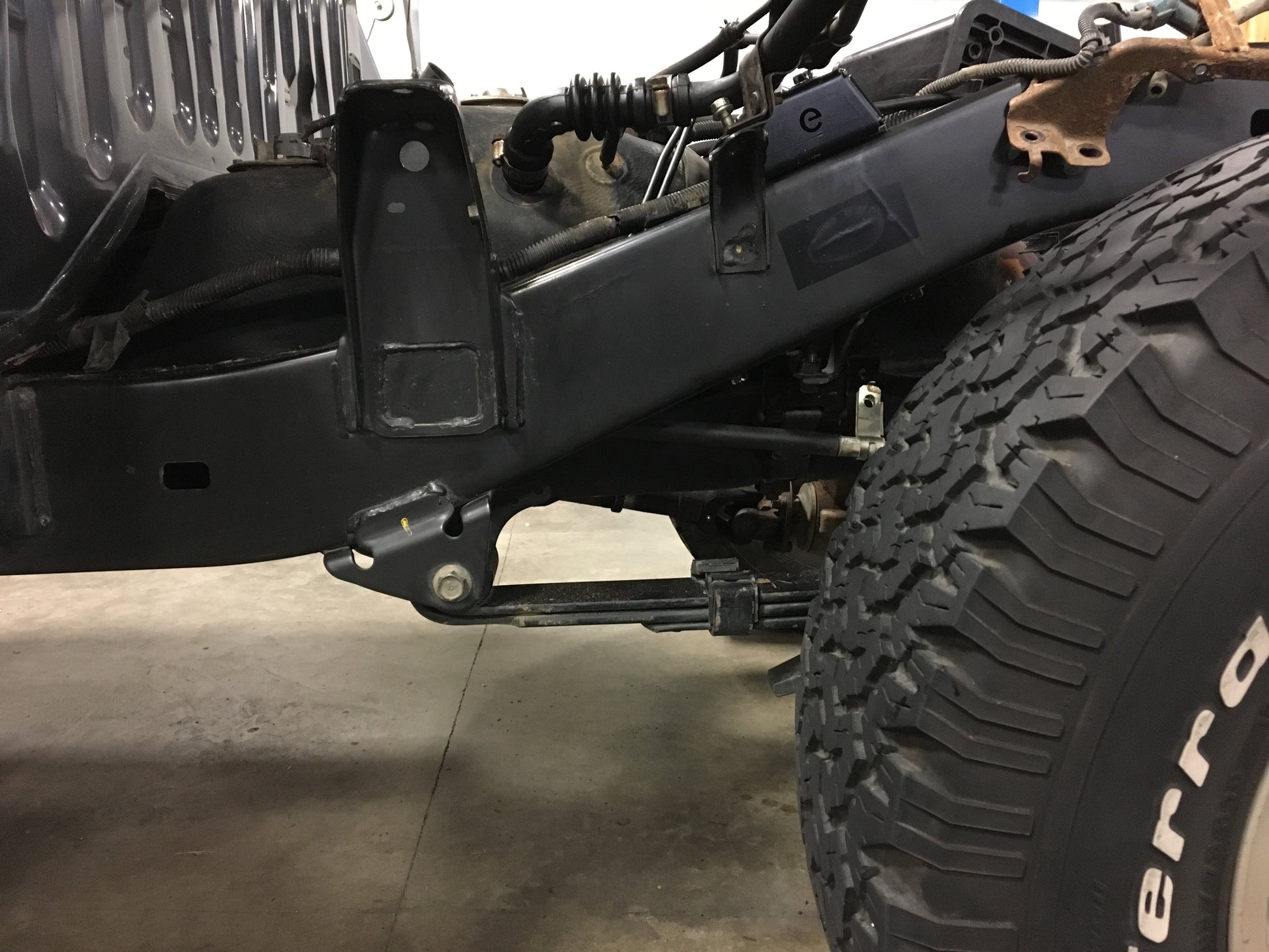

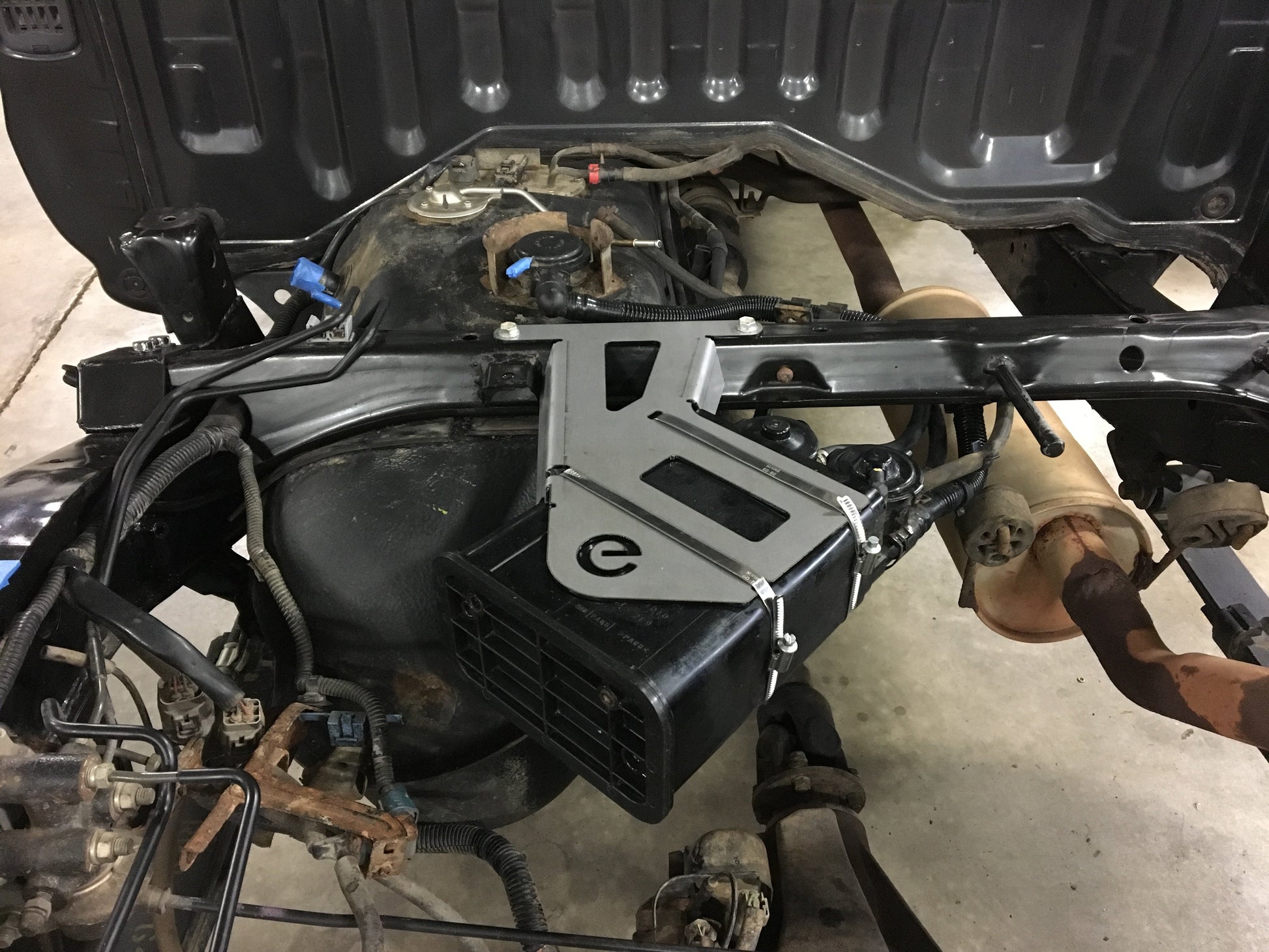

Fuel Tank Relocation Mounts for 1996–2004 Tacoma (Xtra Cab), designed to raise the factory fuel tank by 2" for improved ground clearance. Ideal for off-road builds where departure angle and underbody protection are critical.
– Lifts fuel tank above frame level to eliminate low-hanging clearance issues
– Designed for Xtra Cab models; potential fitment with modification on Double Cab
– Includes weld-in bed support notch plates for structural clearance
– Requires bed removal and crossmember extraction for installation
– Compatible with EVAP lift kit for models with EVAP system above tank
Specifications:
– Material: Steel
– Construction: Weld-on bracket system
– Lift amount: 2 inches
– Finish: Raw steel
Fitment:
1996–2004 Toyota Tacoma (Xtra Cab)
What’s Included:
– (2) Fuel tank relocation mounting brackets
– (2) Weld-in bed support notch plates
– (1) eimkeith logo decal
Notes:
Welding required. Bed removal and crossmember extraction necessary. Designed for Xtra Cab models; Double Cab compatibility may require cab sheet metal trimming. Additional EVAP lift kit required if equipped with EVAP system above the tank. Intended for off-road applications.
