Overview:
The DuroBumps DBR525 Rear Bump Stops for 1996–2002 Toyota 4Runner are engineered for lifted vehicles running 2" or more rear lift and extended rear shocks. Designed to limit up-travel and protect suspension components from bottom-out damage.
– Equivalent to OEM bump stops with a 2" block spacer
– Dual durometer rubber compresses progressively for smoother control
– Reduces tire rub and driveshaft-to-skid contact
– Compact, application-specific design—no spacers needed
– Bolt-on installation in OEM location with included hardware
Specifications:
– Material: Dual durometer rubber
– Size: 3.75 in. diameter x 5.25 in. height (each)
– Compression spec: 1 in. at 1500 lbs.
– Weight: 51 oz. / 3.18 lbs. per set
– Hardware: JIS 10.9 M8-1.25 x 50 mm flange bolts (zinc-coated)
– Thread locker: Medium (blue), single-use included
– Part number: DBR525
– Made in the USA
Fitment:
1996–2002 Toyota 4Runner

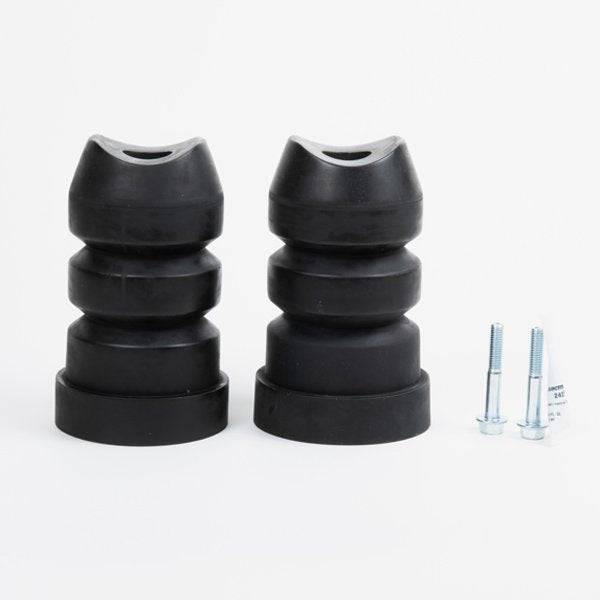

Included:
– (2) Rear DuroBumps, 5.25 in. height
– (2) JIS 10.9 M8-1.25 x 50 mm flange bolts
– (1) Single-use medium thread locker
– (1) DuroBumps sticker
Notes:
For off-road use only. Not intended for towing applications. Designed for use with 2"+ rear lifts and 10" rear shocks (non-long travel). Ensure correct torque specs during installation to avoid hardware damage.
