Overview:
Weld-on Panhard Correction Kit for 1996–2002 4Runner, designed to correct panhard bar geometry on 2–4.5" lifts. Restores factory axle alignment and optimizes rear suspension handling without requiring an adjustable panhard bar.
– Returns panhard bar to horizontal alignment for centered axle positioning
– Raises axle-side mount 2 inches to improve roll center on up to 4" lifts
– Selectable drop bracket matches lift height: 2", 3", or 4"
– Enhances handling by increasing rear roll stiffness and reducing lateral axle movement
– Eliminates interference under full articulation with factory bump stops
Specifications:
– Axle-side bracket: 3/16" (0.1875") steel
– Frame-side bracket: 0.120" steel
– Includes 3mm hardened steel spacers
– Weld-on design
– Finish: Unfinished raw steel
Fitment:
1996–2002 Toyota 4Runner

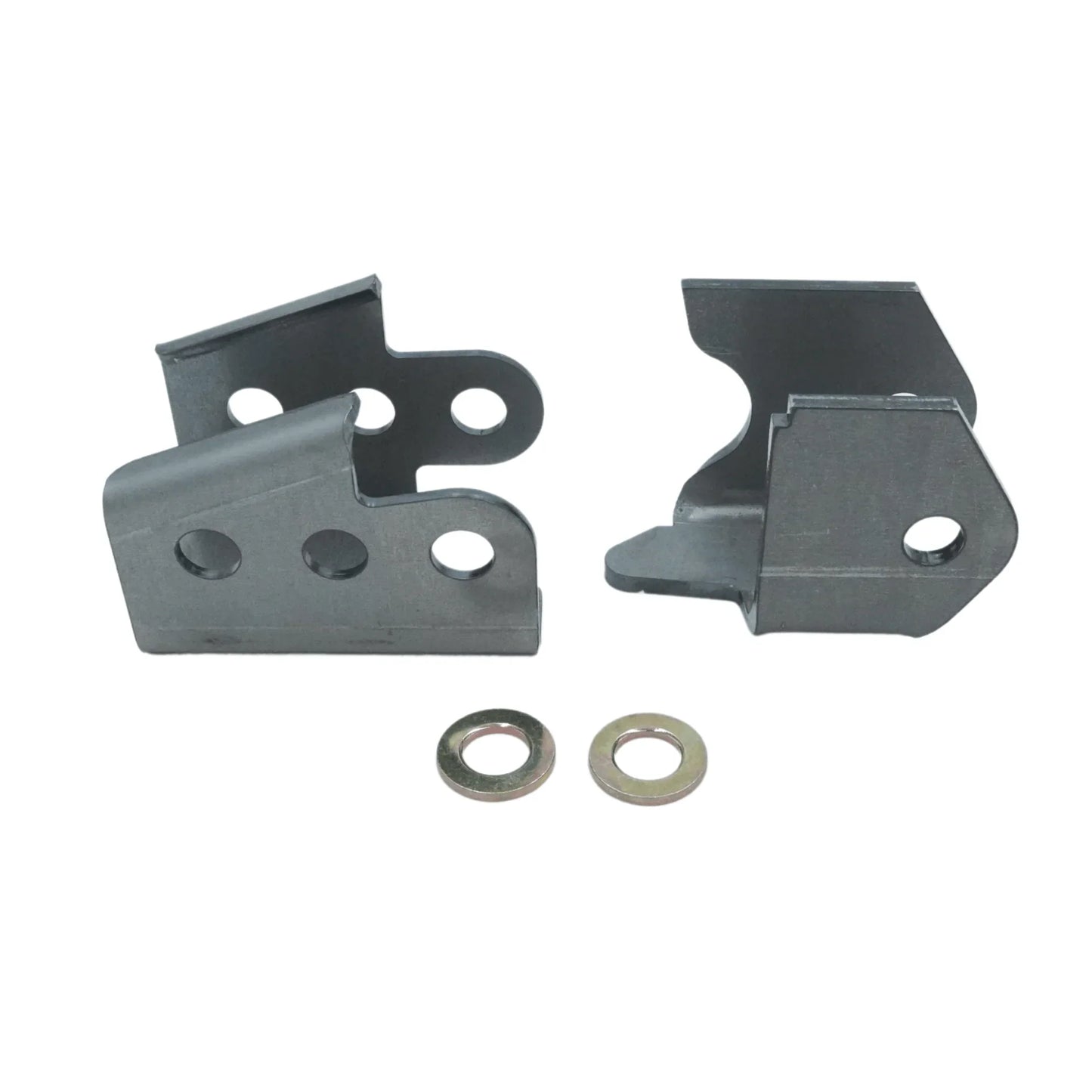

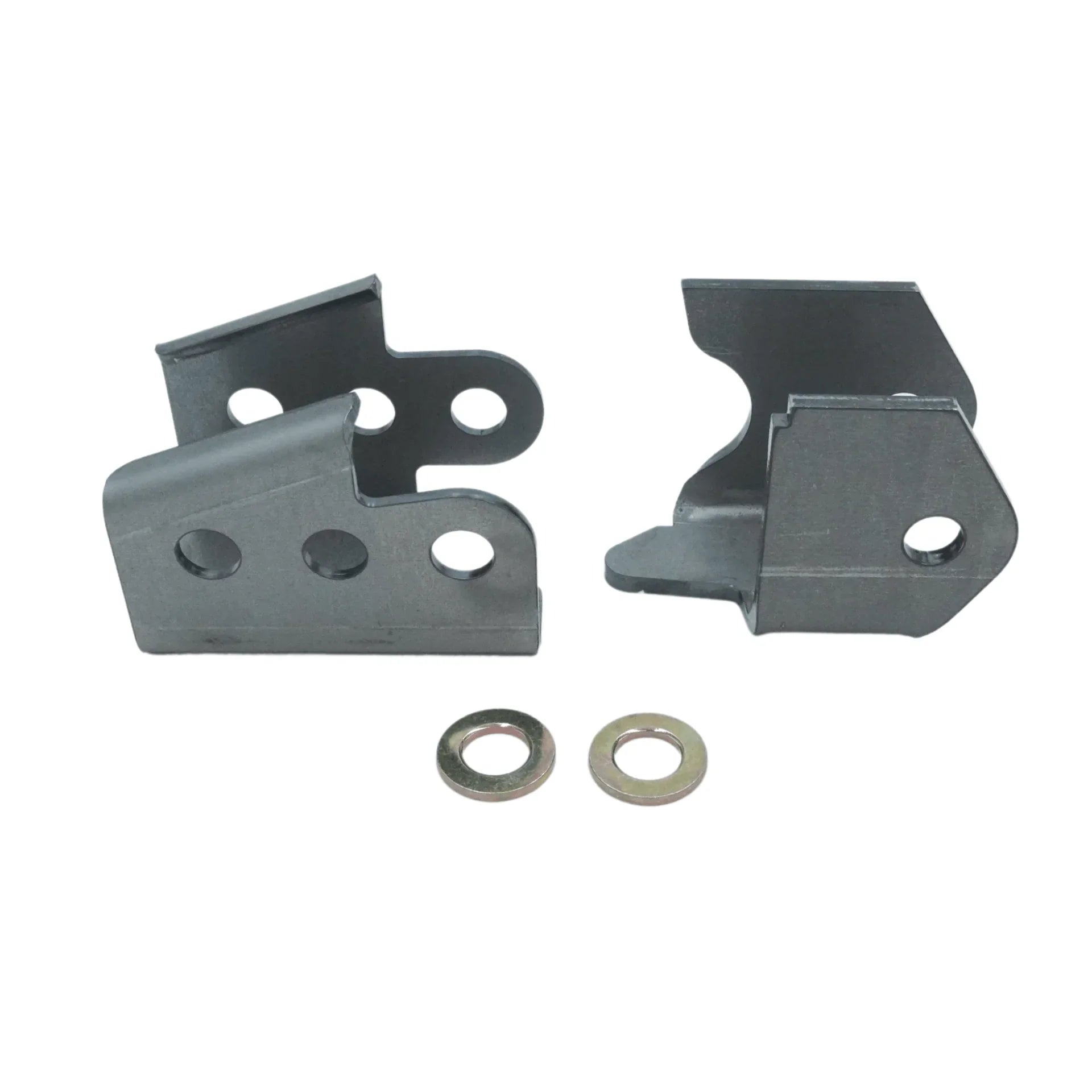

What’s Included:

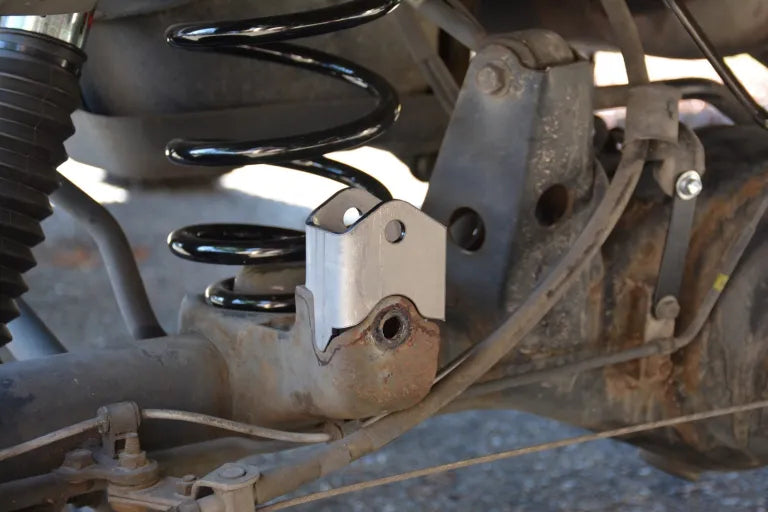

– (1) Axle-side lift bracket

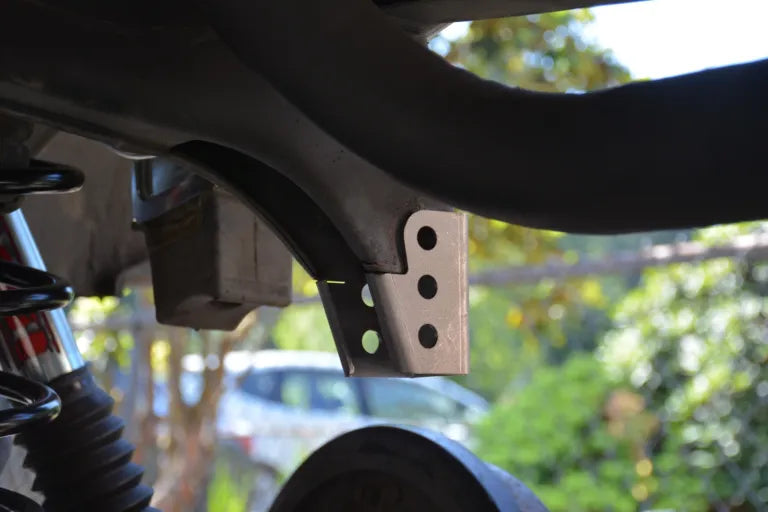

– (1) Frame-side drop bracket
– (2) 3mm hardened steel spacers
– (1) eimkeith logo decal
Notes:
Welding required for installation. Designed for use with 2–4.5" of lift. Not compatible with adjustable panhard bars intended to compensate for incorrect geometry. Factory bump stops must remain in place to ensure clearance.
