Overview:

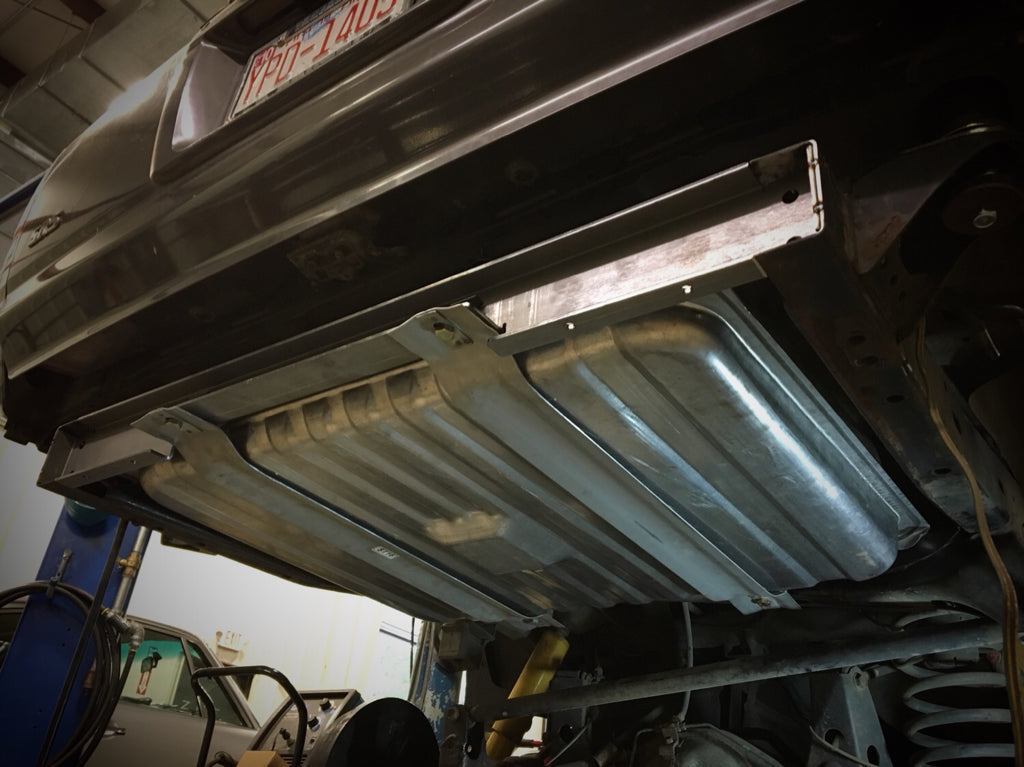

Weld-on Fuel Tank Relocation Mounts for 1996–2002 4Runner, engineered to support installation of an F150 auxiliary fuel tank in the rear spare tire location. Designed to optimize space and maintain protection between frame rails.
– Positions tank high and left for maximum clearance and protection
– Compatible with F150 auxiliary tanks for increased fuel capacity
– Designed to fit between frame rails with minimal floor modifications
– Provides exhaust clearance at front-right tank corner
– Enables physical installation independent of plumbing/wiring solutions
Specifications:
– Material: Steel
– Construction: Weld-on brackets
– Mount location: Rear frame rails (spare tire area)
– Fit optimized for 1" body lift configurations
Fitment:
1996–2002 Toyota 4Runner
What’s Included:
– (2) Fuel tank relocation mounting brackets
– (1) eimkeith logo decal
Notes:
Welding required. Designed for use with F150 auxiliary fuel tanks. Vehicles with 1" body lift require spare tire crossmember removal. Non-body-lifted vehicles may require floor rib clearancing. Wiring and plumbing not included—custom implementation required.
