Overview:

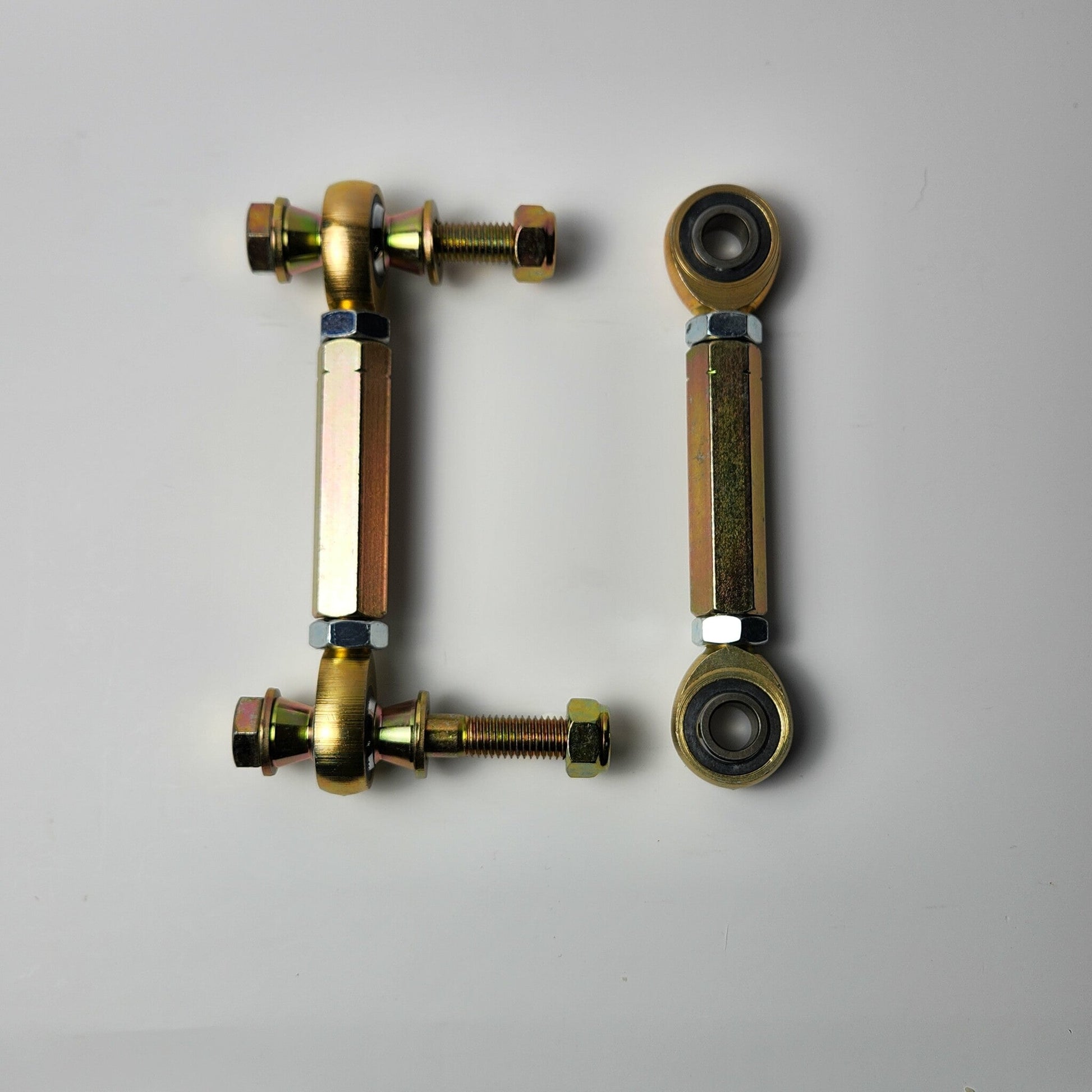

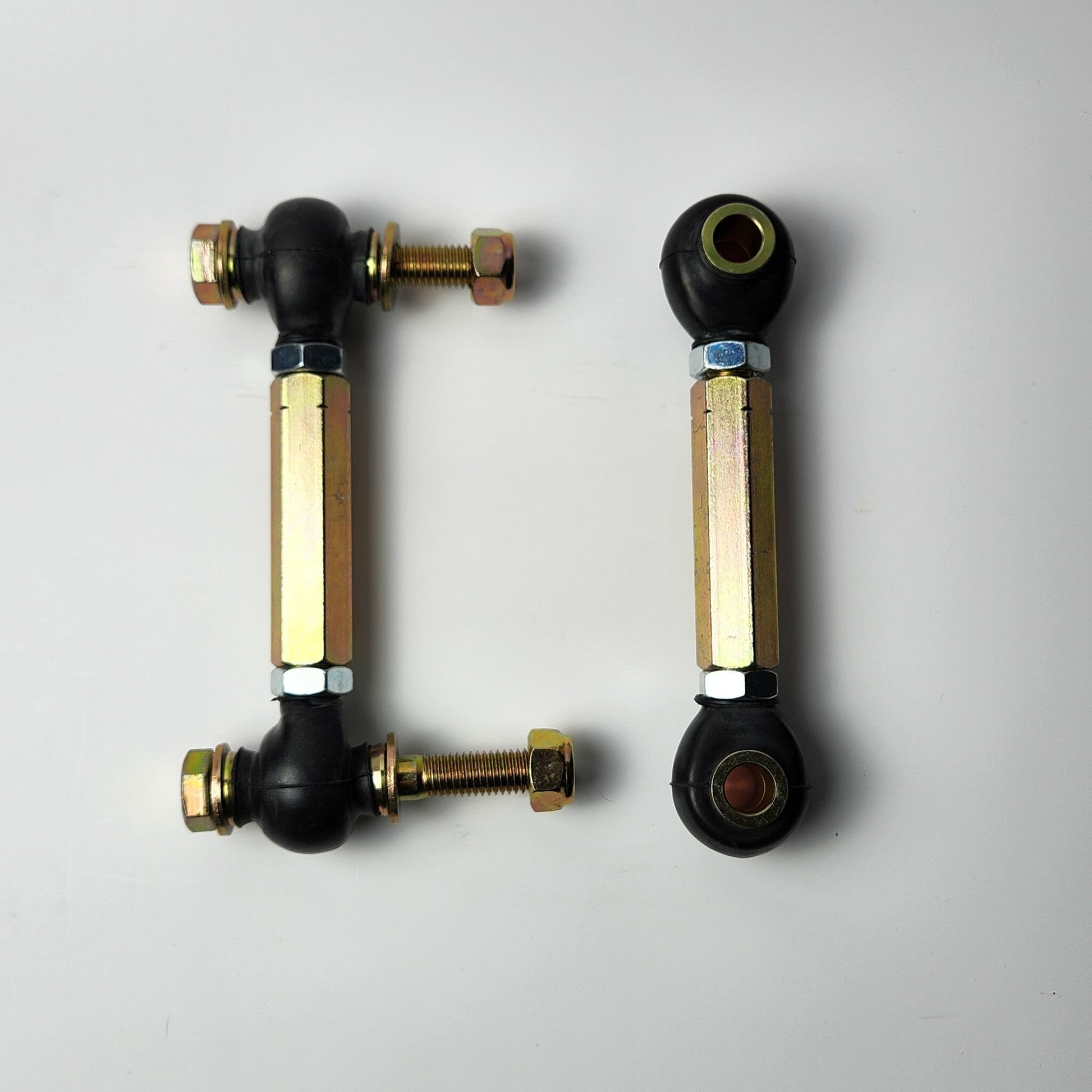

Designed for 2016-2023 Toyota Tacoma models with suspension lifts, these adjustable Heim joint sway bar links restore front-end stability and handling. Ideal for off-road applications requiring stronger, serviceable components.
– Heim joint construction improves articulation and durability
– Fully adjustable and rebuildable design
– Polyurethane bushings reduce deflection under load
– Grade 8 hardware ensures high-strength connections
– Hex tube construction with opposing threads for easy adjustment
Specifications:
– FK 3-piece Heim joints with nylon races, self-lubricating and wear-resistant
– Black polyurethane bushings
– B7 threaded studs rated to 150,000 PSI
– Drilled hex tubes with left and right-hand threads
– Grade 8 mounting hardware
– Front double Heim joints match OEM length
Fitment:
2016-2023 Toyota Tacoma
Notes:
Sold in pairs. These links require periodic maintenance; dirt can enter the joints and dry out the races. Use a PTFE dry lubricant like Tri-Flow Uniball lube to extend service life. Not compatible with 6" drop bracket lifts (Fabtech, BDS, ProComp). A sway bar relocation may be required due to the increased link size. Powder-coated hex tubes available upon request.
Downloads:
Product Instructions
