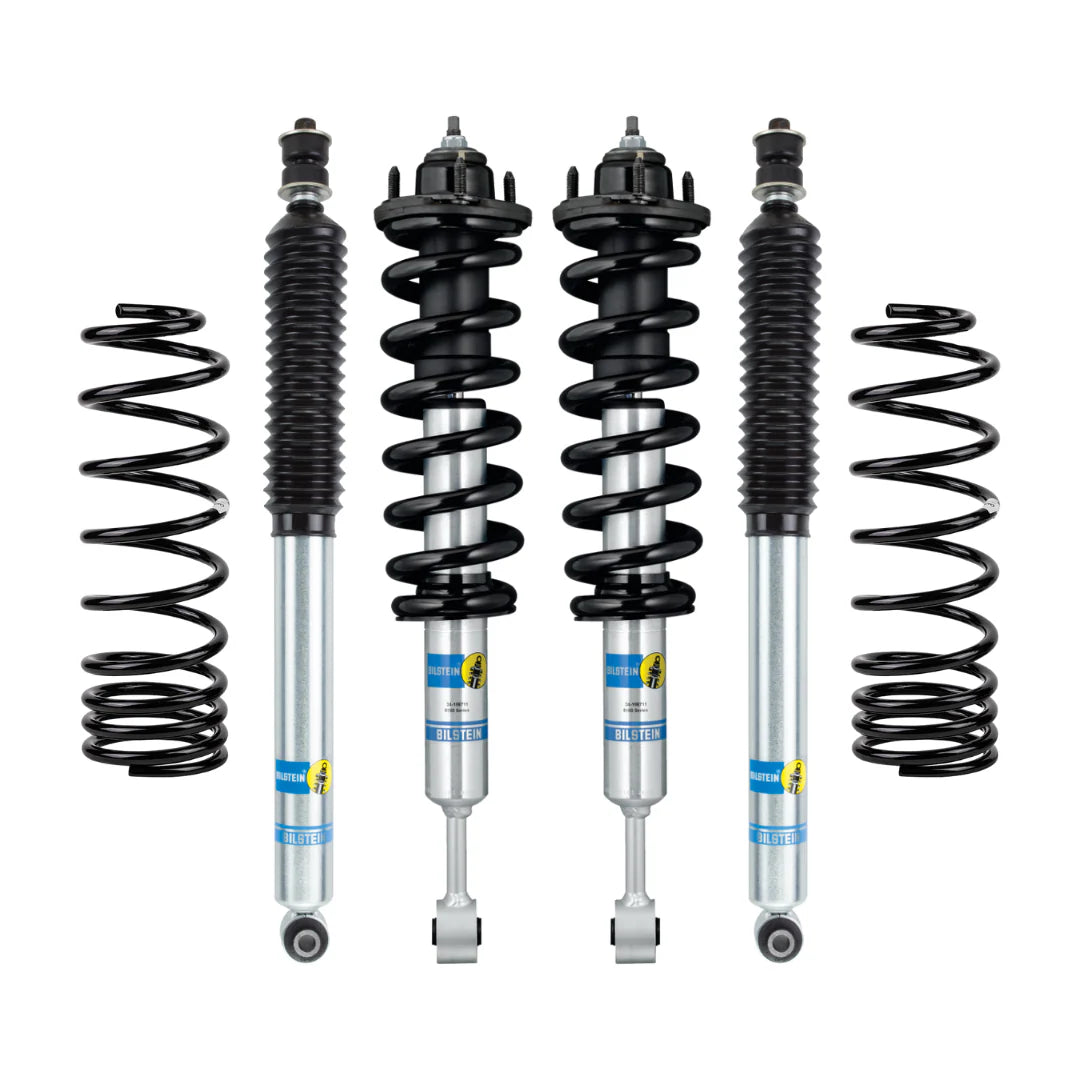

2010-2023 GX460 Bilstein 5100 Lift Kit

Kit Includes:

• (2) Front Coil Springs
• (2) Rear Coil Springs
• (2) Bilstein 5100 3-Notch Adjustable Struts
• (2) Bilstein 5100 Rear Shocks

Front Coil Options:

• 884: 1.5" front lift
• 885: 2.5" front lift 2" w/ load
• 887: 2.5" front lift w/ load

Rear Coil Options:

• 895: 2" rear lift
• 889: 3" rear lift 2.5" w/ load
• 898: 3" rear lift w/ load (2.5" w/ 400+ lbs)
• 899: 3" rear lift w/ 600+ lbs

Note: Air to coil conversion kit required on vehicles with factory air bags. Lift heights may vary depending on vehicle configuration and weight. Front struts must remain at the lowest perch to prevent damage to the springs and struts. For 2WD vehicles, lift heights may differ due to their lighter front end.
