Overview:

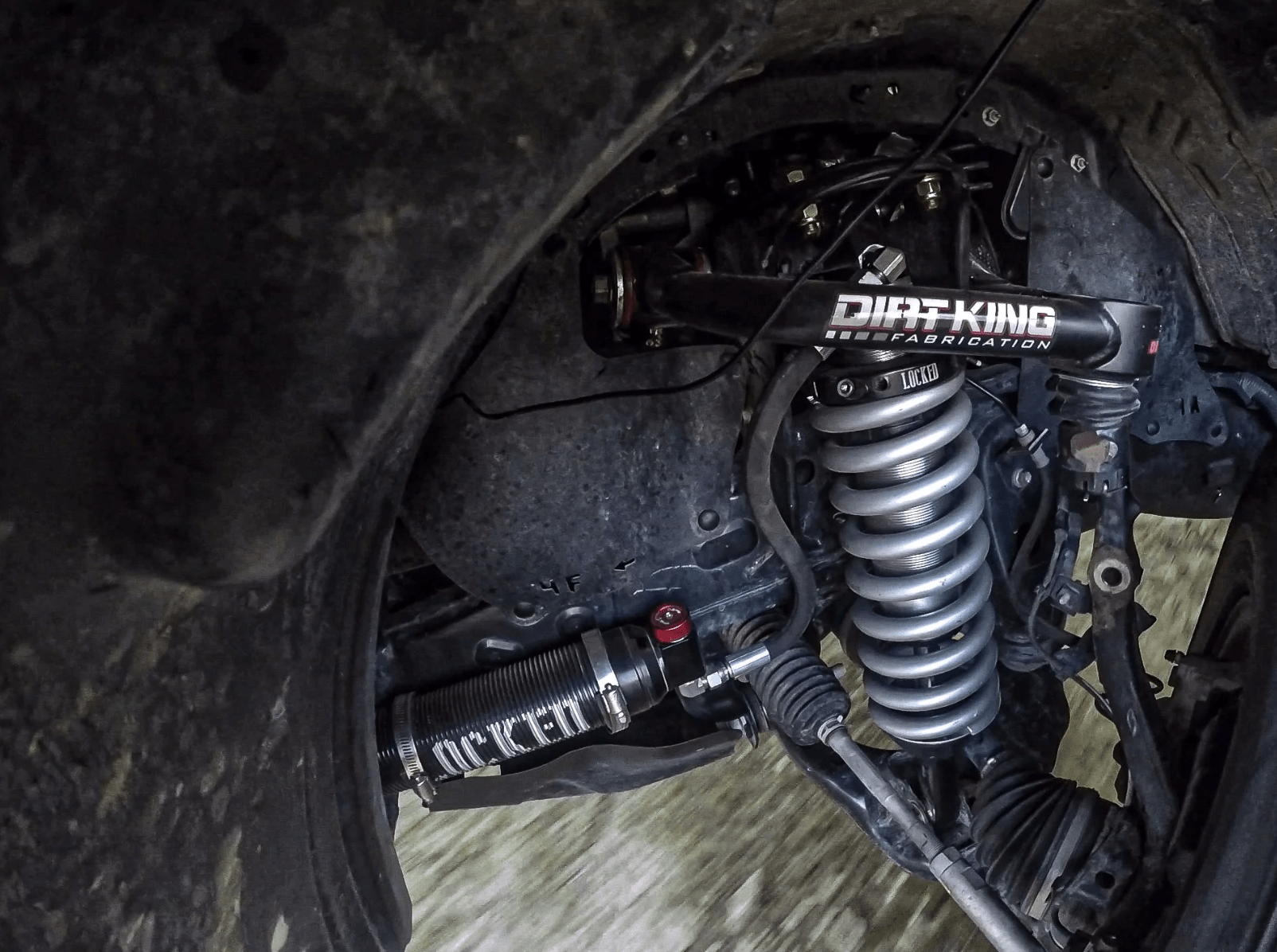

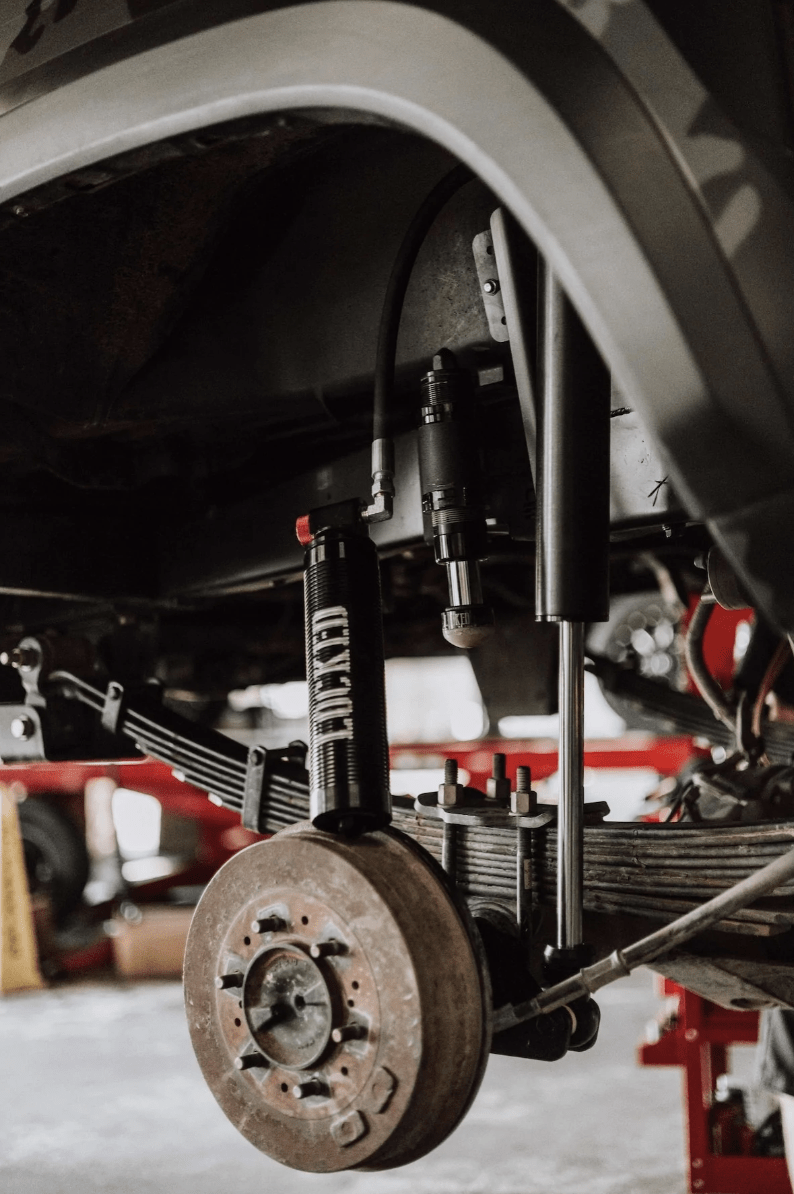

The Locked Offroad 2.5" Lift Kit for 2005–2023 Toyota Tacoma models is designed for increased wheel travel, improved off-road handling, and fully adjustable ride characteristics. Engineered for durability with a fully serviceable, bolt-on configuration.
– Increases wheel travel by up to 25% over stock
– Adjustable ride height with included spanner wrench
– 22-point compression adjusters for precise damping control
– Fully rebuildable, serviceable, and tunable
– 100% bolt-on installation
– Model-specific valving for Tacoma platforms
Specifications:
– 2.5” diameter shock bodies
– Black zinc coated steel shock bodies
– 6061 machined aluminum components with deep black anodized finish
– 4130 chromed and polished steel shafts
– Buna-N seals for long-term durability
– Nitrogen-charged monotube design
– Available front coil spring rates: 600 lb/in, 650 lb/in, 700 lb/in
Fitment:
2005–2023 Toyota Tacoma
Notes:
Aftermarket upper control arms are required. Choose coil spring rate based on front-end weight: 600 lb/in for factory load, 650 lb/in for moderate additions (≤150 lbs), and 700 lb/in for heavy setups (>150 lbs). Shock Relocation Kit is required when using 12" or 14" rear smooth body shocks. Limit straps must be used to maintain warranty coverage. Off-highway use only. Warranty: 6 months.
