Overview:

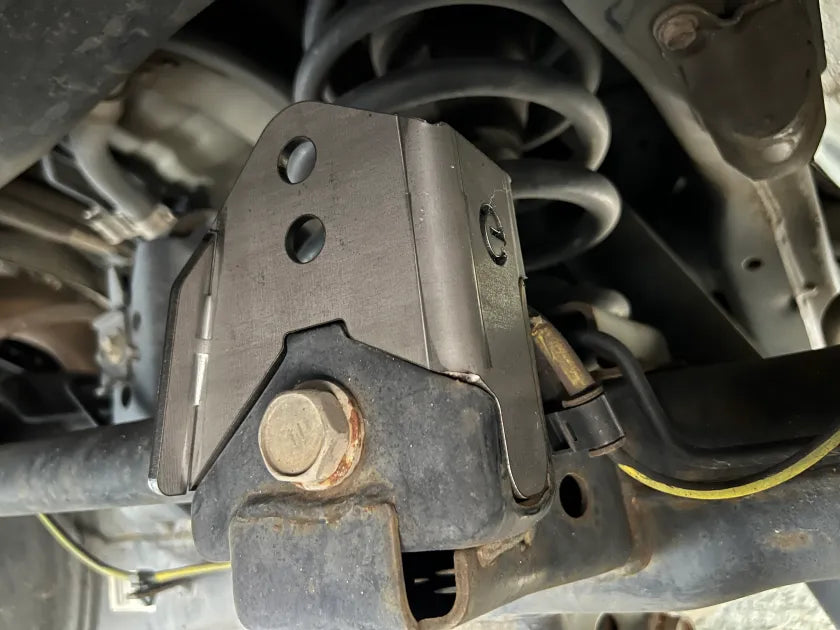

Weld-on Panhard Correction Kit for 200 Series Land Cruiser, designed to correct panhard bar geometry on 2–4.5" rear lifts. Reestablishes factory axle alignment and improves rear suspension handling without the need for an adjustable panhard bar.
– Returns panhard bar to a horizontal plane to recenter axle under lift
– Raises axle-side mounting point to improve rear roll center up to 4" lift
– Enhances rear-end stability by reducing lateral movement and body roll
– Eliminates interference under full flex with factory bump stops
– Suitable for off-road use and loaded vehicle configurations
Specifications:
– Axle-side bracket: 3/16" (0.1875") steel
– Weld-on design
– Finish: Raw steel
Fitment:
2008–2021 Toyota Land Cruiser 200 Series
What’s Included:
– (1) Axle-side lift bracket
– (1) eimkeith logo decal
Notes:
Welding required for installation. Designed for 2–4.5" of rear lift. Not compatible with adjustable panhard bars used to correct geometry. Factory bump stops must remain in place to ensure proper clearance.
