Overview:

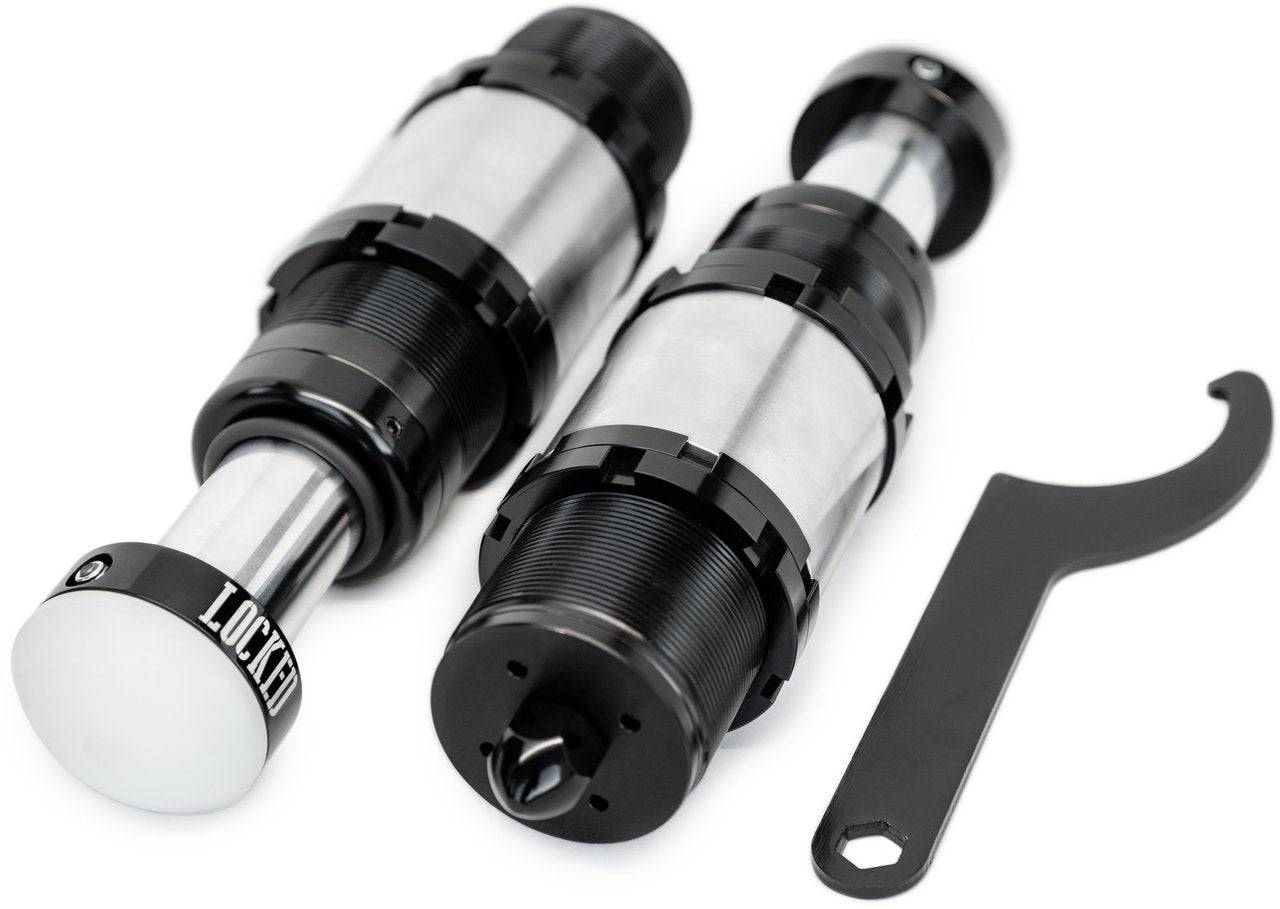

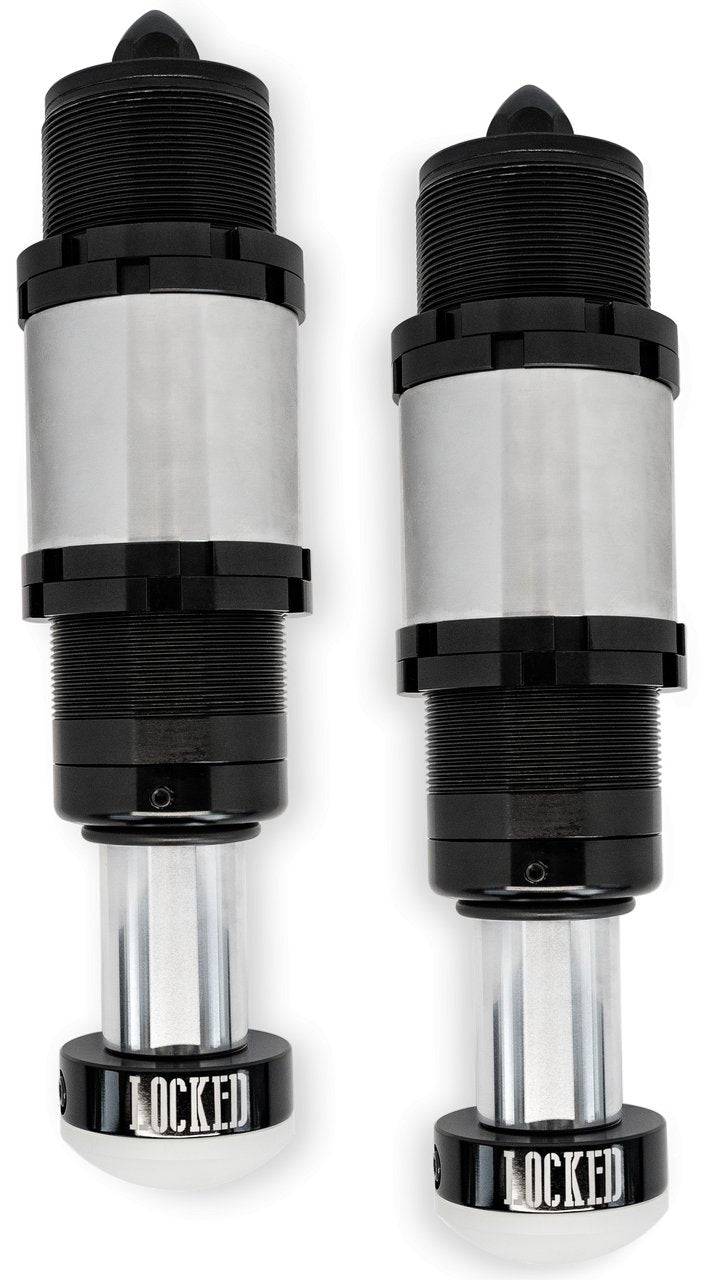

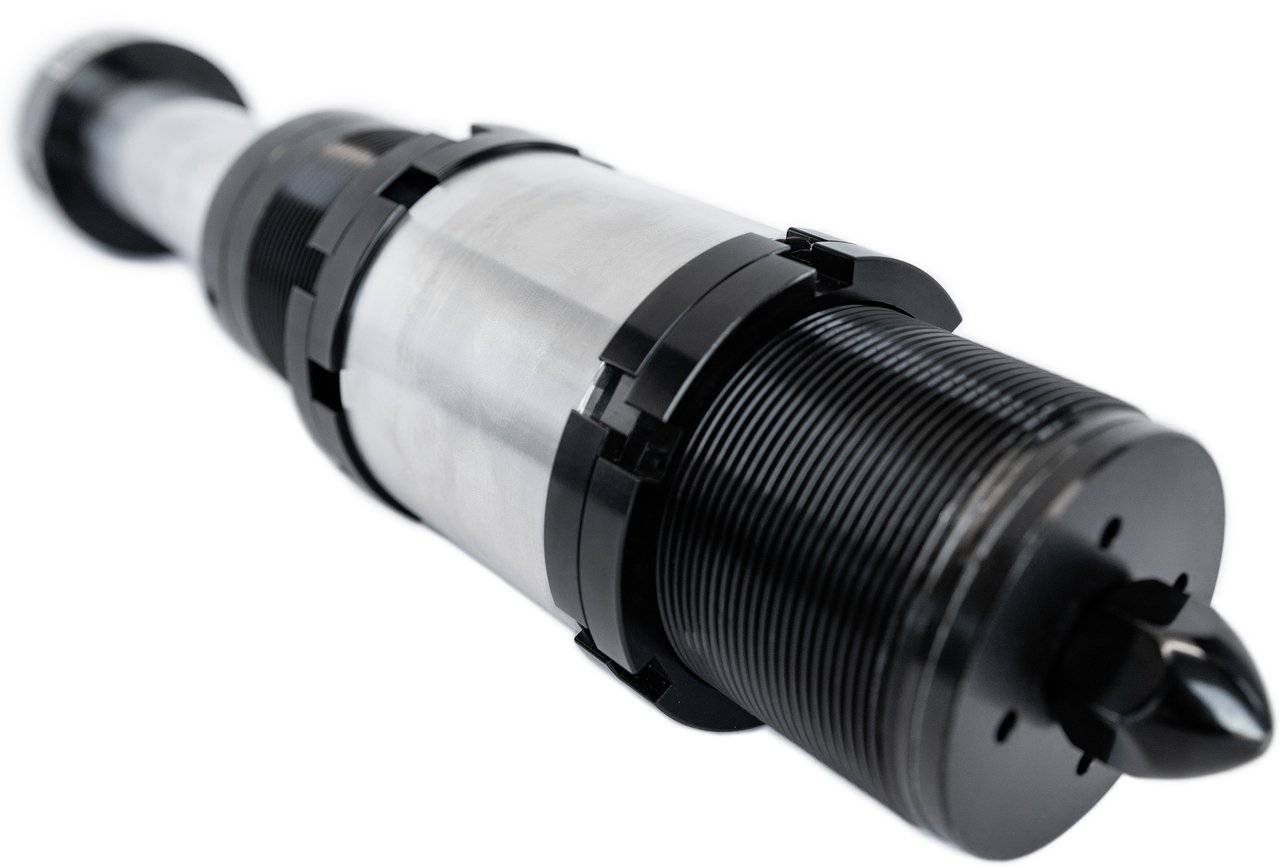

The Locked Offroad 2.5" Threaded Bump Stop Kit is engineered for high-load off-road impacts, offering smooth engagement and quiet operation. Designed with full-diameter threaded sleeves for strength, adjustability, and ease of installation.
– Threaded sleeves provide 360° contact and full adjustability
– Delrin contact pad eliminates metal-on-metal contact
– Integrated Schrader cap for sealed, moisture-resistant charging
– O-ring shaft indicator for quick visual travel reference
– Designed for high-impact off-road applications
– Sold as a complete pair
Specifications:
– 2.5” diameter shock bodies
– 1.58" hard-chromed and polished shafts
– 6061 machined aluminum components with black anodized finish
– Black zinc coated steel shock bodies
– Viton seals for heat and wear resistance
– 2.5" bump stop travel: 12.875" extended / 10.375" collapsed
– 4" bump stop travel: 14.75" extended / 10.75" collapsed
– Threaded mounting sleeves: 3.03" OD / 3.22" with lock rings
– Flush-mount Delrin pad and secure indexing pin
Fitment:
Fitment: See product title or contact support
Notes:
Sold as a pair. Includes threaded weld-on mounting sleeves and dual lock ring sets per bump stop. Threaded cans allow for weld shrinkage and prevent pinch-style failure. Designed for off-highway use only. Warranty: 1 year on non-wearable parts, 6 months on wearable parts.
