Overview:

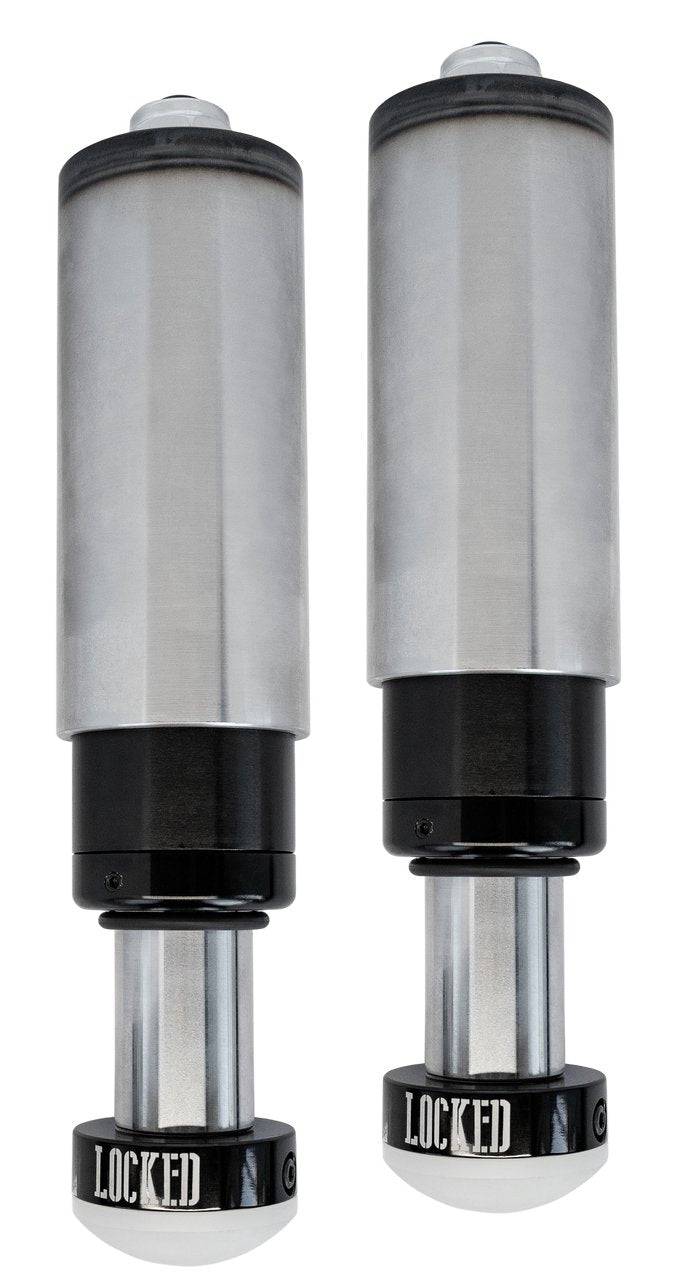

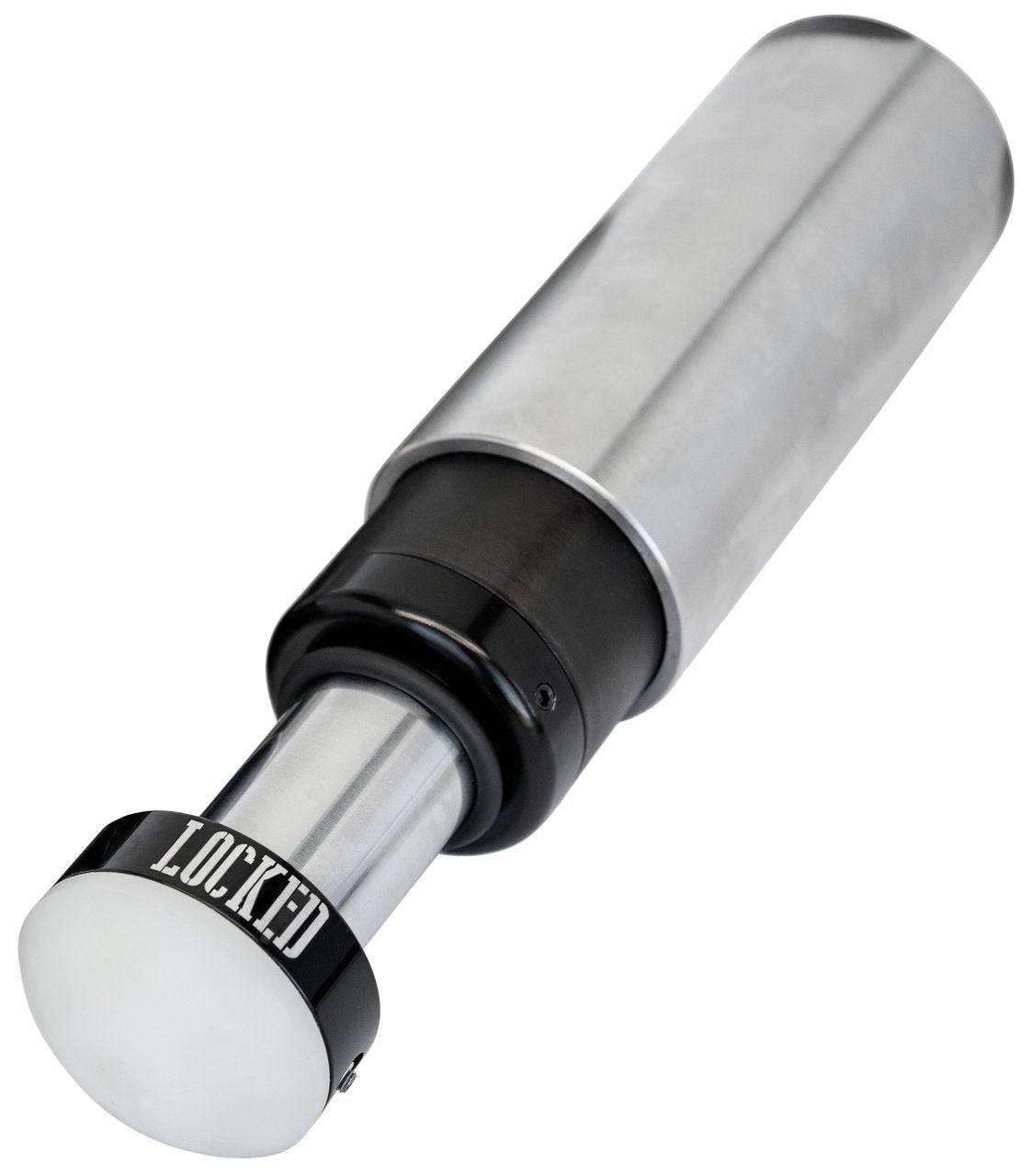

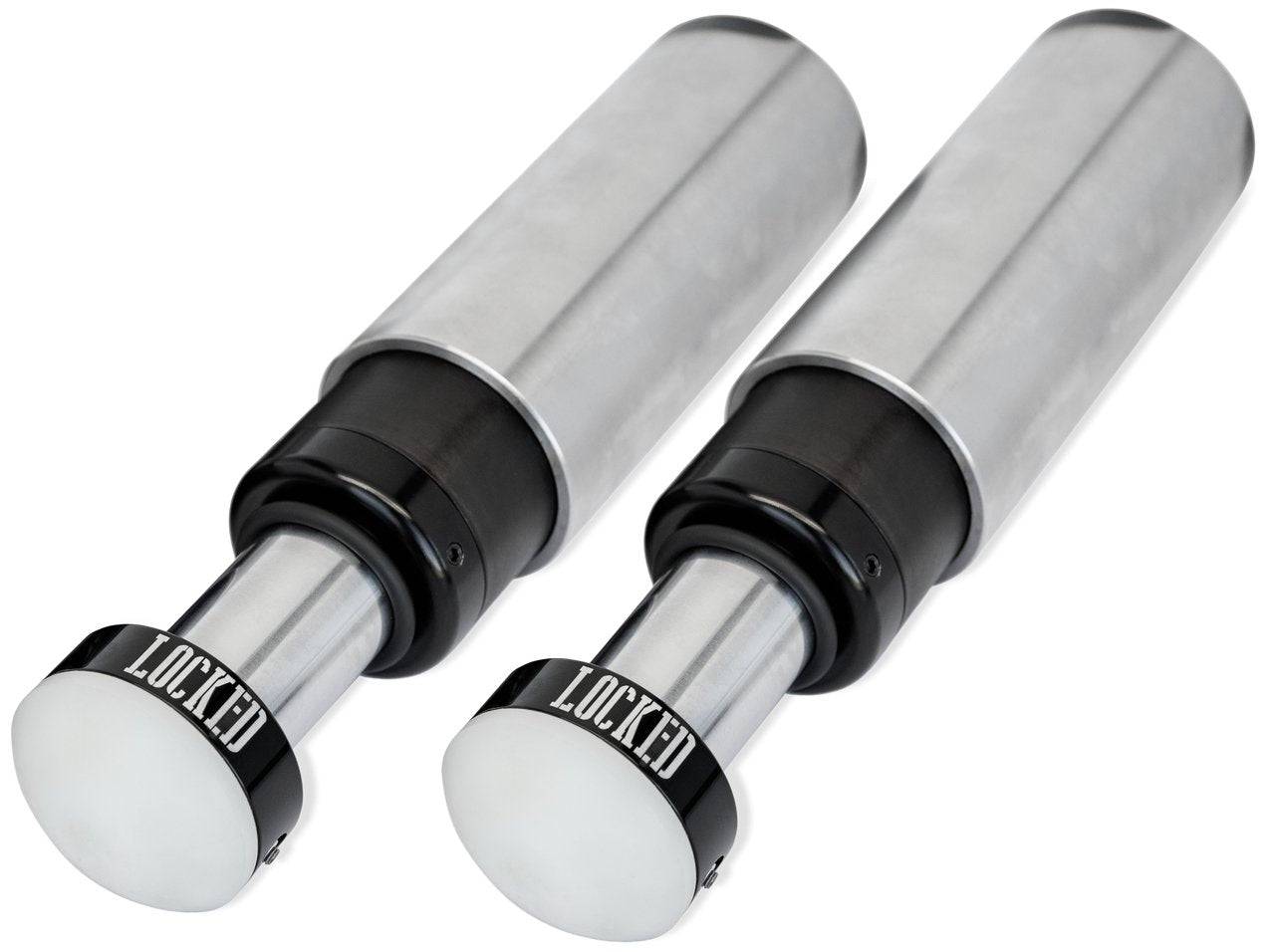

The Locked Offroad 2.5" Pin Bump Stop Kit is designed for heavy-duty off-road impacts, using a pin-style mounting sleeve for secure fitment and full 360° support. Built with high-grade materials for reliability and quiet operation under load.
– Pin-style mounting sleeves provide 360° engagement
– Delrin contact pad for quiet, metal-free impact zones
– Hard-chromed, mirror-polished shafts for seal longevity
– Schrader cap mounts directly to body for better sealing
– Includes travel indicator O-ring for visual stroke tracking
– Sold as a complete pair
Specifications:
– 2.5” diameter shock bodies
– 1.58" hard-chromed and polished shafts
– Black zinc coated steel shock bodies
– 6061 machined aluminum components with black anodized finish
– Viton seals for heat and wear resistance
– 2.5" bump stop: 13.5" extended / 11" compressed
– 4" bump stop: 15.5" extended / 11.5" compressed
– Weld-on pin-style cans with laser-cut indexing holes
– Sleeves designed for weld shrinkage and precise alignment
Fitment:
Fitment: See product title or contact support
Notes:
Sold as a pair. Includes weld-on pin-style sleeves. Compatible threaded mounting sleeves available separately. For off-highway use only. Warranty: 1 year on non-wearable parts, 6 months on wearable parts.
