Overview:

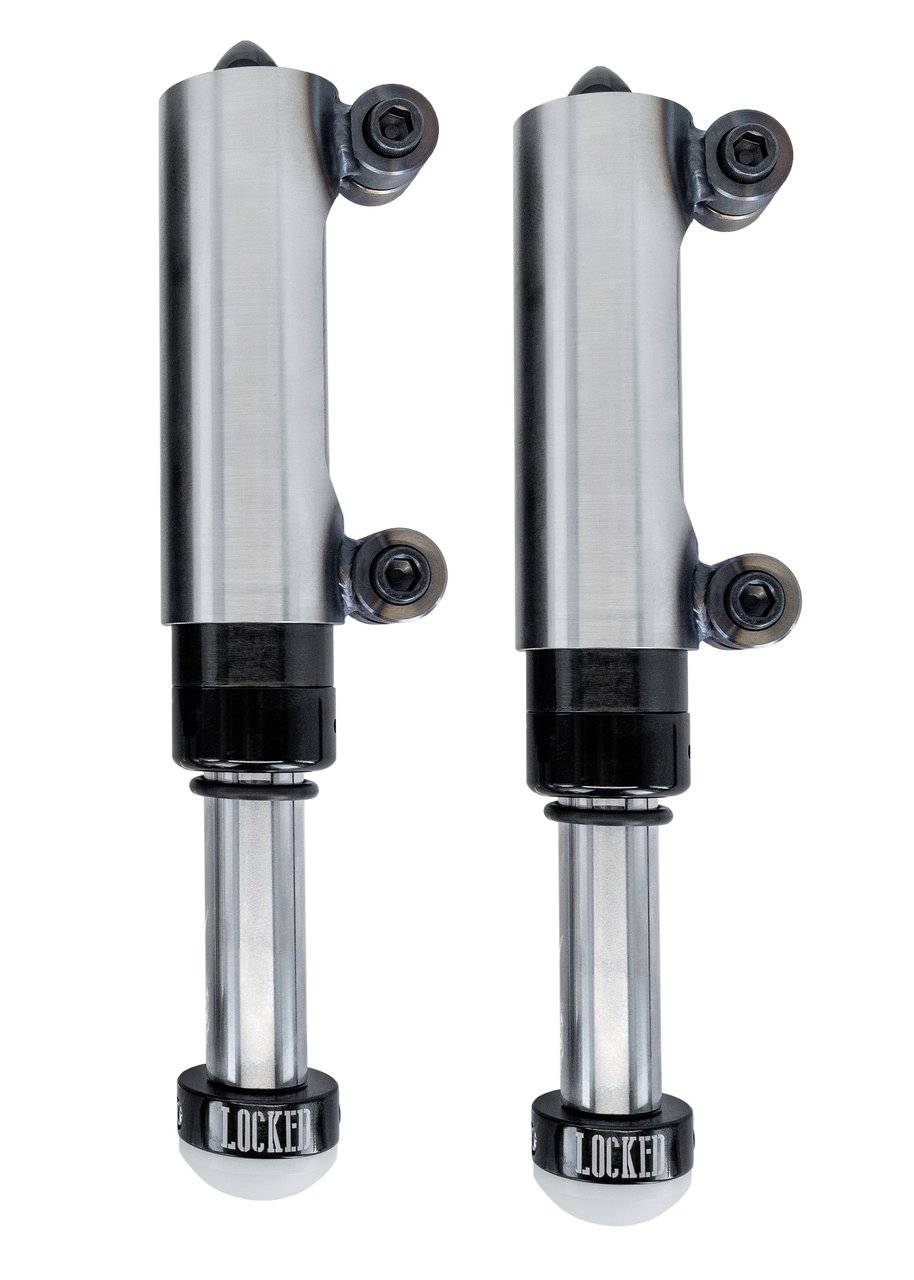

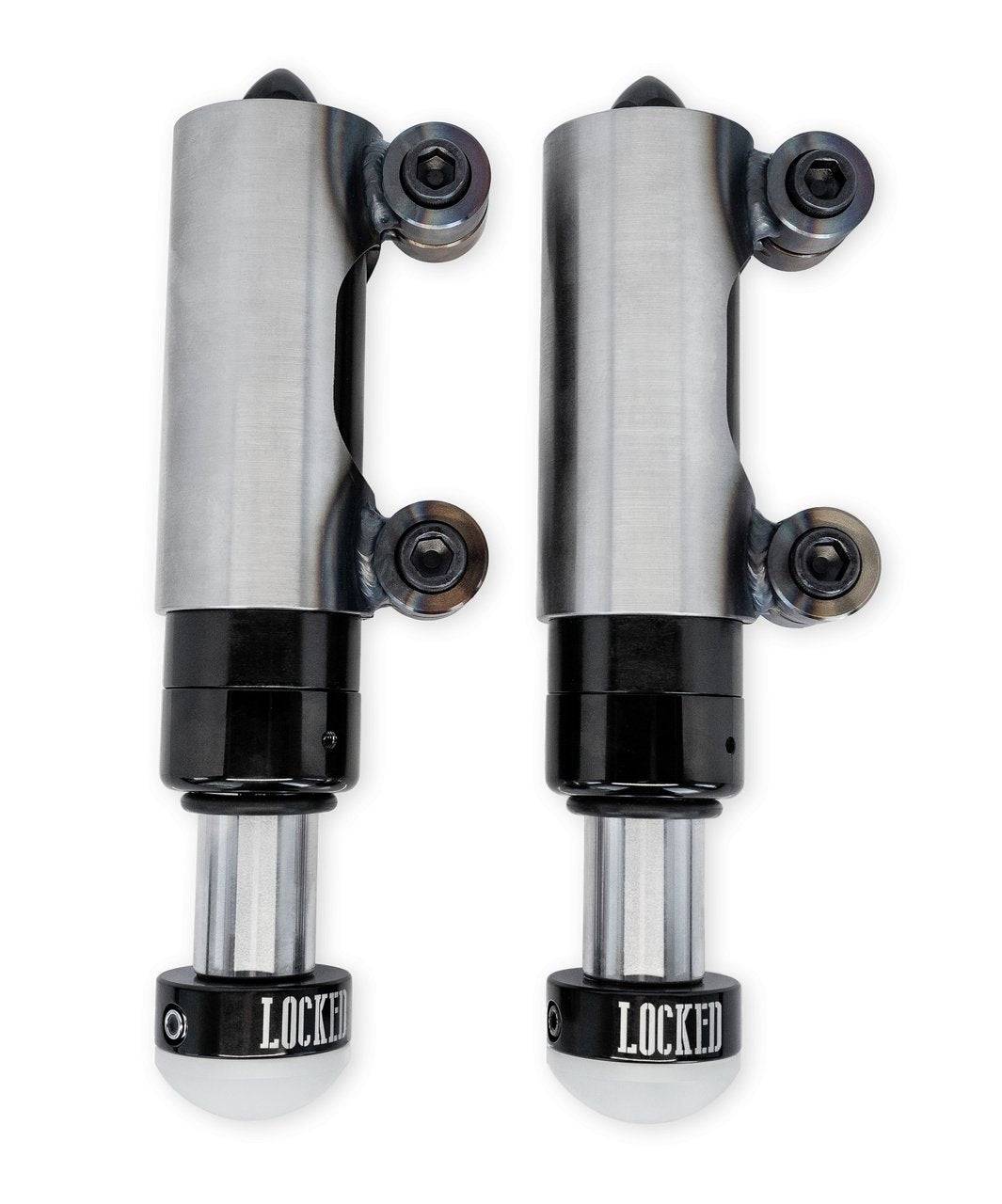

The Locked Offroad 2.0" Pinch Bump Stop Kit is a fully rebuildable hydraulic bump stop system built for compact installations and aggressive off-road impacts. Featuring pinch-style weld-on sleeves and internal pressure adjustability.
– Fully rebuildable with adjustable nitrogen and oil volume
– Delrin contact pad for quiet, cushioned bump engagement
– Compact pinch-style sleeves for tight packaging requirements

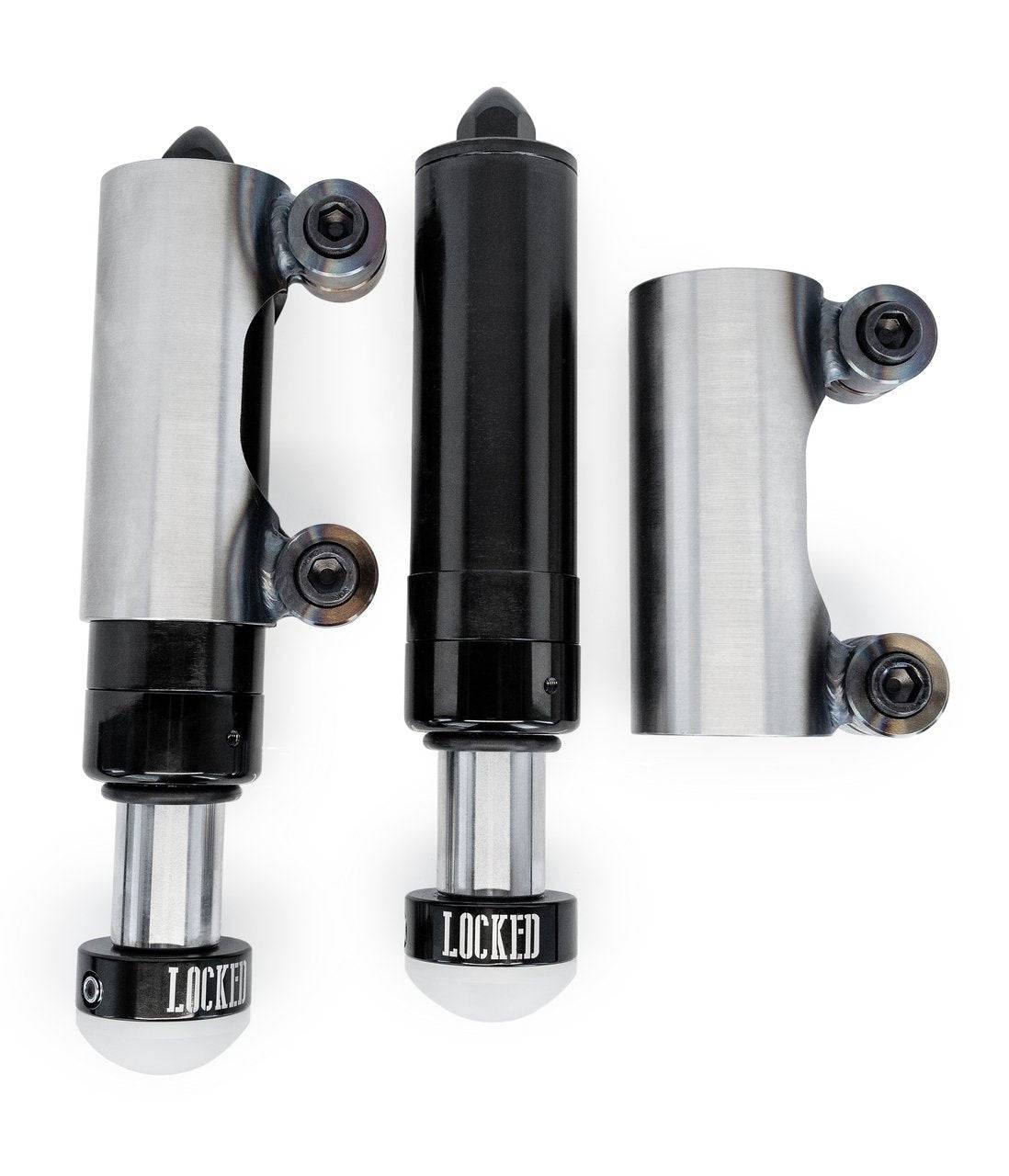

– Includes heavy-duty weld-on mounting sleeves
– Sold as a pair
Specifications:
– 2.0” diameter shock bodies
– 1.26" hard-chromed and mirror-polished shafts
– Black zinc coated steel shock bodies
– 6061 machined aluminum components with black anodized finish
– Viton seals for durability under high temperatures
– 2" stroke: 11.25" extended / 9.25" compressed
– 4" stroke: 14.875" extended / 10.87" compressed
– Pinch-style weld-on sleeves: 2.34" (side-to-side) x 3.5" (front-to-back)
– Shaft-mounted O-ring for travel indication
– Schrader cap integrated into body for sealed charge port
Fitment:
Fitment: See product title or contact support
Notes:
Sold as a pair. Includes weld-on pinch-style sleeves. Designed for off-highway use only. Warranty: 1 year on non-wearable parts, 6 months on wearable parts.
