Overview:

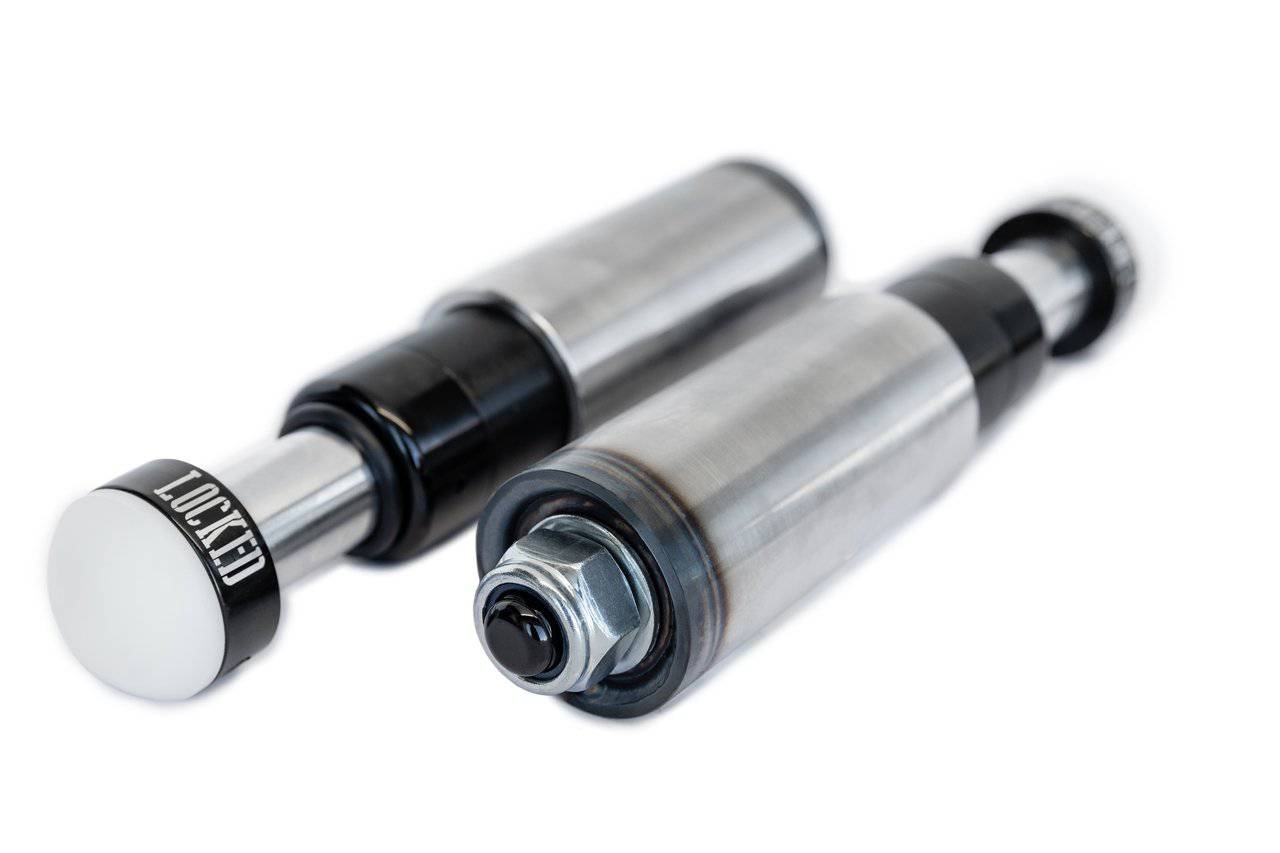

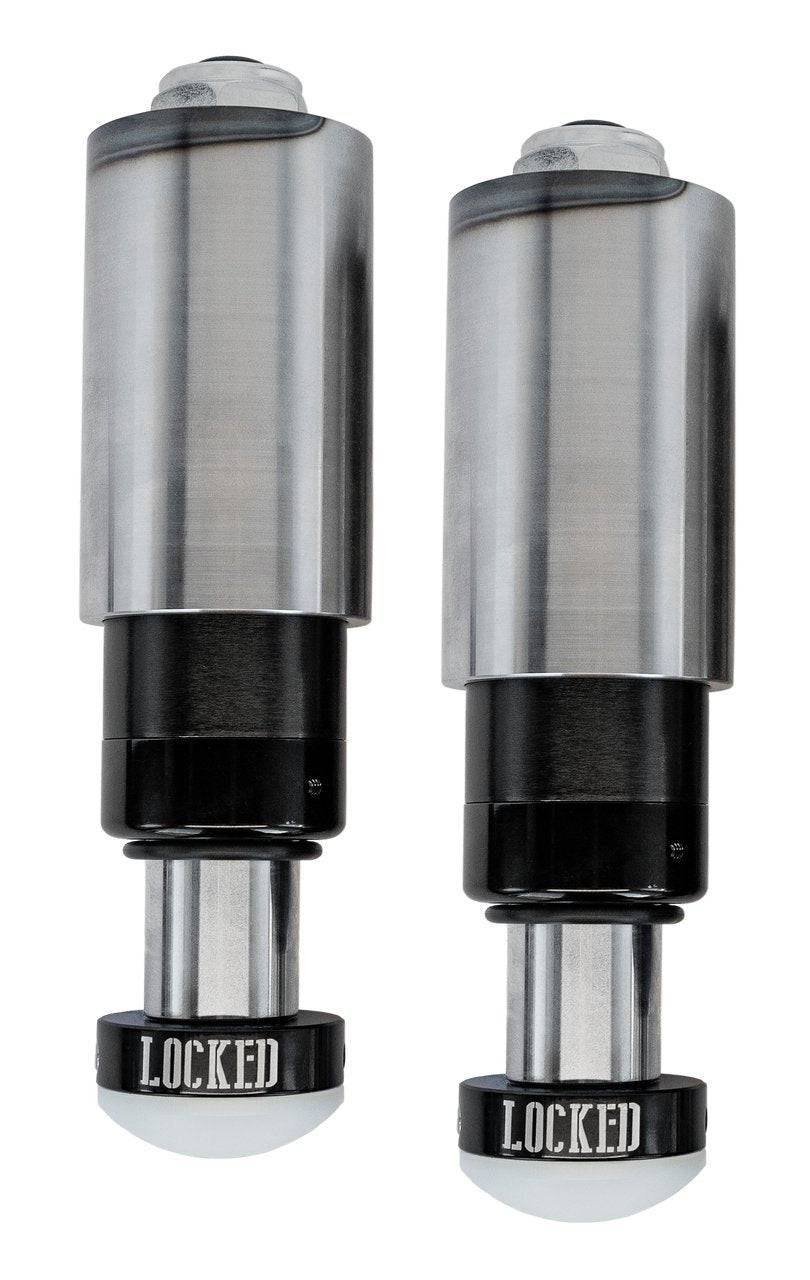

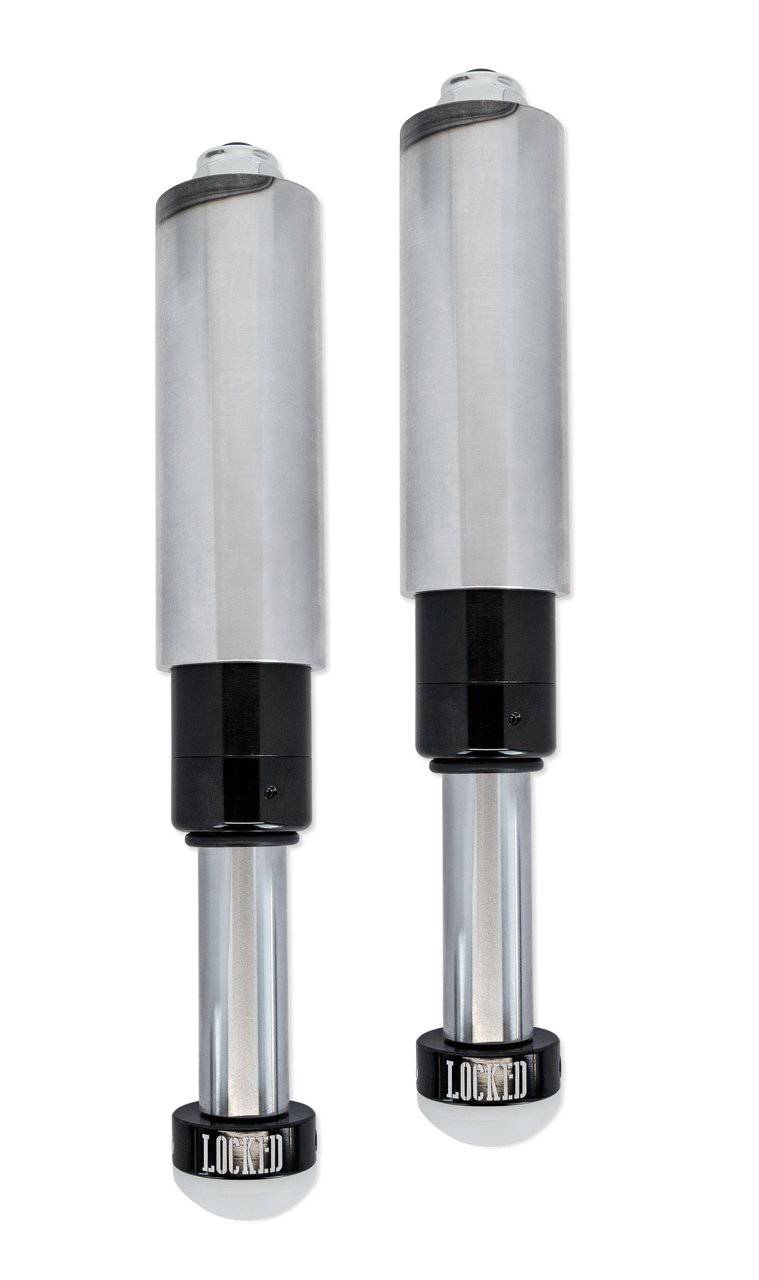

The Locked Offroad 2.0" Pin Bump Stop Kit provides compact, high-performance hydraulic bump absorption with fully rebuildable construction. Available in 2" and 4" travel options, these bump stops are built for controlled deceleration in aggressive off-road environments.
– Fully rebuildable with adjustable oil volume and nitrogen pressure
– Compact design ideal for limited space applications
– Delrin contact pad for quiet, no-metal-impact operation
– Includes heavy-duty weld-on pin-style sleeves
– Sold as a pair
Specifications:
– 2.0” diameter shock bodies
– 1.26" hard-chromed and mirror-polished shafts
– Black zinc coated steel shock bodies
– 6061 machined aluminum components with black anodized finish
– Viton seals for high-temperature durability
– 2" stroke: 11.75" extended / 9.75" compressed
– 4" stroke: 15.5" extended / 11.5" compressed
– Pin-style weld-on sleeves: 2.44" outer diameter
– Laser-cut indexing holes for precise alignment
– Schrader valve cap integrated into body for clean sealing
– Shaft-mounted O-ring for stroke travel indication
Fitment:
Fitment: See product title or contact support
Notes:
Sold as a pair. Includes pin-style weld-on sleeves. Designed for off-highway use only. Warranty: 1 year on non-wearable parts, 6 months on wearable parts.
