Overview:

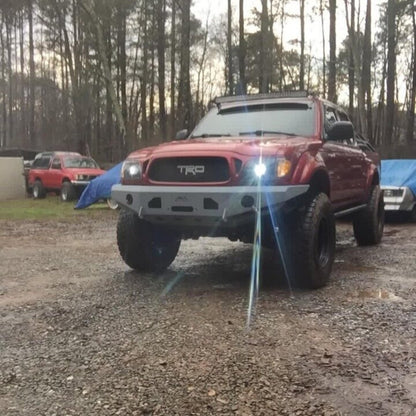

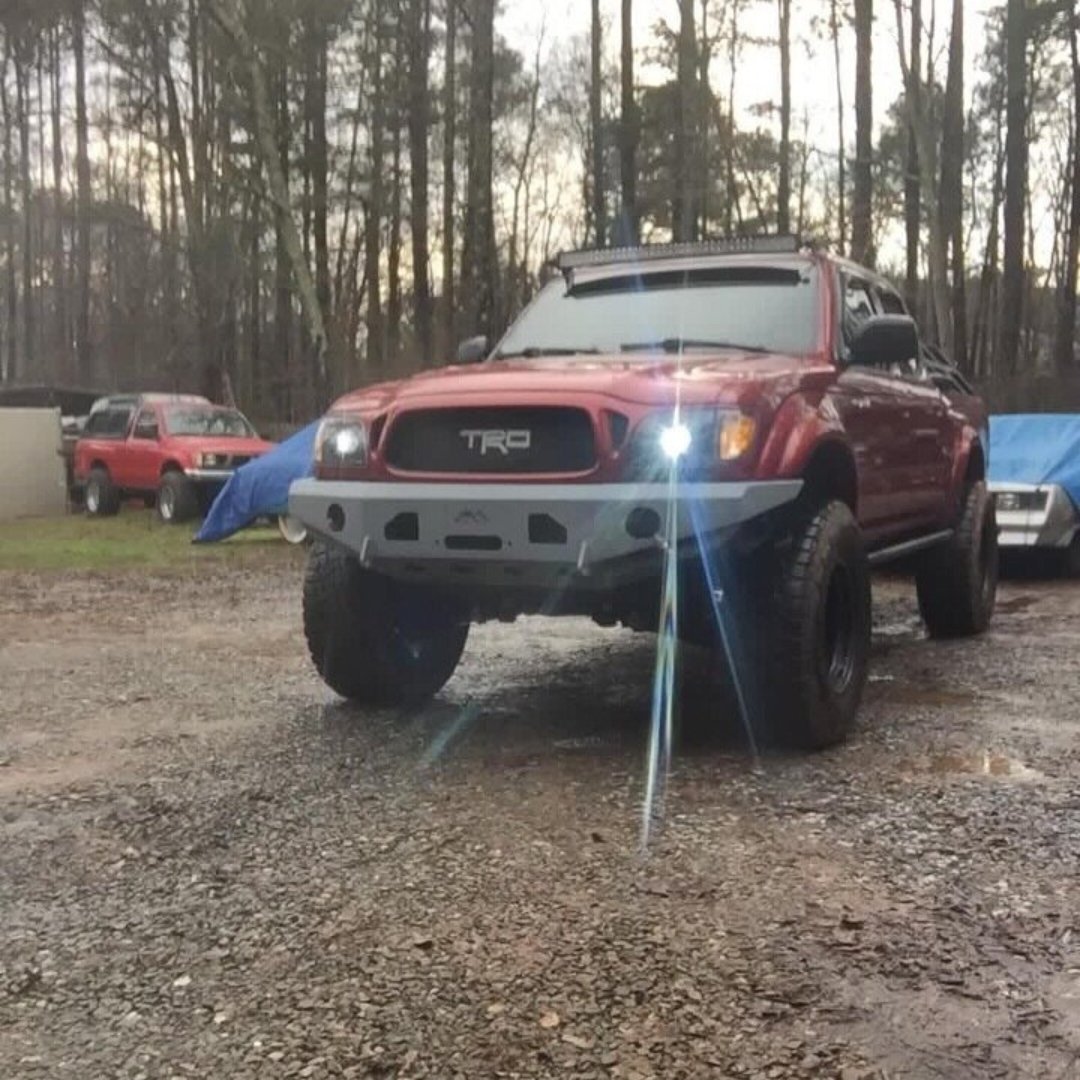

The 1996–2004 Toyota Tacoma Plate Front Bumper is a fully welded, high-strength steel bumper built for aggressive off-road use. Its fully enclosed plate design maximizes protection while offering integrated functionality and a precise, bolt-on fit.
– Fully boxed plate design maximizes durability
– High-clearance layout enhances approach angles
– CAD-modeled for direct fitment
– Integrated winch and auxiliary light mounts
– Adjustable oversized frame mounts

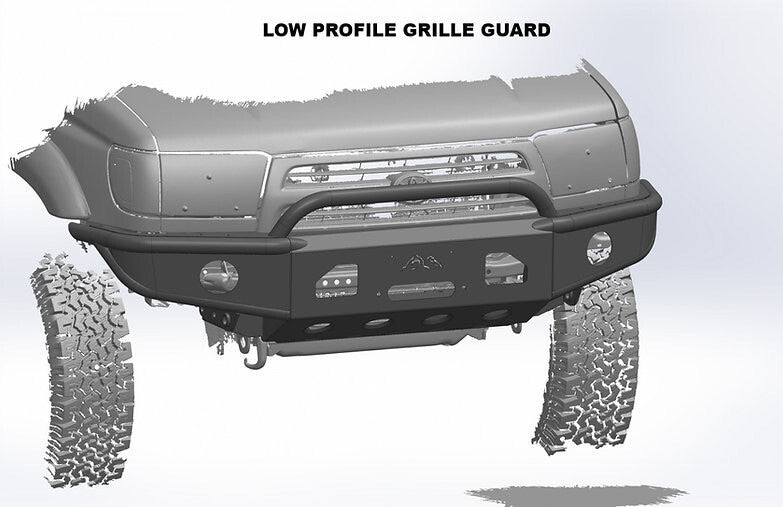

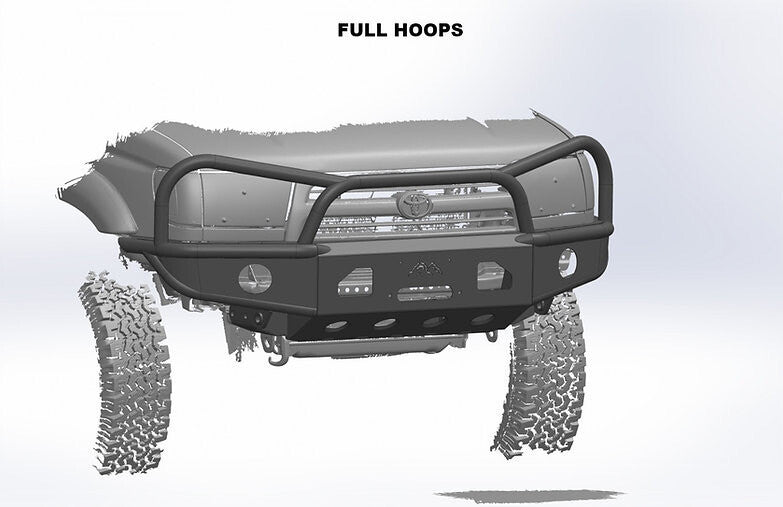

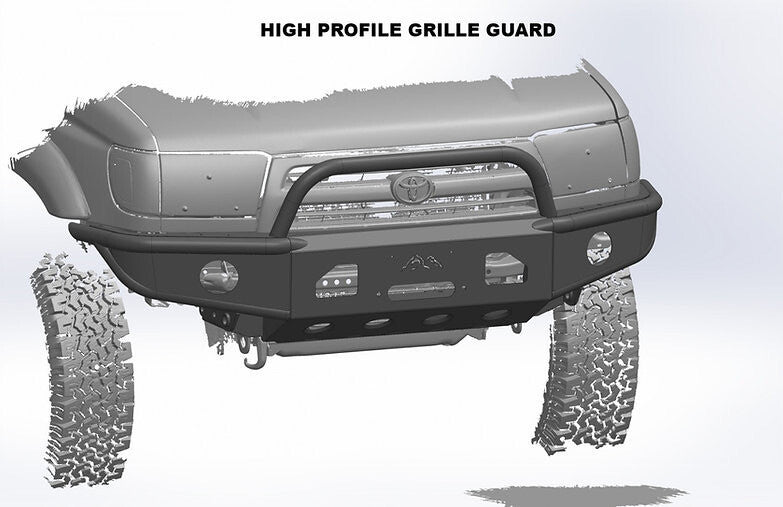

– Compatible with optional grille guard tubing
Specifications:
– Frame mounting plate, winch plate, vertical and skid supports: 7-gauge HRPO steel
– Shackle mounts: 1/2" steel with 1" hole
– Sheet metal components: 11-gauge HRPO steel
– Tubing: 1.75" OD 11-gauge ERW steel
– Winch mount: 10" x 4.5" (Warn M8000 compatible)
– Weight: ~90 lbs. (varies with tubing options)
Fitment:
1996–2004 Toyota Tacoma
Notes:
This is a pre-fabricated, fully welded bumper ready for immediate installation. Requires trimming 2 inches off the frame rails for optimal fit—this does not affect frame integrity. Clean and coat the trimmed area to prevent rust. Includes 3/4" aluminum spacers and extended M12 hardware for 2001–2004 Tacoma compatibility. Fits 1996–2000 Tacomas with possible gap or trimming required; untested in-house. Not compatible with body lifts. Intended for off-road use only.
