Overview:

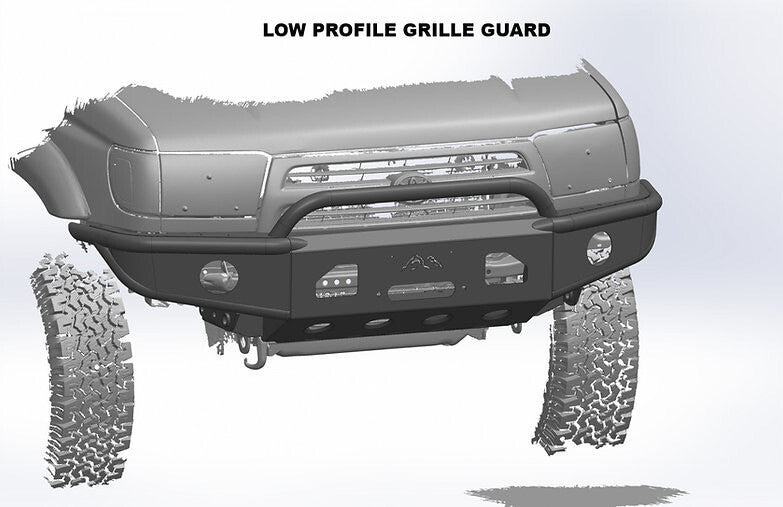

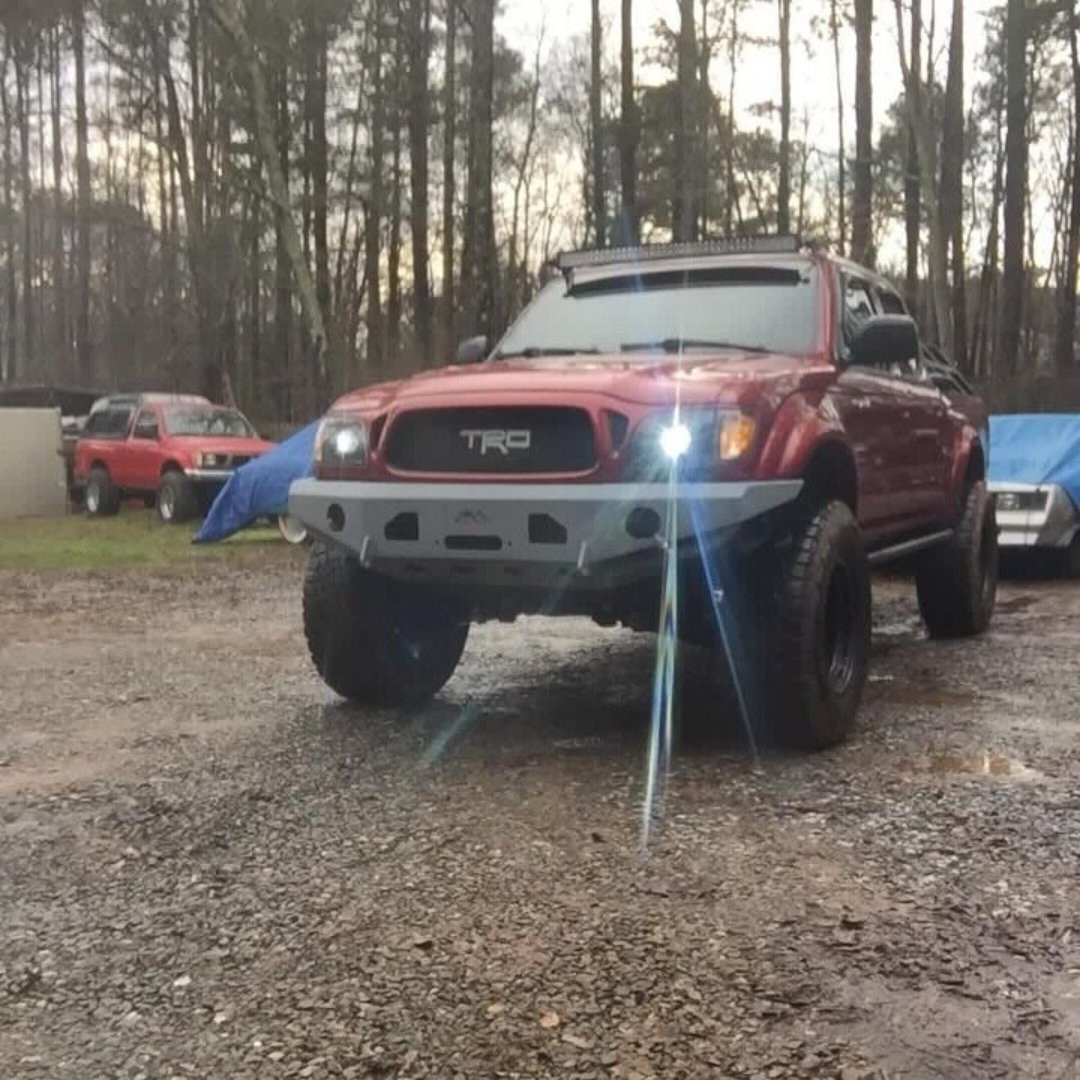

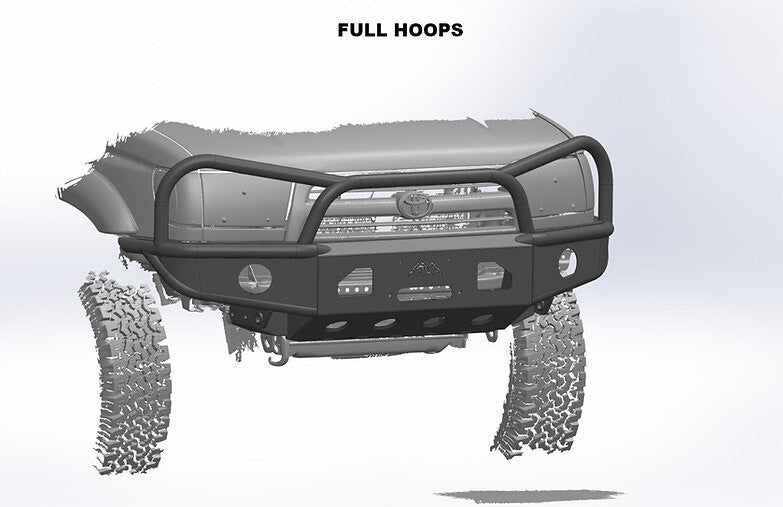

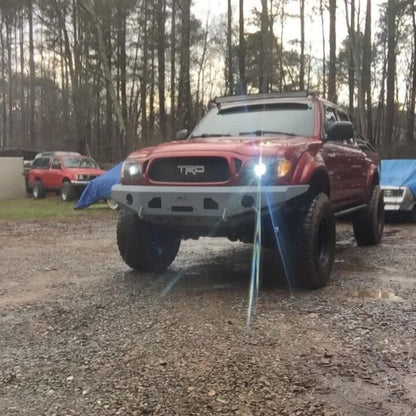

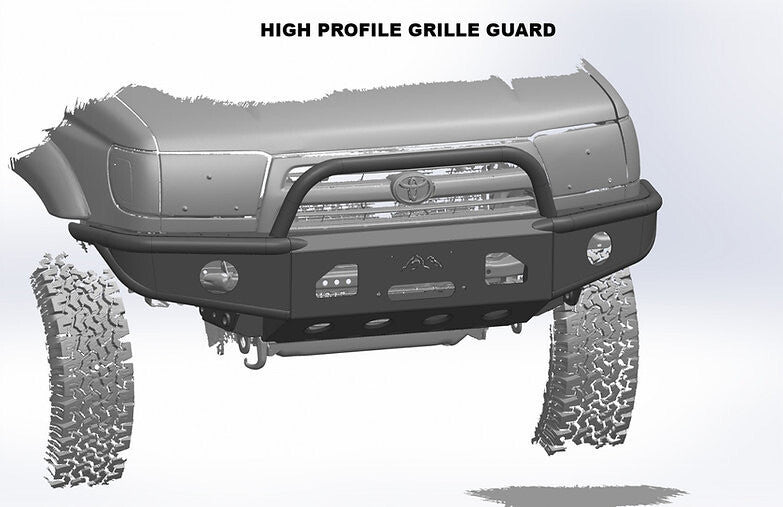

The Plate Front Bumper DIY Kit for 1st Gen Tacomas is a full-width, weld-it-yourself bumper that offers aggressive styling, high-strength protection, and integrated winch support. Built from laser-cut steel and designed for off-road durability.
– Fully enclosed steel shell with integrated winch and light mounts
– Tabbed and slotted for quick, accurate DIY welding
– Optimized fitment for both 3rd Gen 4Runners and late 1st Gen Tacomas
– Oversized mounts and included spacers for frame adaptability
– Winch-compatible with centered fairlead design
Specifications:
– Frame mount, winch plate, skid/vertical supports: 7-gauge HRPO steel
– Shackle mounts: 1/2" HR steel with 1" hole
– Panels: 11-gauge HRPO steel
– Tubing: 1.75" OD 11-gauge ERW (grille tubing optional and uncoped)
– Winch mount: 10" x 4.5", centered fairlead
– Weight: ~90 lbs (plus grille guard tubing if added)
Fitment:
2001–2004 Toyota Tacoma
Compatible with 1996–2000 models (gap possible; may require trimming)
Notes:
DIY kit requires welding. Not compatible with body lifts without visible gap. Includes 3/4" spacers and M12 hardware for Tacoma installation. All models require trimming 2" from front frame rails. Surface imperfections may occur from shipping. For off-road use only.
