Overview:
The 1996–2004 Toyota Tacoma Open Wing Hybrid Front Bumper is a pre-fabricated, high-clearance bumper engineered for aggressive off-road use. Its open-wing hybrid design maximizes approach angles and reduces weight while maintaining structural integrity.
– Open-wing configuration improves approach angle and reduces weight
– Hybrid construction provides strength without bulk
– CAD-modeled for precise alignment and fit
– Integrated winch and auxiliary light mounts
– Oversized frame mounts allow for adjustable fitment

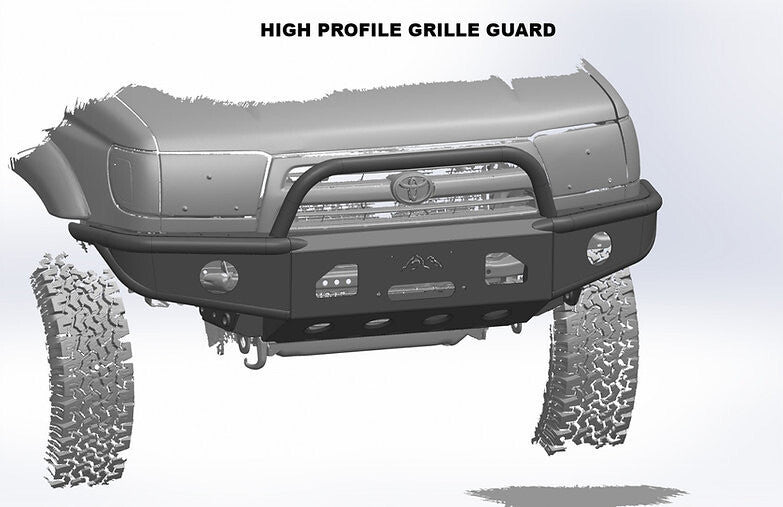

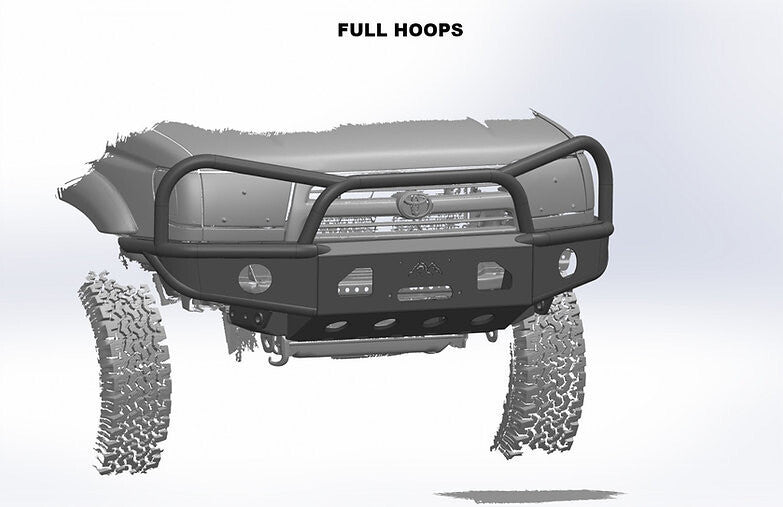

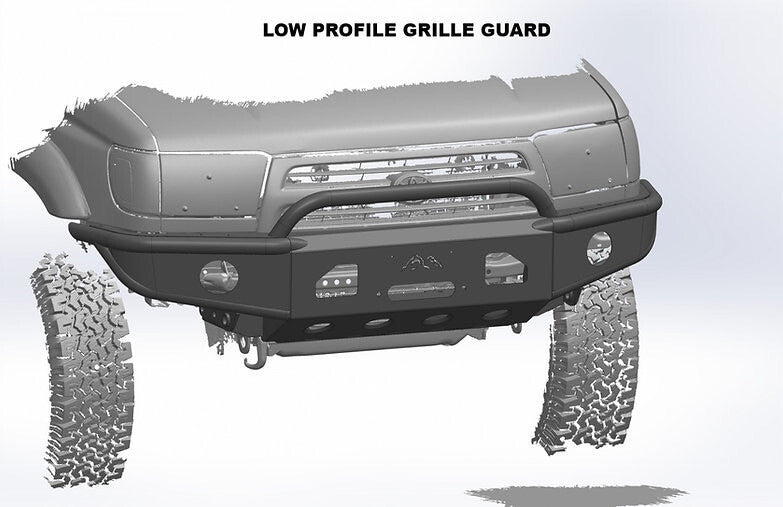

– Compatible with grille guard tubing add-ons
Specifications:
– Frame mounting plate, winch plate, skid supports: 7-gauge HRPO steel
– Main vertical supports: 3/8" steel
– Shackle mounts: 3/8" steel with 1.5" OD .250 wall DOM tubing
– Tubing: 1.75" OD 11-gauge ERW
– Sheet metal components: 11-gauge HRPO steel
– Winch mount: 10" x 4.5" (Warn M8000 compatible)
– Weight: ~80 lbs (varies with grille guard)
Fitment:
1996–2004 Toyota Tacoma

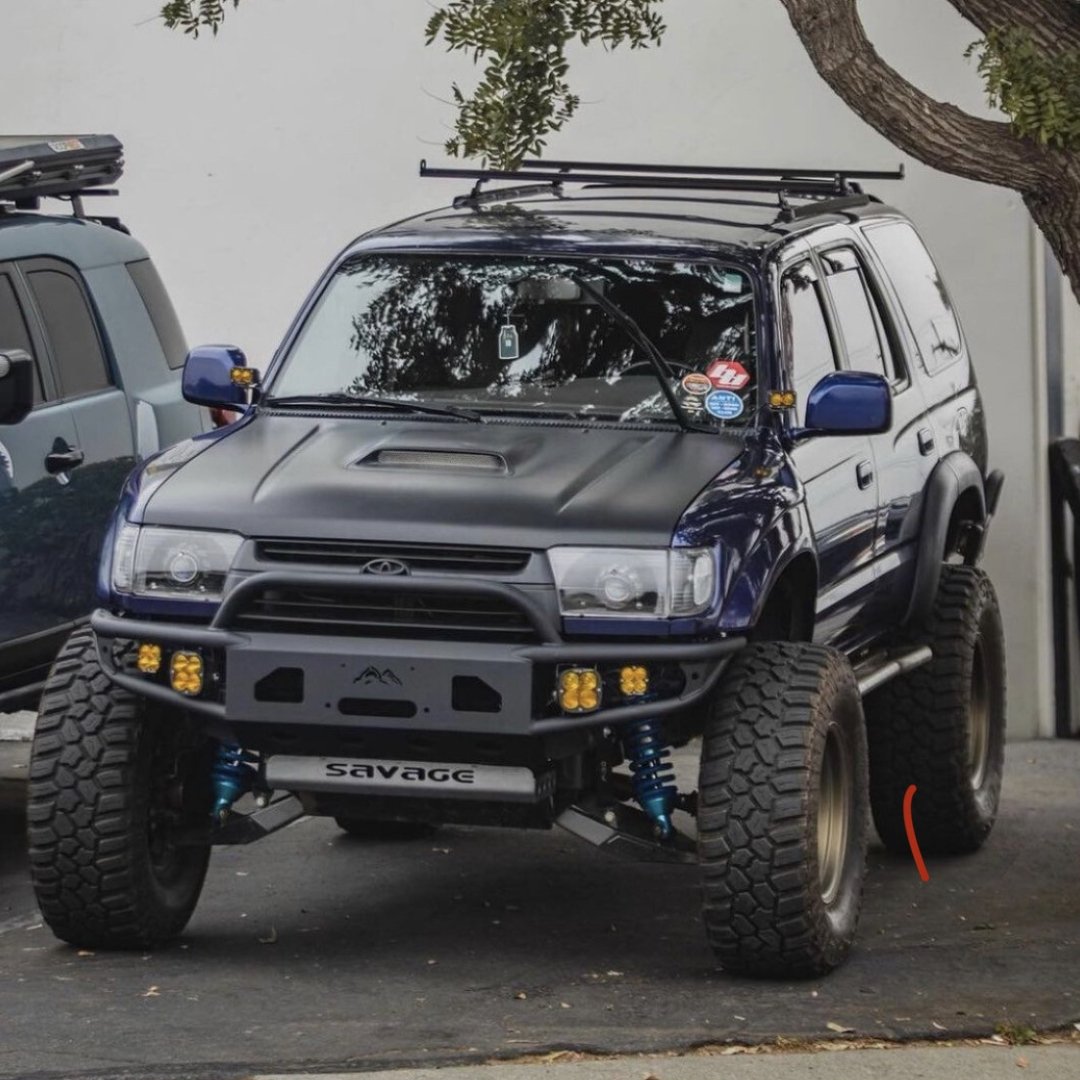

Also fits 1996–2002 4Runner (see Notes for compatibility details)
Notes:
This is a pre-fabricated bumper, fully welded and ready for installation. Frame rails must be trimmed 2" for optimal fitment; modification does not compromise frame integrity. Clean and paint trimmed area to prevent rust. Requires 3/4" aluminum spacers and extended M12 hardware for 2001–2004 Tacoma fitment (included). May fit 1996–2000 Tacomas, though unverified; 1998–2000 models may need frame horn trimming. Not body lift compatible. Off-road use only.
