Overview:

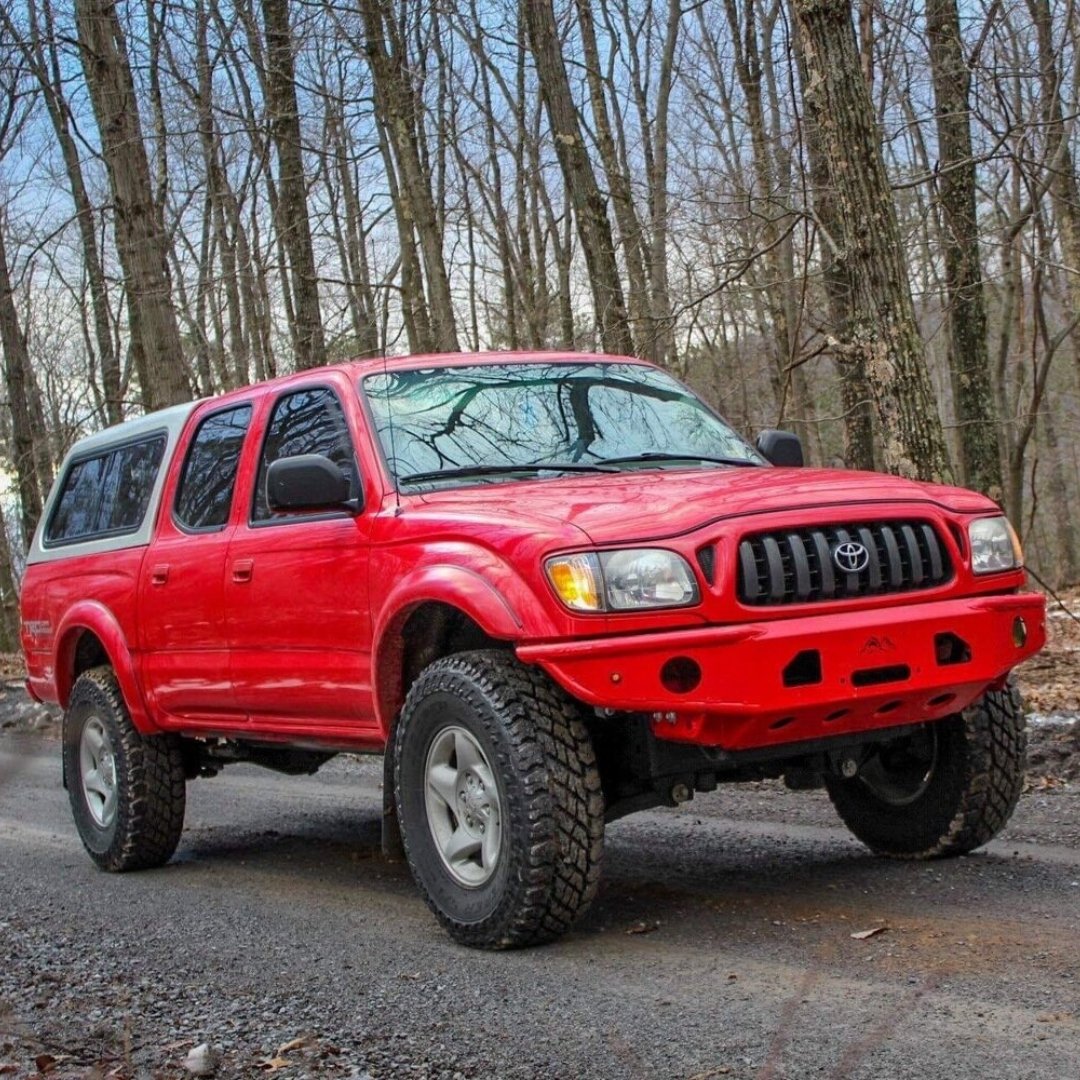

The Hybrid Front Bumper DIY Kit for 1st Gen Tacomas offers a weld-together solution combining strength, weight savings, and aggressive high-clearance geometry. Designed to support winch integration and auxiliary lighting, it’s ready for serious off-road use.
– Tabbed/slotted laser-cut kit for simplified DIY welding
– Hybrid tubing and plate design for max strength and minimal weight
– High-clearance profile optimizes approach angle
– Winch-compatible with centered fairlead layout
– Adjustable fit with included Tacoma-specific spacers and hardware
Specifications:
– Frame mount, winch plate, skid supports: 7-gauge HRPO steel
– Vertical supports: 3/8" HRPO steel
– Shackle mounts: 3/8" HRPO steel with 1.5" OD .250 wall DOM tubing
– Panels: 11-gauge HRPO steel
– Tubing: 1.75" OD 11-gauge ERW steel
– Winch pattern: 10" x 4.5", centered fairlead
– Weight: ~80 lbs (plus grille guard tubing if added)
Fitment:
2001–2004 Toyota Tacoma
Compatible with 1996–2000 models (not confirmed; may require frame trimming and expect a potential grille gap)
Notes:
DIY kit ships as raw components for welding. Not compatible with body lifts without a visible gap. Includes 3/4" aluminum spacers and extended M12 hardware for Tacoma installs. Frame rails must be trimmed 2" for proper fitment. Surface imperfections from handling may be present. For off-road use only.
