Overview:
The 1996–2004 Toyota Tacoma Closed Wing Hybrid Front Bumper is a fully welded, high-clearance bumper built for serious off-road use. Its closed-wing hybrid design maximizes protection and strength while minimizing excess weight and maintaining optimal approach angles.
– Closed-wing hybrid layout enhances structure and coverage
– High-clearance profile improves approach angles
– CAD-modeled for precise bolt-on fit
– Integrated winch and auxiliary light mounting
– Adjustable oversized frame mounts

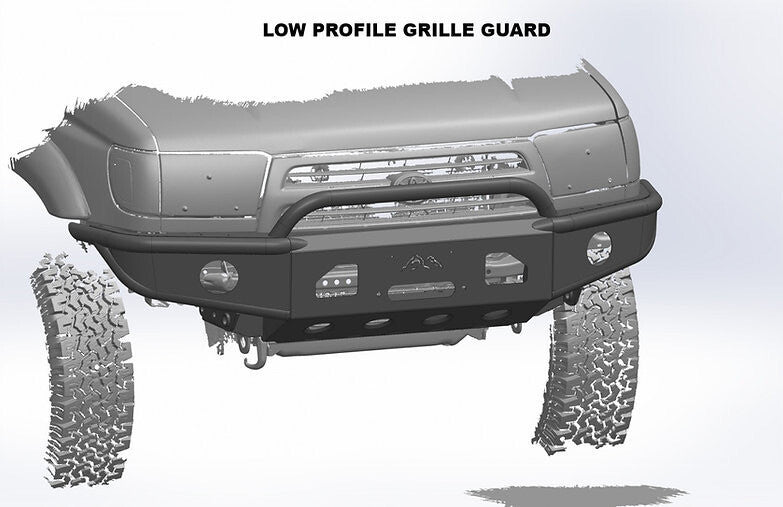

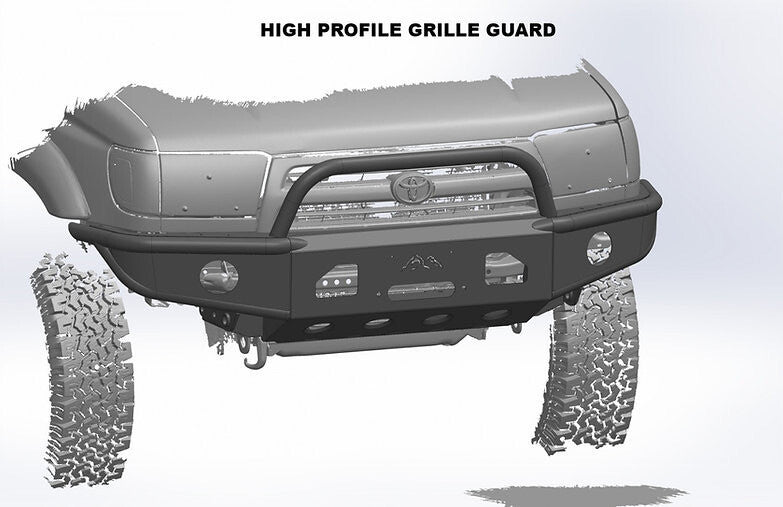

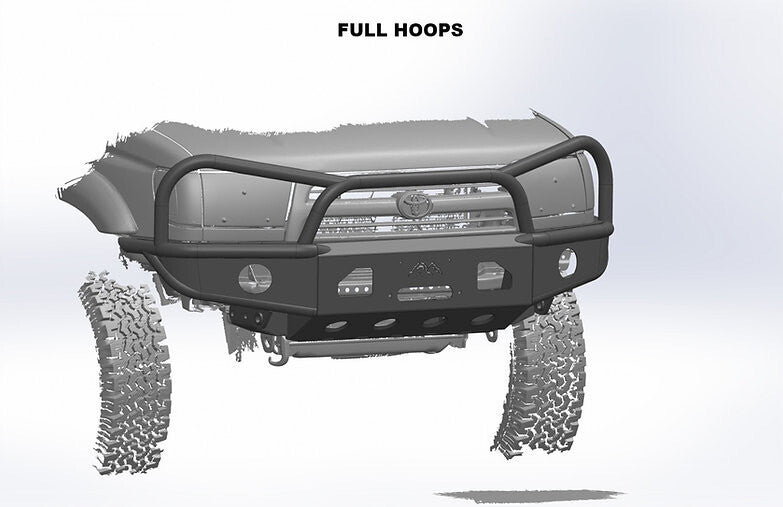

– Compatible with optional grille guard tubing
Specifications:
– Frame mounting plate, winch plate, skid supports: 7-gauge HRPO steel
– Main vertical supports: 3/8" steel
– Shackle mounts: 3/8" steel with 1.5" OD .250 wall DOM tubing
– Tubing: 1.75" OD 11-gauge ERW steel
– Sheet metal components: 11-gauge HRPO steel
– Winch mount: 10" x 4.5" (Warn M8000 compatible)
– Weight: ~85 lbs. (varies with tubing options)
Fitment:
1996–2004 Toyota Tacoma
Notes:
This is a pre-fabricated, fully welded bumper ready for immediate installation. Requires trimming 2 inches off the frame rails for optimal fit—this does not affect frame integrity. Clean and coat the trimmed area to prevent rust. Includes 3/4" aluminum spacers and extended M12 hardware for 2001–2004 Tacoma compatibility. Fits 1996–2000 Tacomas with possible gap or trimming required; untested in-house. Not compatible with body lifts. Intended for off-road use only.
