Overview:

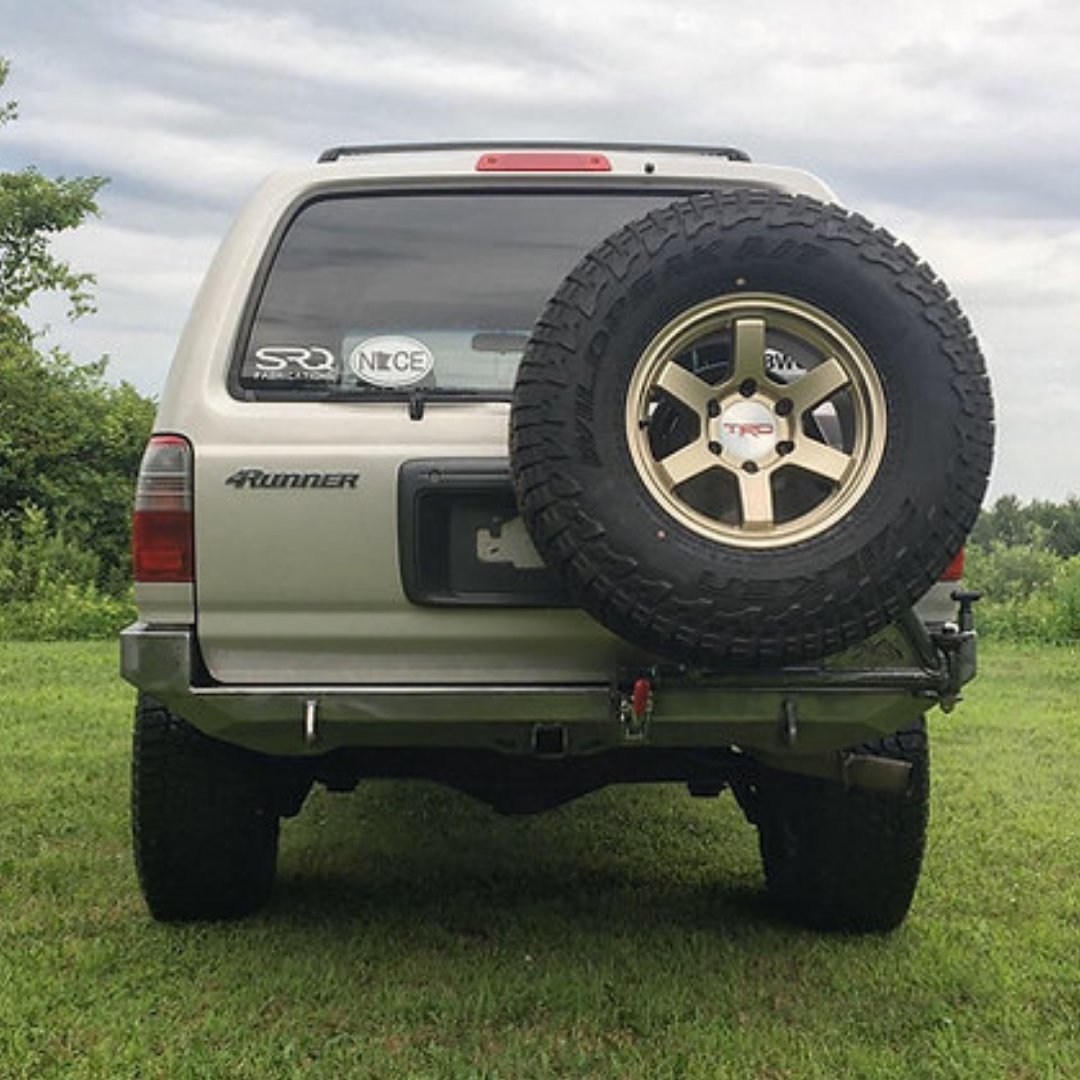

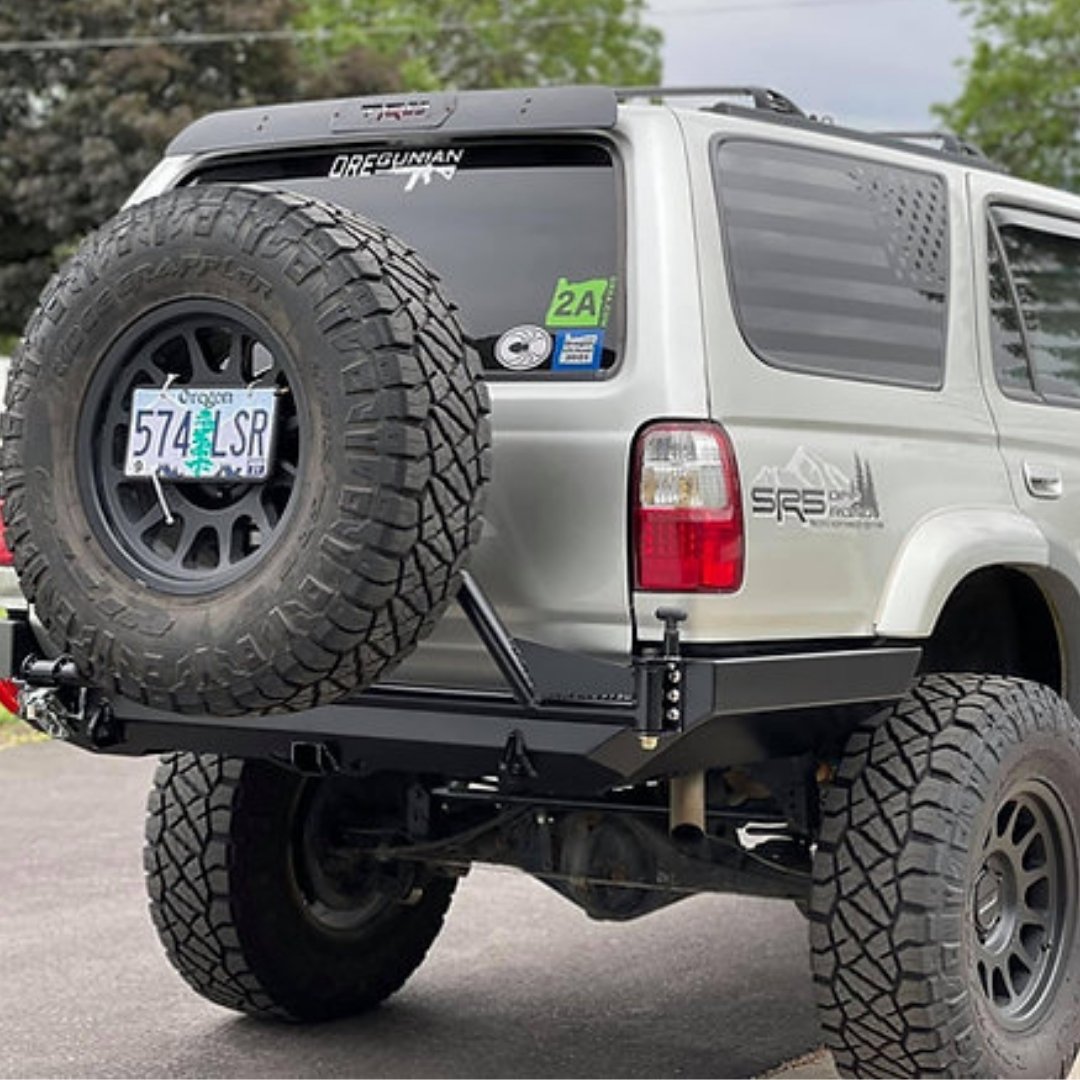

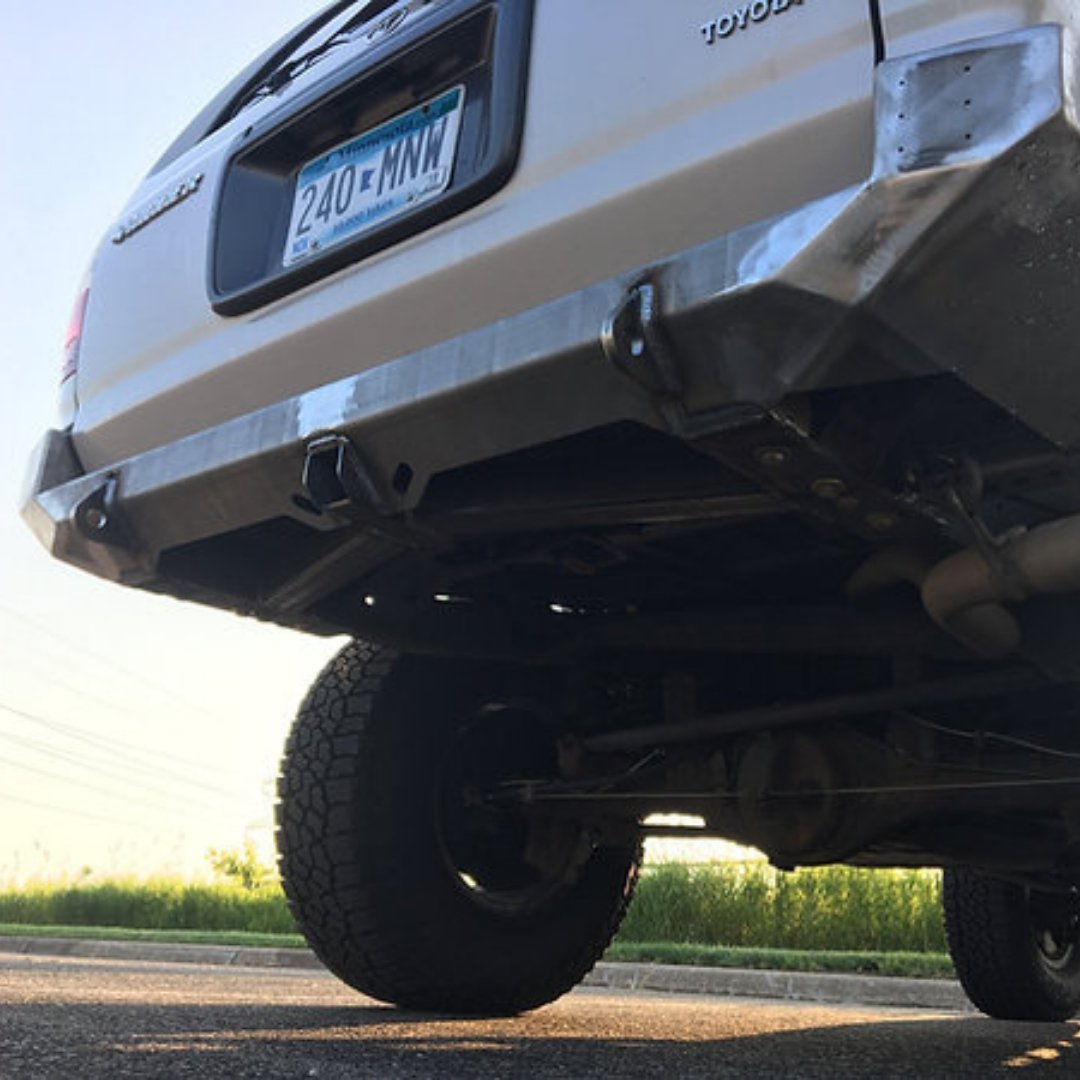

The Plate Rear Bumper is a fully welded, high-clearance steel bumper for 3rd Gen 4Runners, offering robust rear-end protection and optional swing-out configurations for off-road utility. Built for strength and versatility with precision laser-cut components.
– Fully enclosed steel structure for maximum protection
– Compatible with optional swing-out for spare tire and accessories
– Adjustable mounting points accommodate frame variation
– Supports body lifts from 1/2" to 2"
– High-clearance design improves departure angles
Specifications:
– Frame brackets: 1/4" HRPO steel
– Center section, swing-out plates, side braces: 3/16" HRPO steel
– Sides and end caps: 10-gauge HRPO steel
– Shackle mounts: 1/2" HR steel, 1" hole, through-welded
– Crossbeams: 2x2x3/16" square tubing
– Hitch receiver: 2.5x2.5x3/16" square tubing
– Weight: ~95 lbs
– Compatible with stock or lifted setups

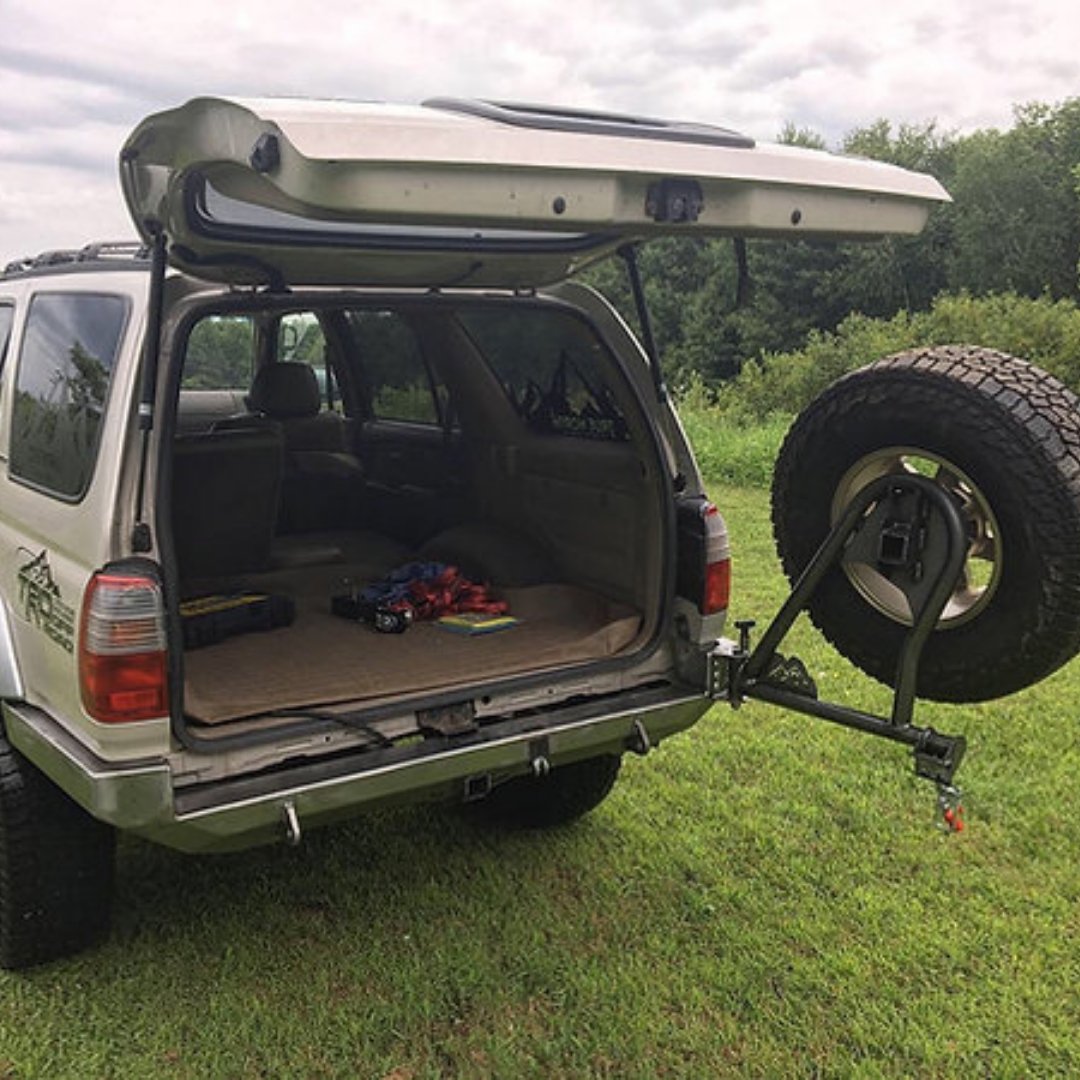

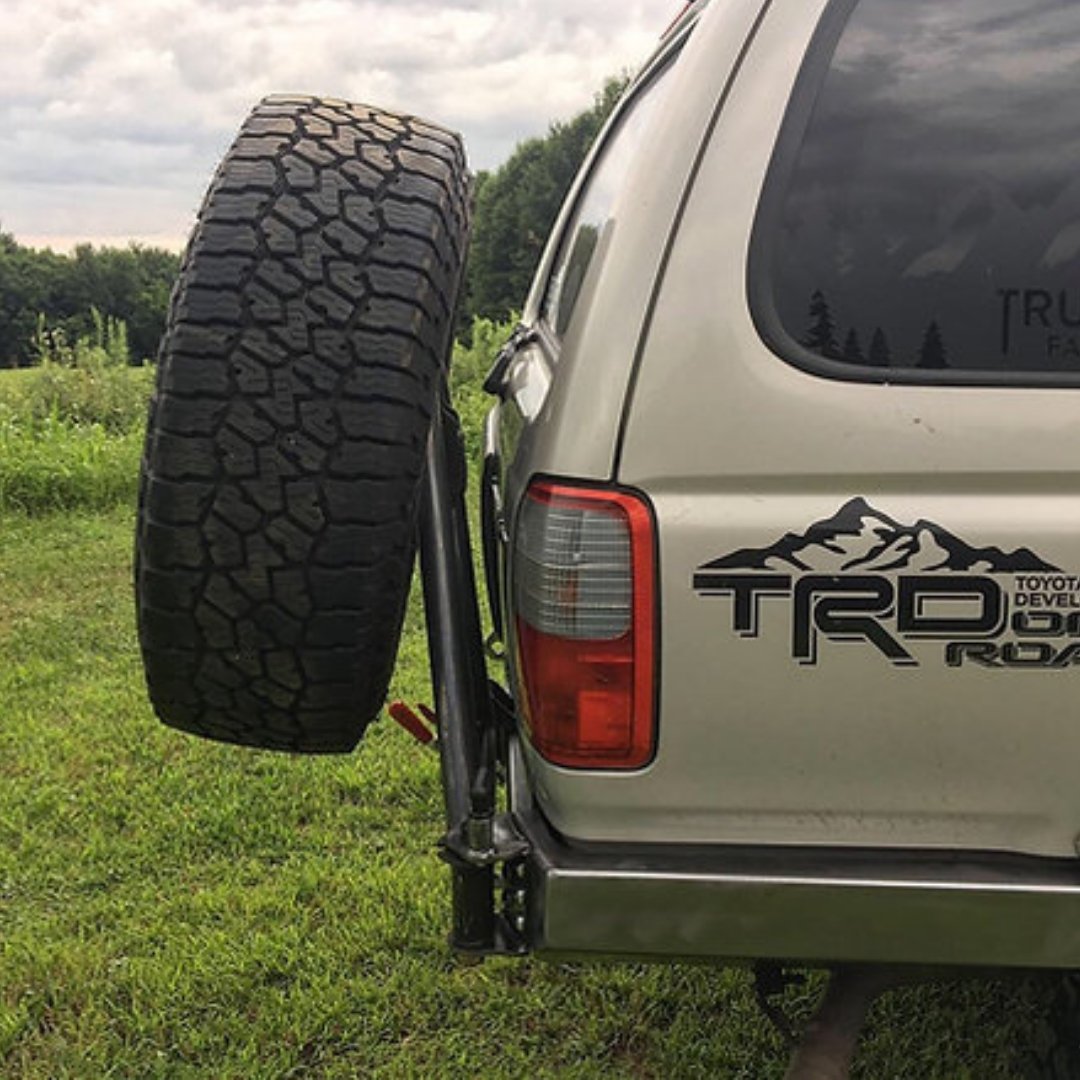

Swingout Specifications:
– Max tire size: 35"
– Bolt pattern: 6x5.5 with M12x1.50 studs (lug nuts not included)
– Tubing: 1.75" OD x 11-gauge ERW; 2.5x2.5x3/16" square
– Hinge: 3/4" alloy shoulder bolt, 3/8" wall DOM tube
– Bushing: Oil-embedded flanged sleeve
– Latch: 2000 lb capacity with lock and spring plunger
– Swingout weight: ~40 lbs
Fitment:
1996–2002 Toyota 4Runner
Notes:
This is a fully welded, pre-fabricated bumper. Designed for off-road use only; not rated for towing. Minor surface blemishes from handling may be present. License plate must be relocated when using swingout. Local powder coating recommended to reduce risk of shipping damage.
