Overview:

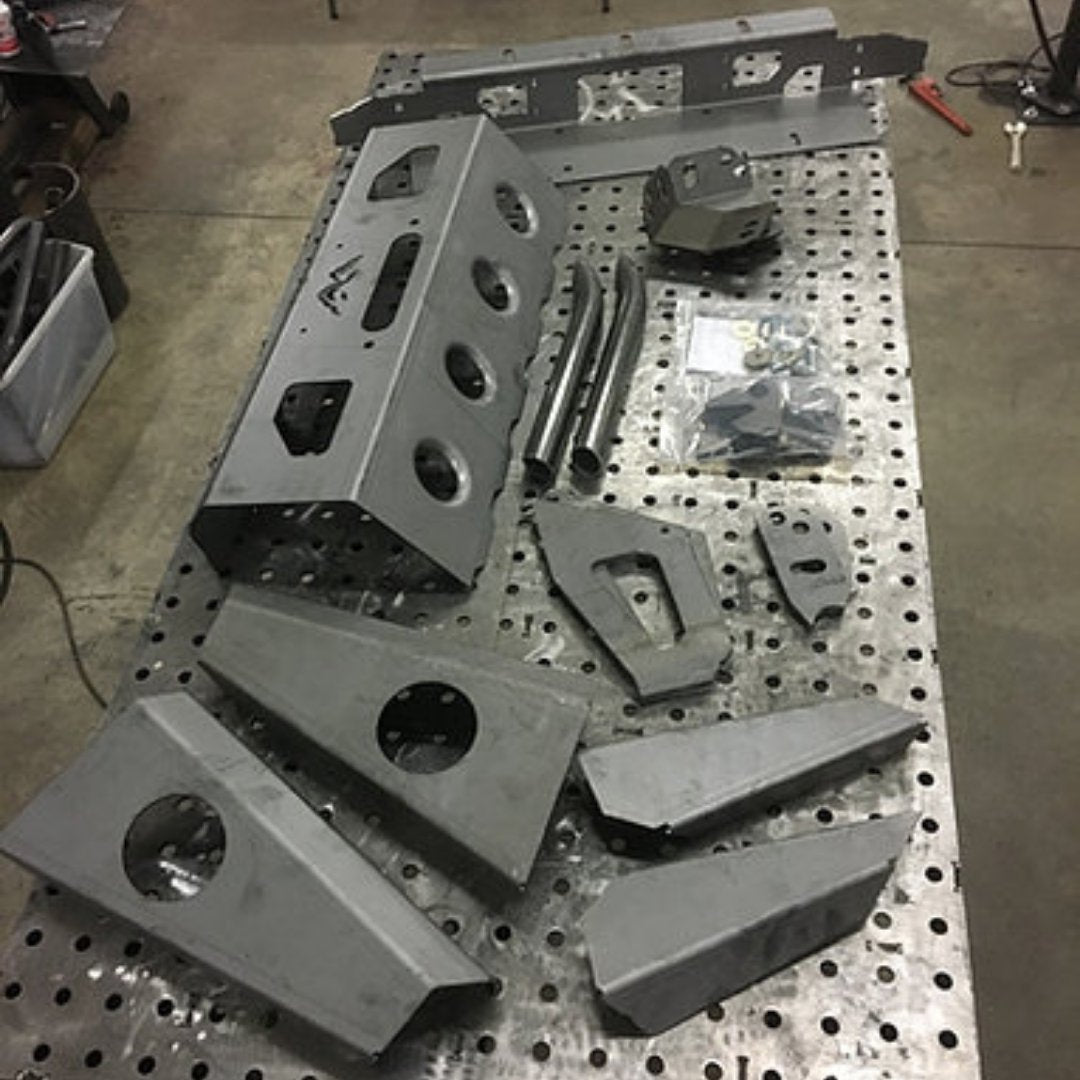

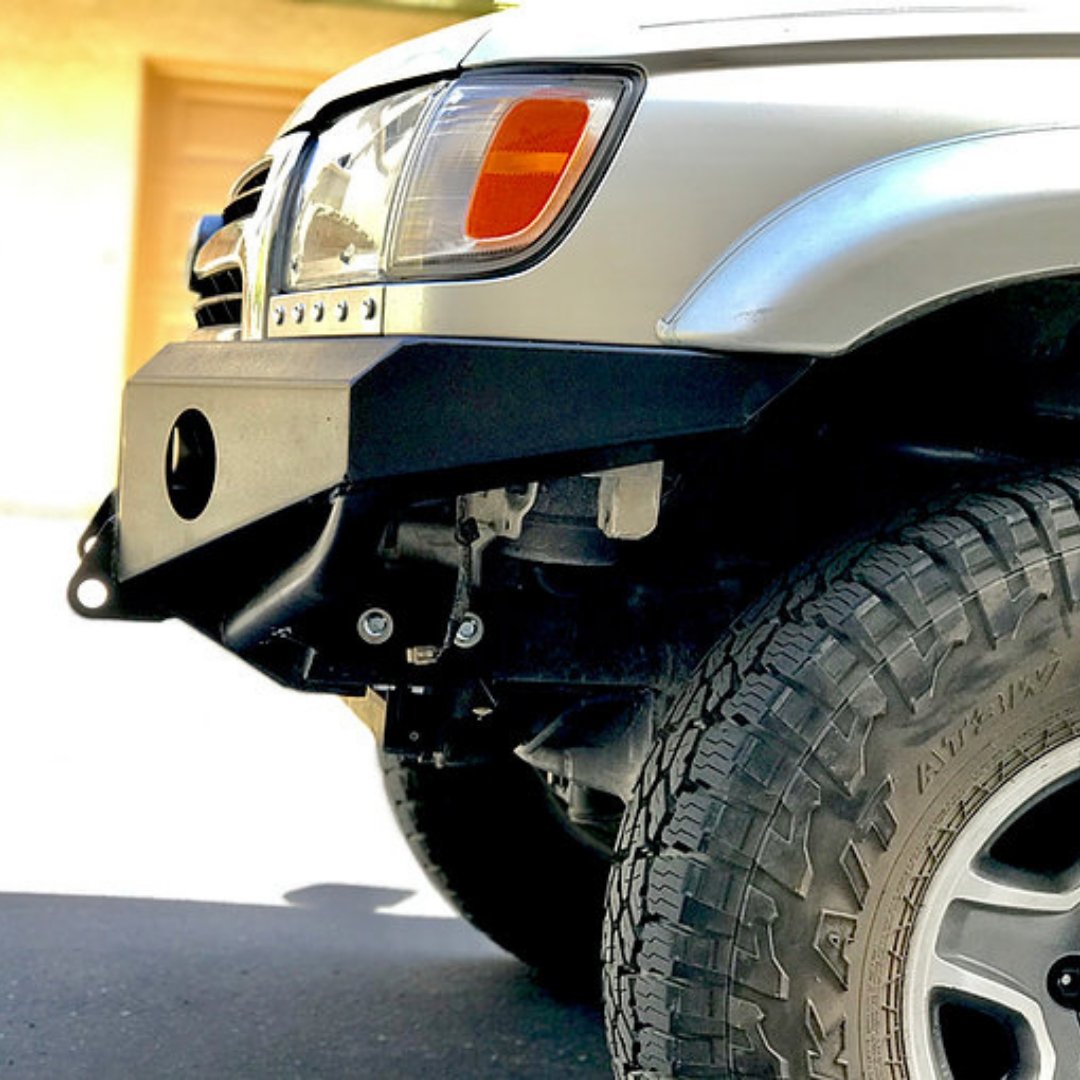

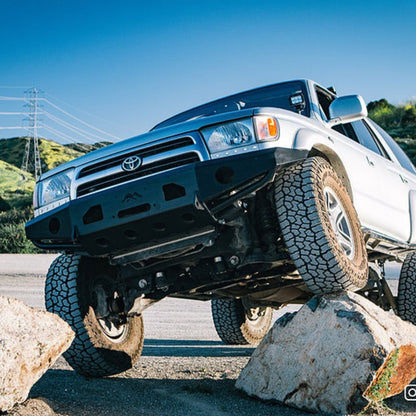

The Plate Front Bumper DIY Kit is a heavy-duty, weld-it-yourself solution for 3rd Gen 4Runners, designed for maximum strength, trail function, and precision fitment. Built with thick steel throughout, it includes all components to create a fully enclosed, winch-ready bumper.
– Fully enclosed laser-cut steel design for strength and protection

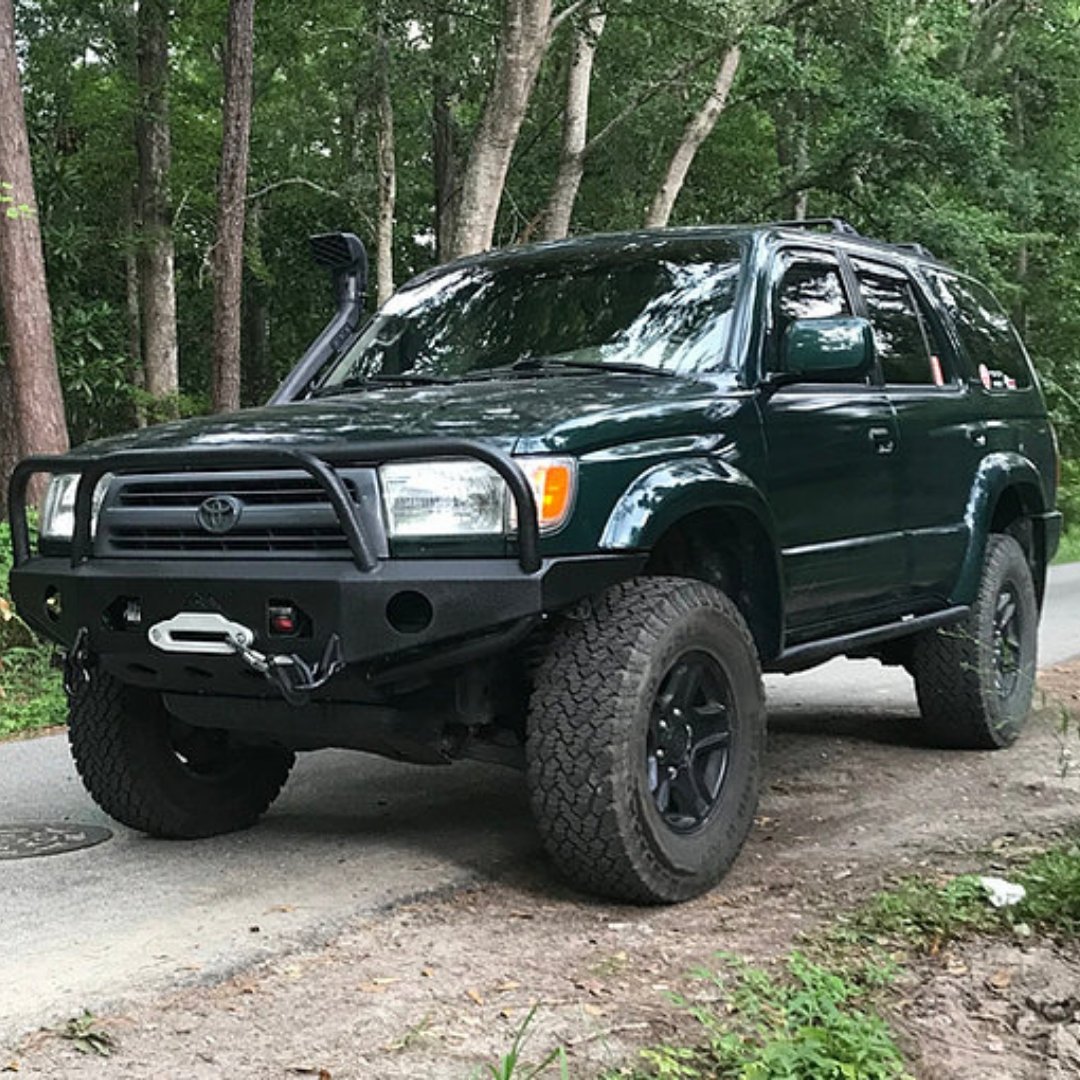

– Integrated winch mount fits Warn M8000 and similar units
– Tabbed/slotted construction for simplified alignment and assembly
– Precision fitment from laser scanning to within 0.005"
– Includes provisions for auxiliary lighting and shackle mounts
– Oversized mounts and hardware offer adjustability for frame variances
Specifications:
– Frame mount, winch plate, skid supports: 7-gauge HRPO steel
– Vertical plates and underwing supports: 3/8" steel
– Shackle mounts: 1/2" steel
– Outer panels: 11-gauge HRPO steel
– Tubing: 1.75" OD 11-gauge ERW steel
– Winch pattern: 10" x 4.5", centered fairlead
– Approximate weight: 90 lbs (plus additional for grille guard tubing)
Fitment:
1996–2002 Toyota 4Runner
Notes:
This is a DIY weld-together bumper kit. Ships as individual components. Not compatible with body lifts without visible gap. Requires trimming 2" from front frame rails for proper fitment—modification does not compromise frame integrity. Grille guard tubing ships oversized and uncoped. Minor surface imperfections may be present due to handling. Intended for off-road use only.
