Overview:

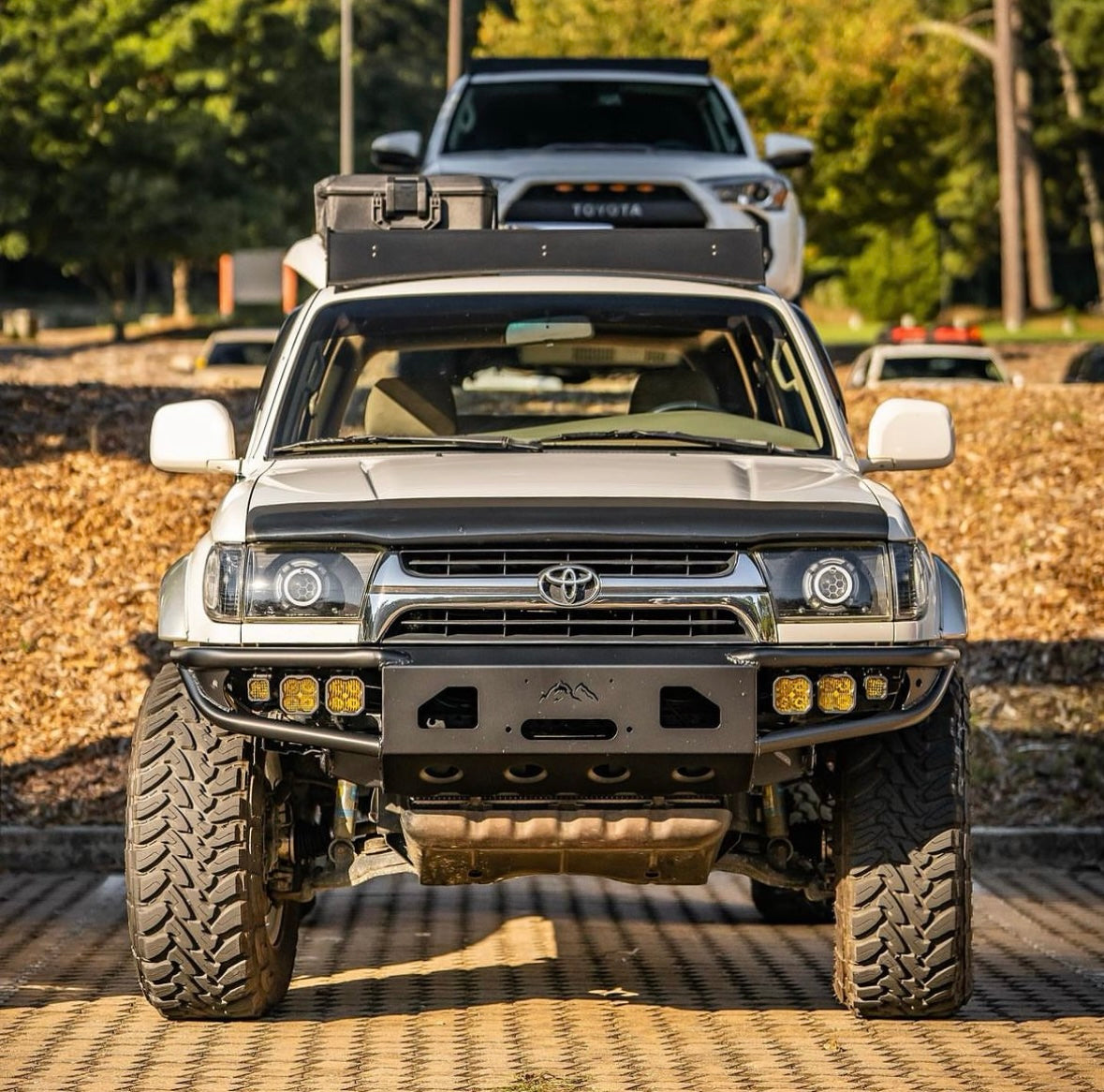

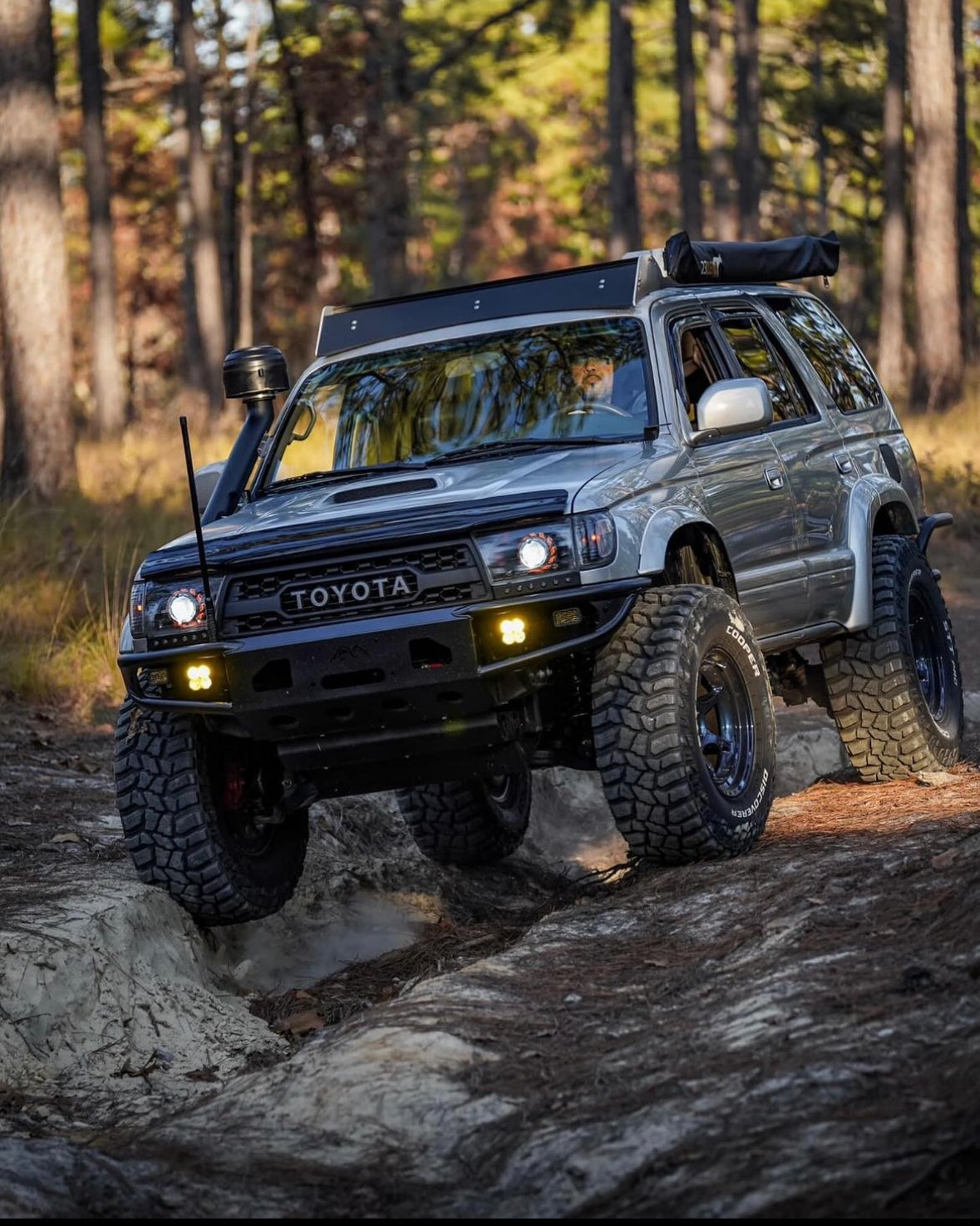

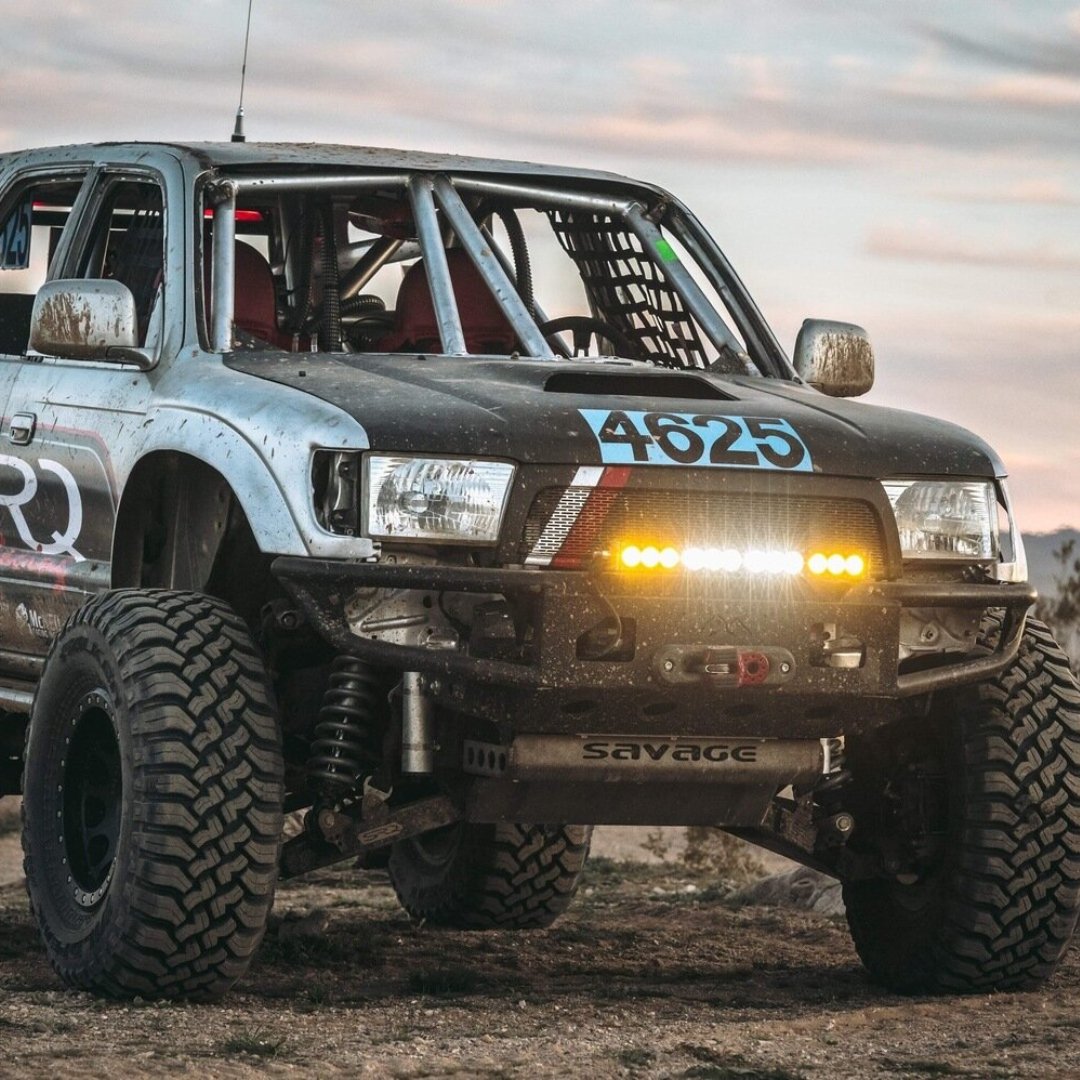

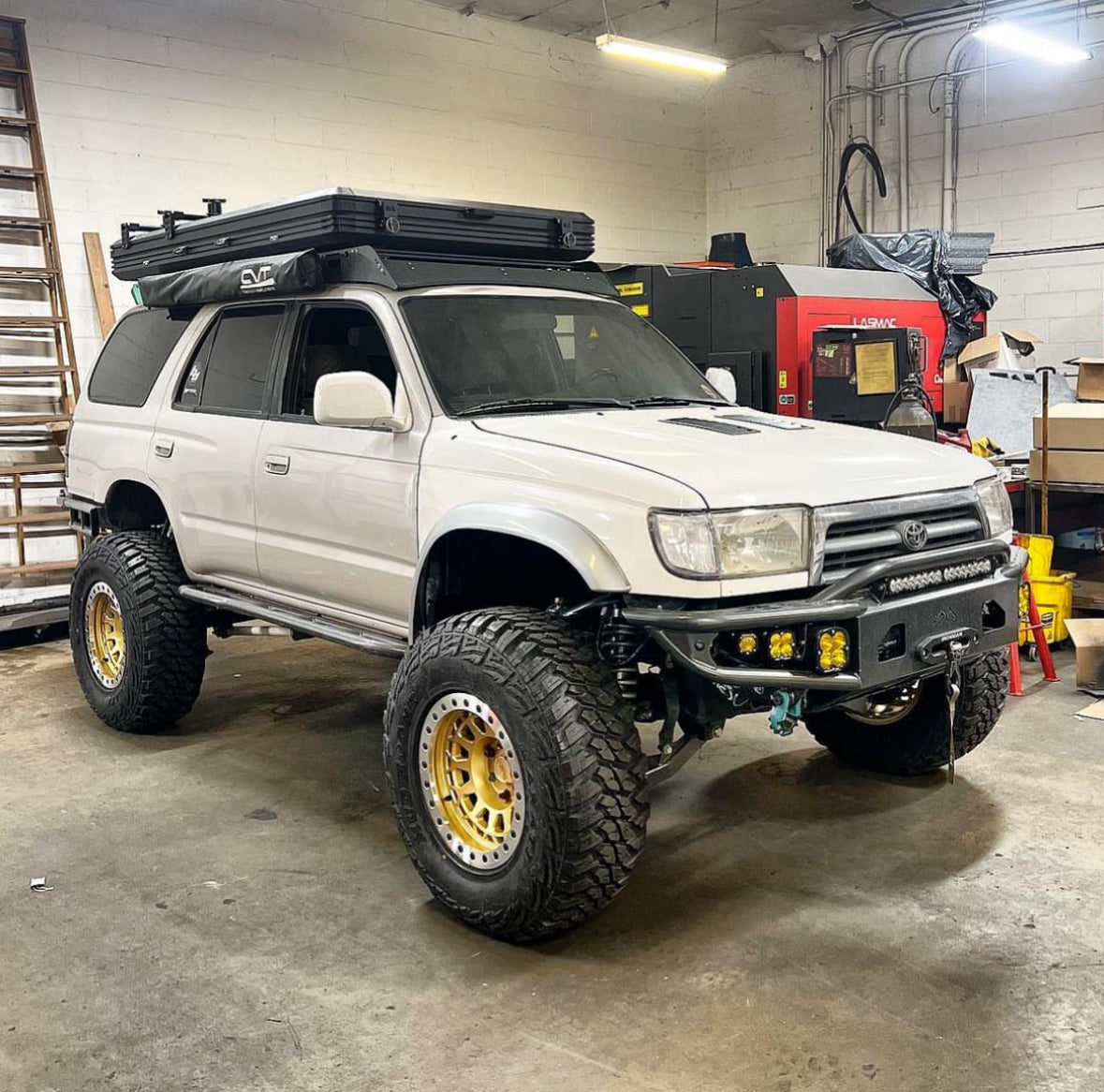

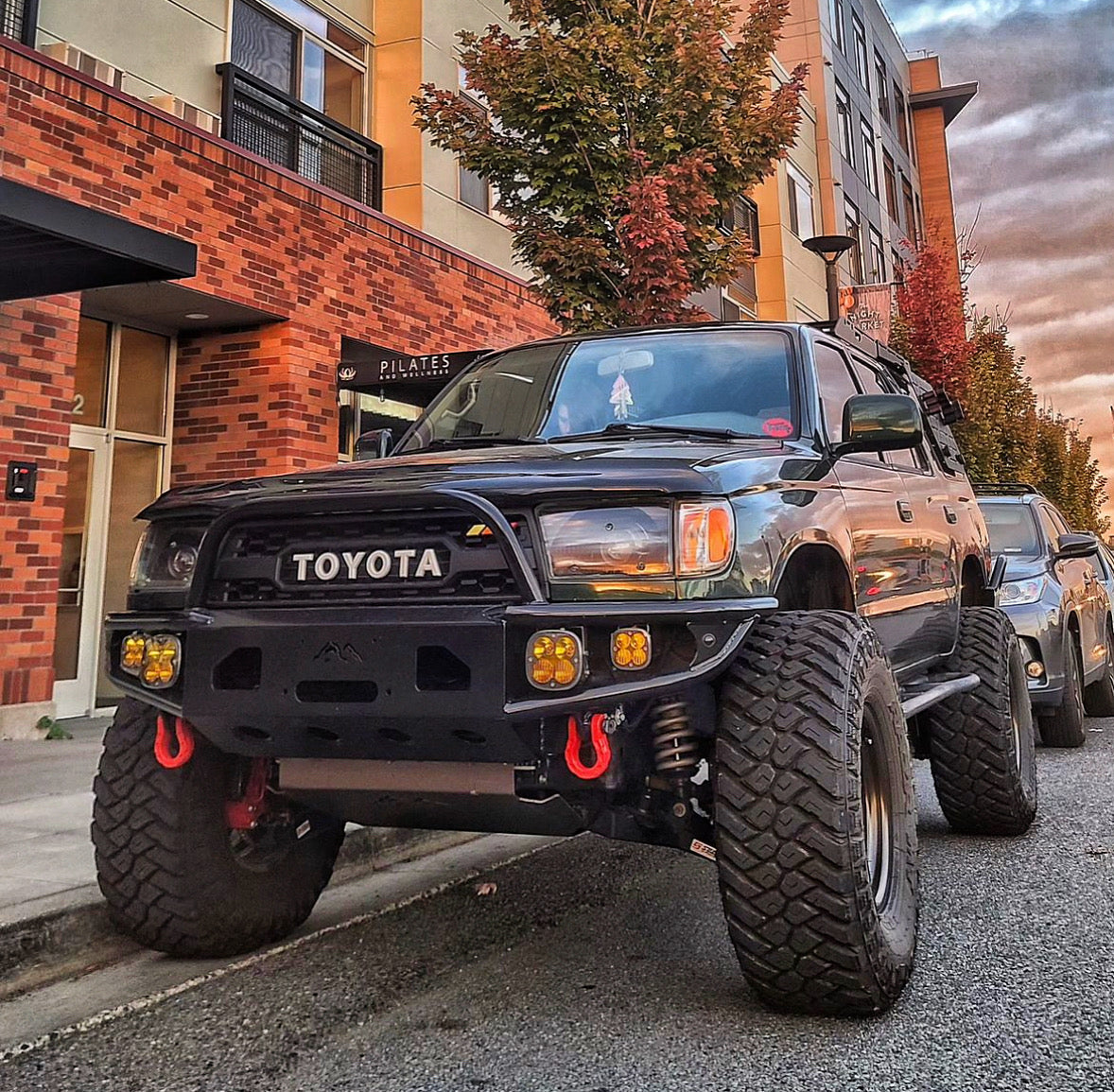

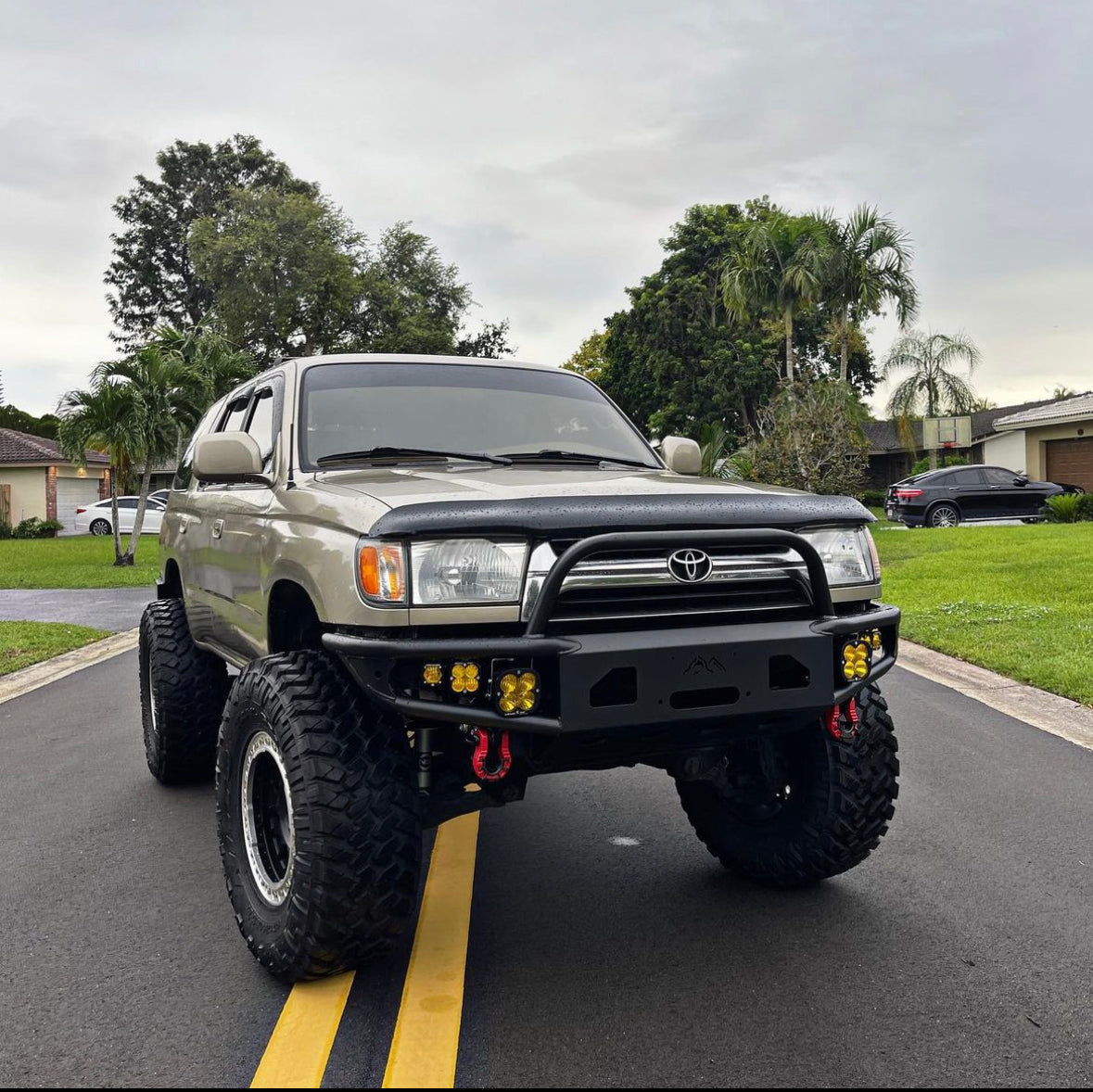

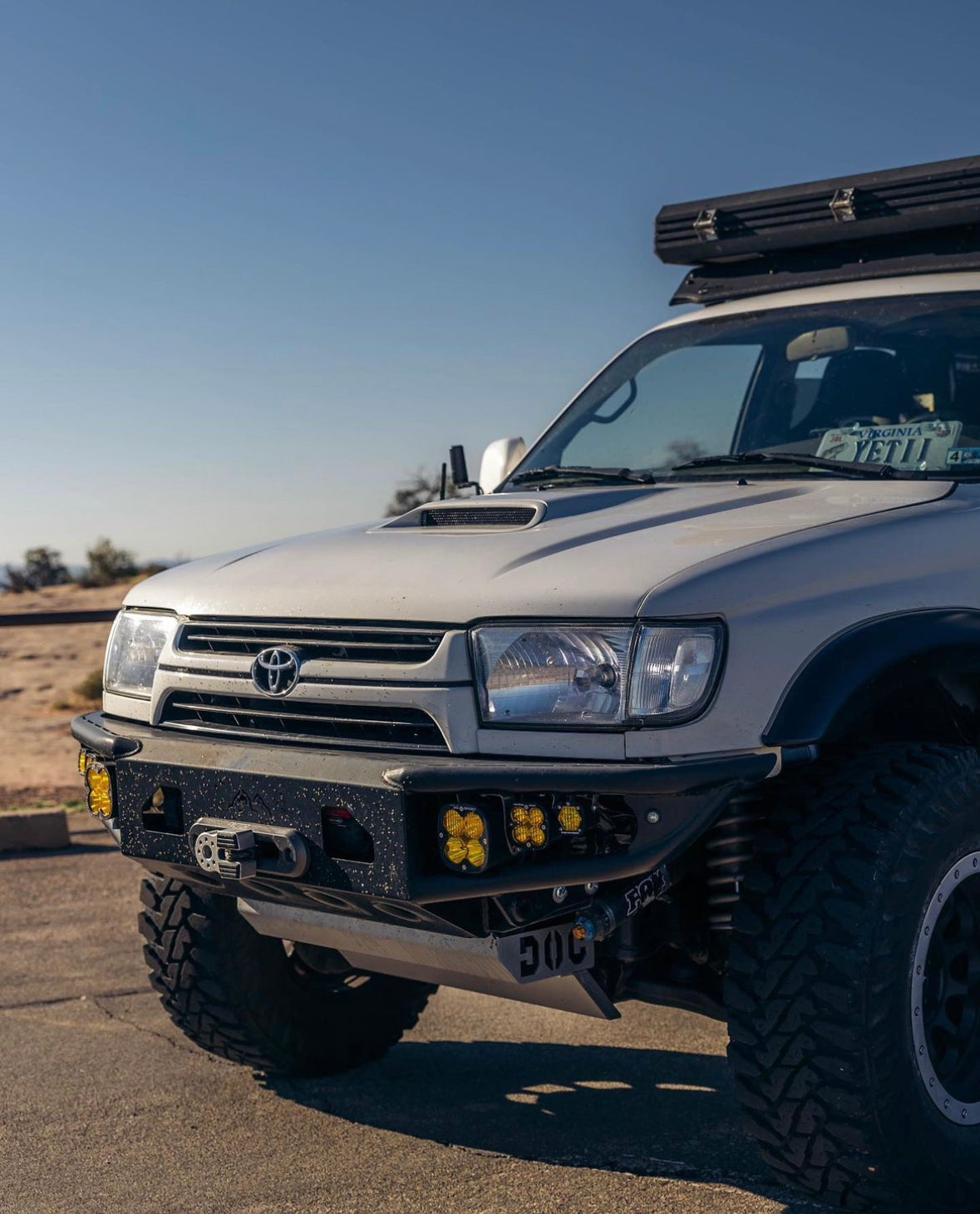

The Open Wing Hybrid Front Bumper is a fully welded, high-clearance steel bumper for 3rd Gen 4Runners. Its open-wing hybrid design improves approach angles while reducing weight, making it ideal for serious off-road use.
– Lightweight hybrid construction for strength and clearance
– Pre-welded and ready to install
– Integrated winch and auxiliary lighting mounts
– Precision-fit design based on laser scanning
– Adjustable oversized mounts for frame variance
Specifications:
– Frame mounts, winch plate, skid supports: 7-gauge HRPO steel
– Vertical plates and underwing supports: 3/8" steel
– Shackle mounts: 1/2" steel
– Outer panels: 11-gauge HRPO steel
– Tubing: 1.75" OD 11-gauge ERW steel
– Winch pattern: 10" x 4.5", centered fairlead

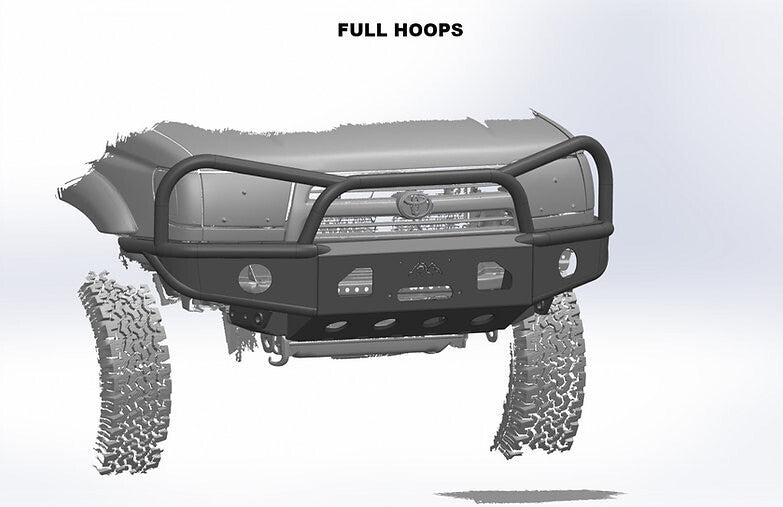

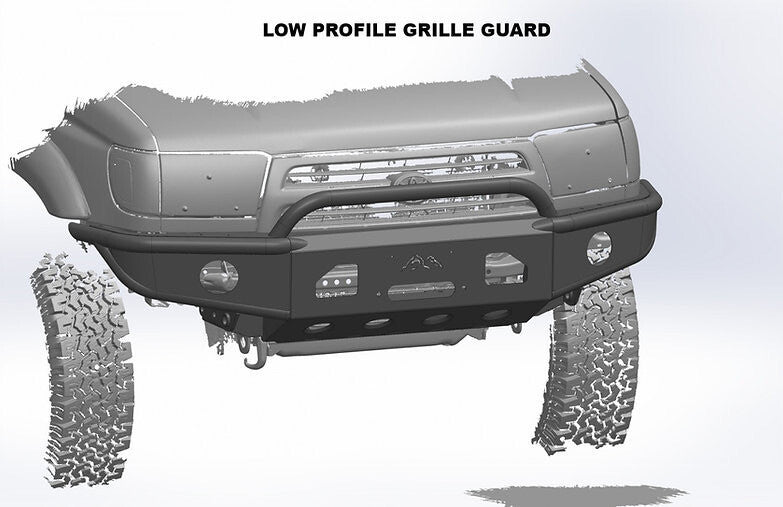

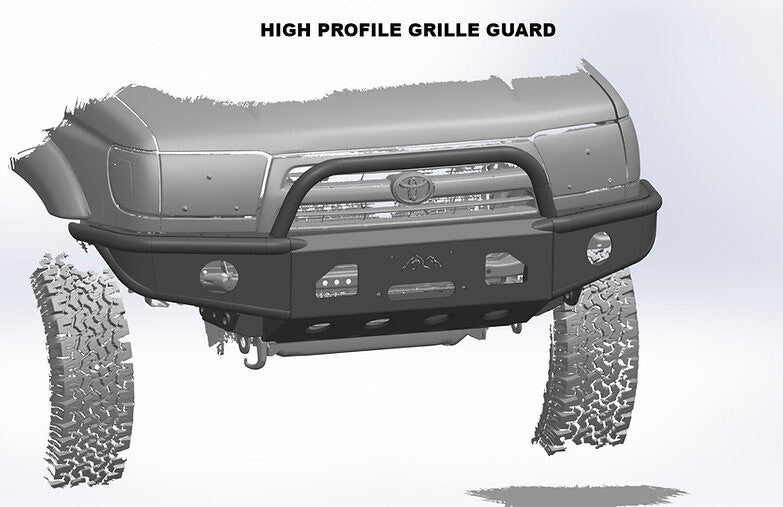

– Approximate weight: 80 lbs (plus grille guard tubing if selected)
Fitment:
1996–2002 Toyota 4Runner
Notes:
This is a fully welded, ready-to-install bumper. Not compatible with body lifts without leaving a visible gap. Requires trimming 2" from front frame rails—this does not compromise frame integrity. Surface imperfections from shipping may be present. Local powder coating is recommended to avoid shipping damage.
