Overview:

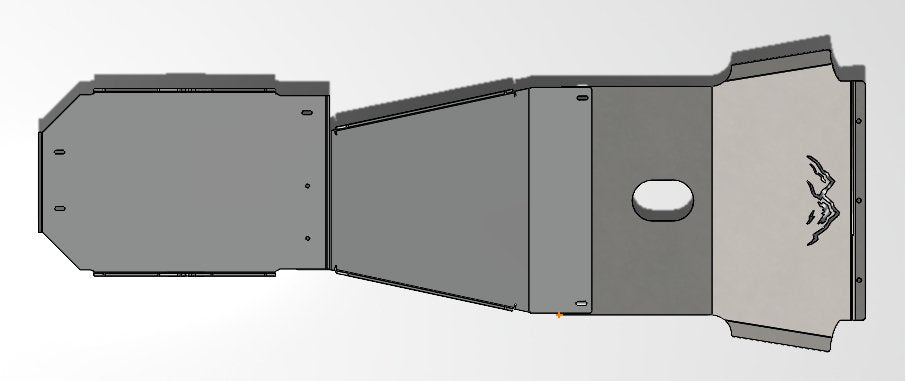

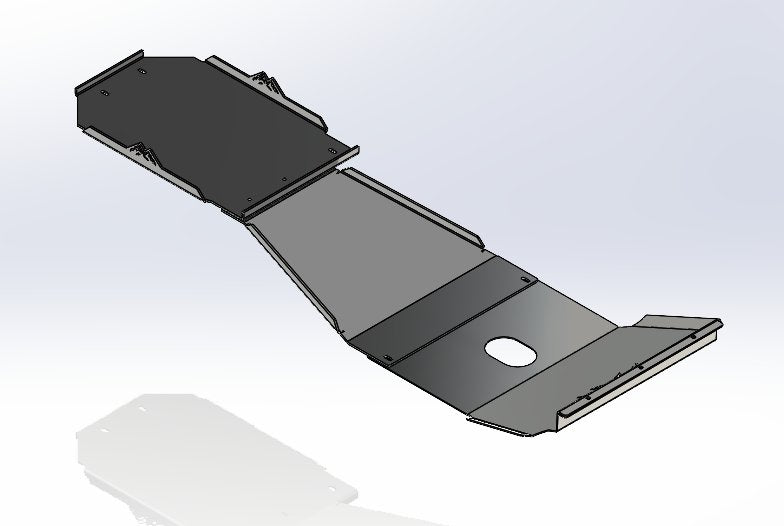

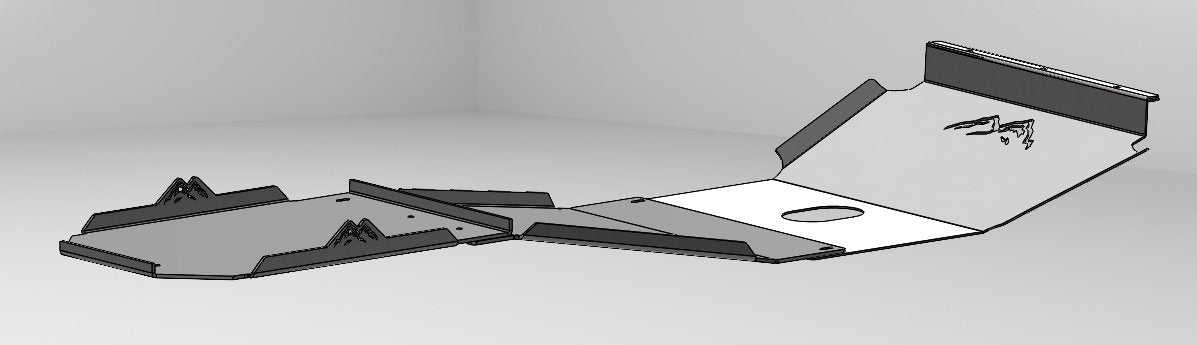

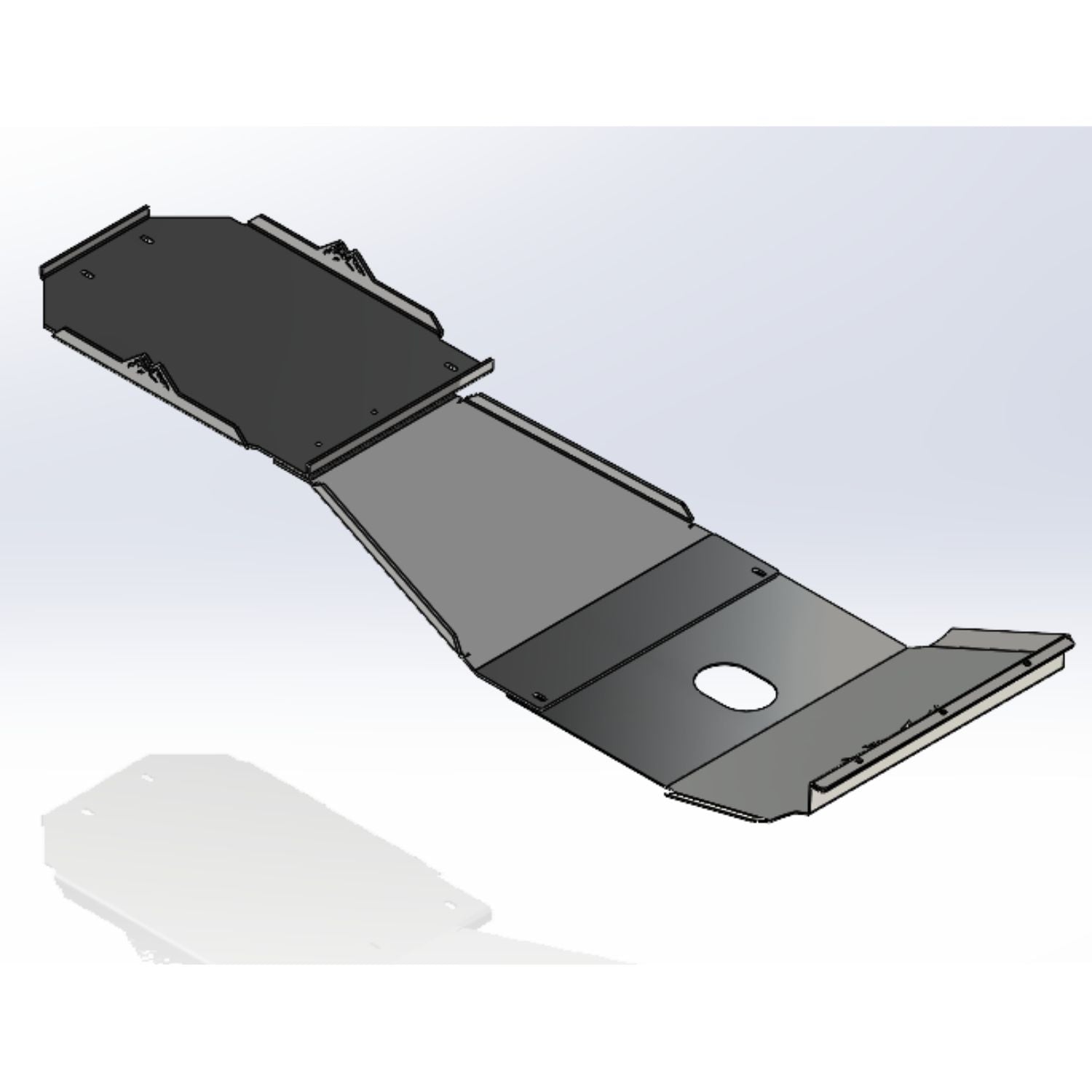

The 1996–2002 3rd Gen 4Runner Full Skid Plate Set offers complete underside protection with a precision-engineered, three-piece design. Developed from laser-scanned data for unmatched accuracy and fit.
– Full front-to-transmission skid coverage in three sections
– 3/16" steel construction for maximum impact resistance
– Modeled from .005" accurate laser scans for precise fit
– Bolt-on design using factory mounting points
– Includes all new grade 8 hardware
Specifications:
– Material: 3/16" uncoated raw steel
– Sections: Front, mid, and transmission plates
– Mounting: Uses OEM locations with included grade 8 hardware
– Manufacturing tolerance: ±0.005" from laser-scanned data
Fitment:
1996–2002 Toyota 4Runner
Notes:
Skid plates are shipped uncoated. Minor surface rust or scratches may be present from handling. Painting or powder coating before installation is strongly recommended to prevent corrosion. Bolt-on installation uses factory mounting locations; no drilling required.
