Overview:

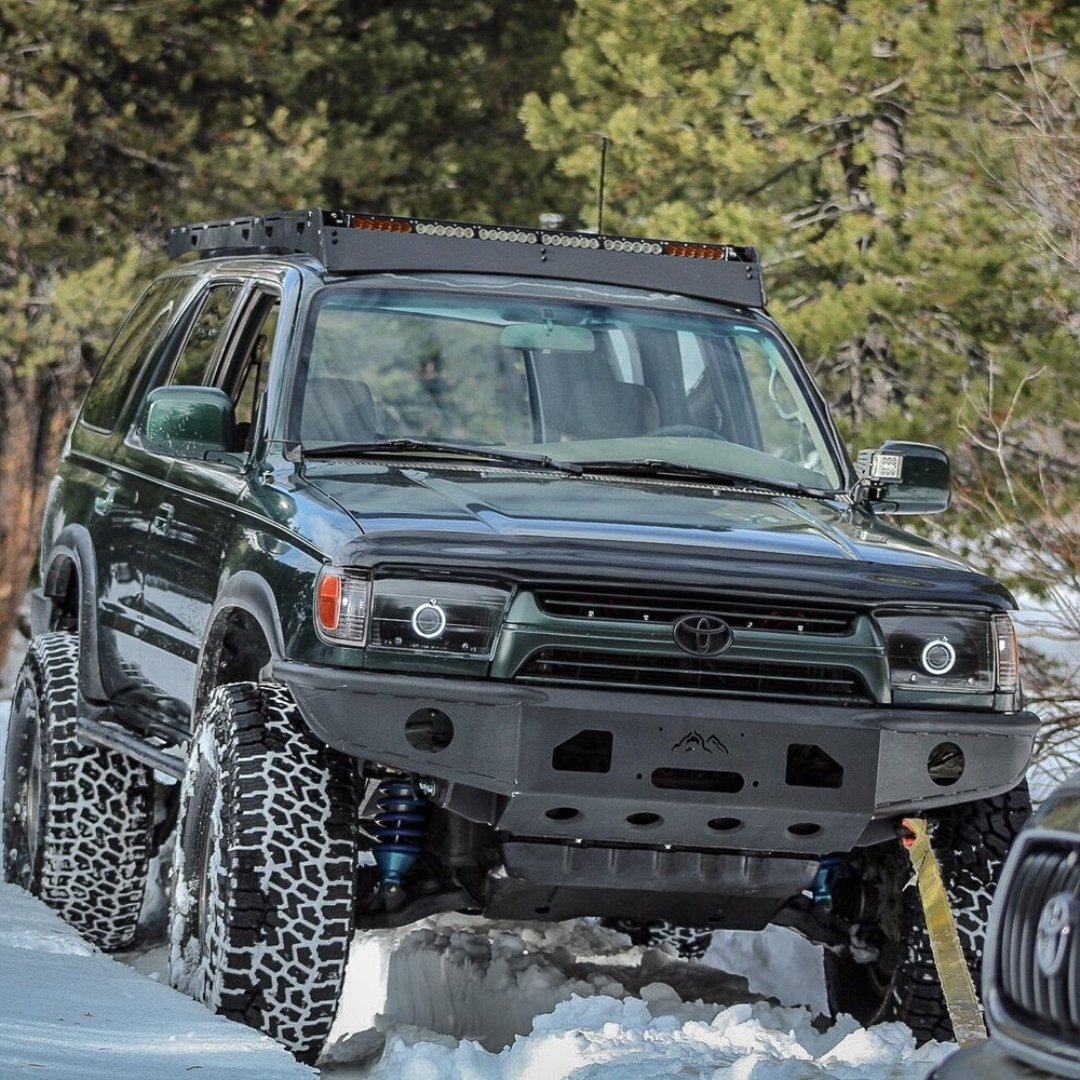

The Closed Wing Hybrid Front Bumper is a fully welded steel bumper for 3rd Gen 4Runners, built to balance strength, weight, and aggressive styling. Its enclosed hybrid wing design enhances durability while maintaining excellent approach angles.
– Pre-welded hybrid design offers superior strength with reduced weight
– Closed wing layout provides full frontal and side protection
– High-clearance profile for optimized off-road approach
– Integrated winch and auxiliary lighting mounts
– Laser-scanned for precise, bolt-on fitment
– Adjustable mounts accommodate frame variation
Specifications:
– Frame mounts, winch plate, skid supports: 7-gauge HRPO steel
– Vertical plates and underwing supports: 3/8" steel
– Shackle mounts: 1/2" steel
– Outer panels: 11-gauge HRPO steel
– Tubing: 1.75" OD 11-gauge ERW steel
– Winch mount pattern: 10" x 4.5", centered fairlead

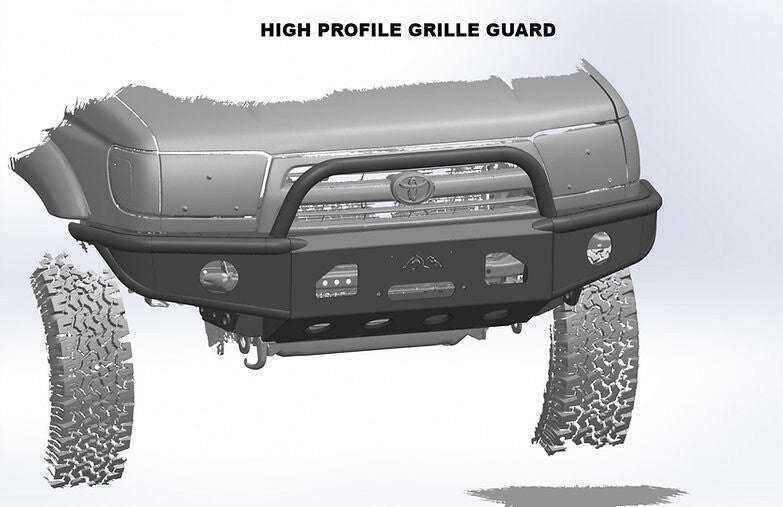

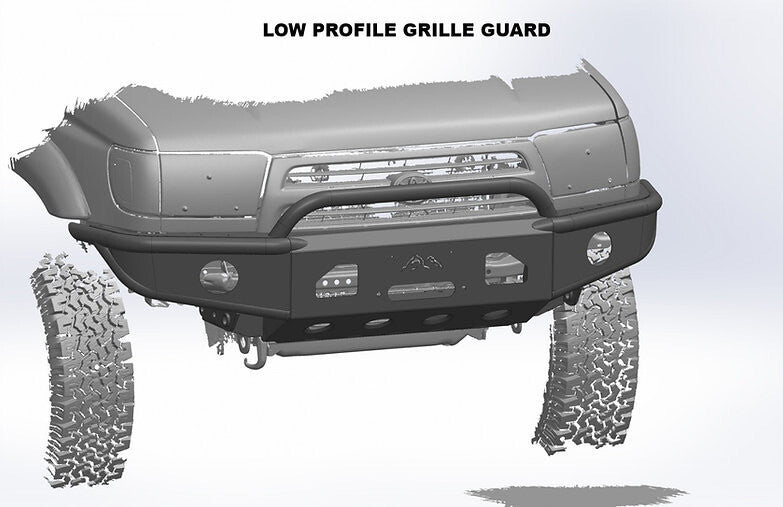

– Approximate weight: 90 lbs (plus optional grille guard tubing)
Fitment:
1996–2002 Toyota 4Runner
Notes:
This is a fully welded, ready-to-install bumper. Not compatible with body lifts without a visible gap. Requires trimming 2" from front frame rails for optimal fitment—this does not affect frame integrity. Minor cosmetic imperfections from shipping may be present. Local powder coating is recommended to prevent transit damage.
