Overview:

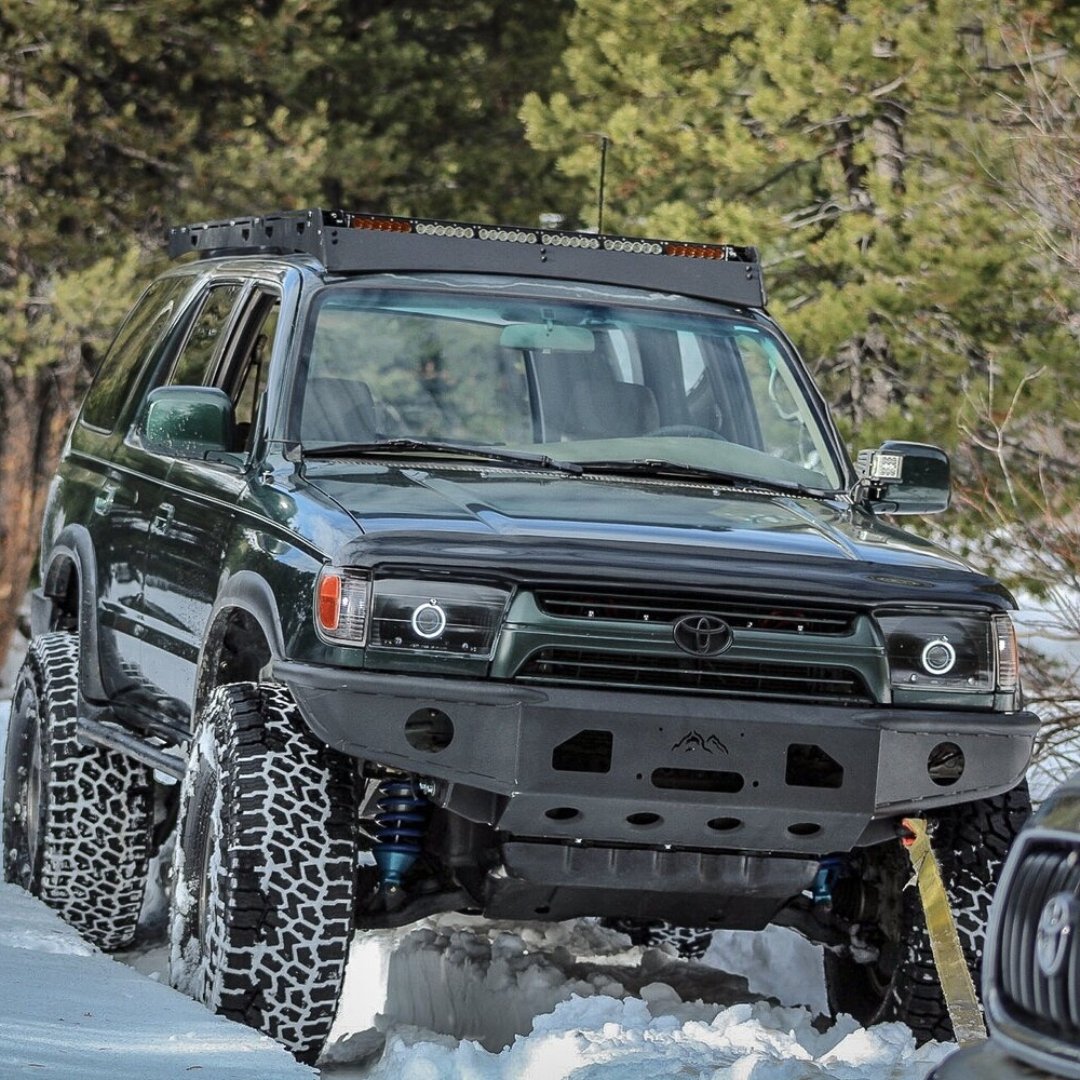

The Closed Wing Hybrid Front Bumper DIY Kit is a precision-fit, weld-together bumper for 3rd Gen 4Runners that blends enclosed steel wings with high-clearance tubing for optimized off-road performance. Designed for strength, weight savings, and approach angle improvement.
– Hybrid closed-wing design improves strength and reduces weight
– High-clearance profile maximizes approach angle
– Tabbed and slotted for precise, simplified assembly
– Integrated winch and auxiliary light mounting points
– Laser-scanned accuracy within 0.005" for reliable fit
– Adjustable mounts accommodate frame variation
Specifications:
– Frame mount, winch plate, skid supports: 7-gauge HRPO steel
– Main vertical plates and underwing supports: 3/8" steel
– Shackle mounts: 1/2" steel
– Outer panels: 11-gauge HRPO steel
– Tubing: 1.75" OD 11-gauge ERW steel
– Winch pattern: 10" x 4.5", centered fairlead

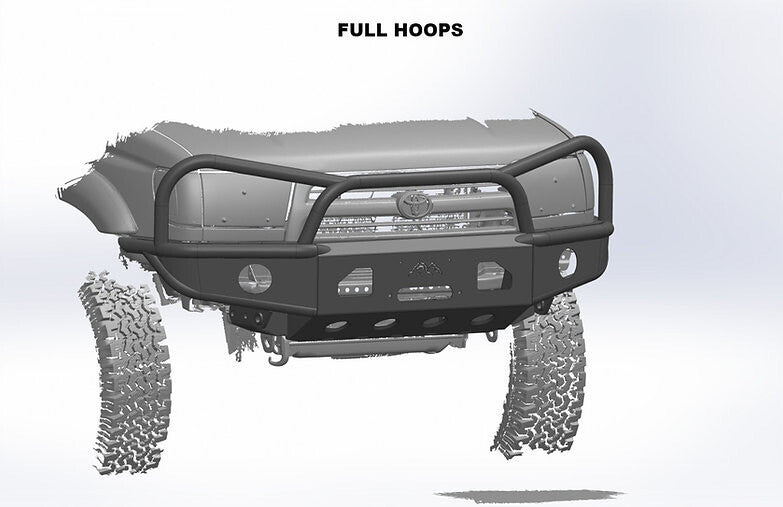

– Approximate weight: 90 lbs (plus optional grille guard tubing)
Fitment:
1996–2002 Toyota 4Runner
Notes:

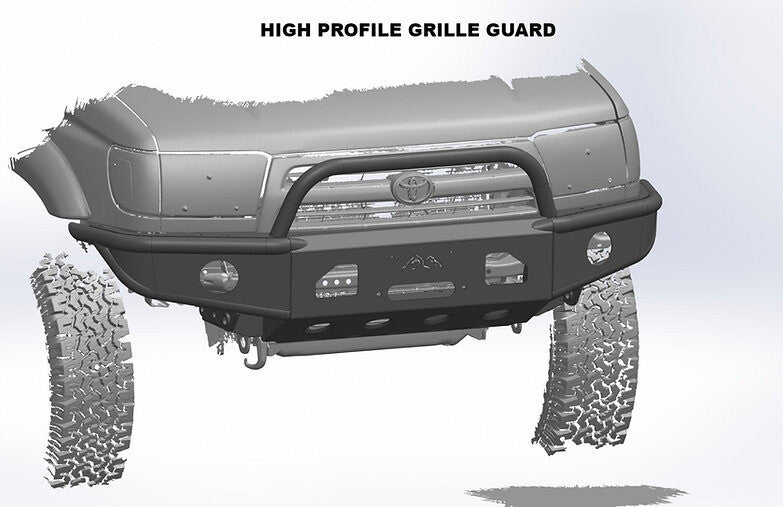

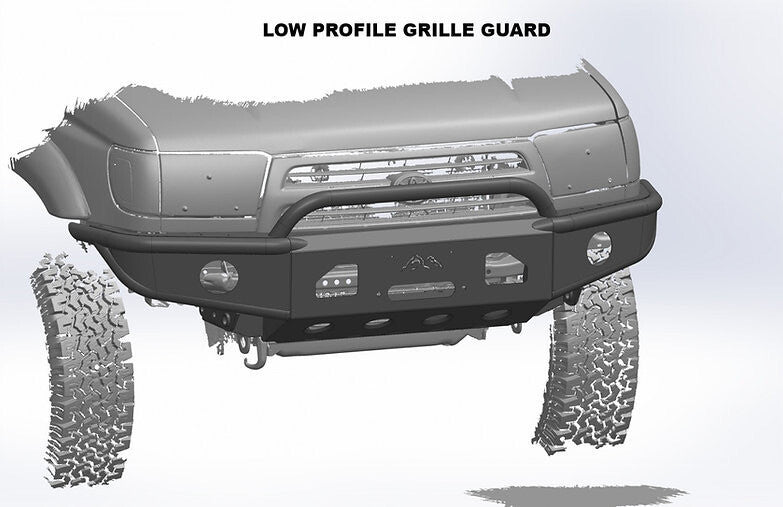

DIY kit ships as raw components to be welded by end user. Requires trimming 2" from front frame rails—this does not compromise frame integrity. Not compatible with body lifts without visible gap. Grille guard tubing is oversized and not pre-coped. Minor cosmetic flaws may be present from shipping or handling. For off-road use only.
