Overview:

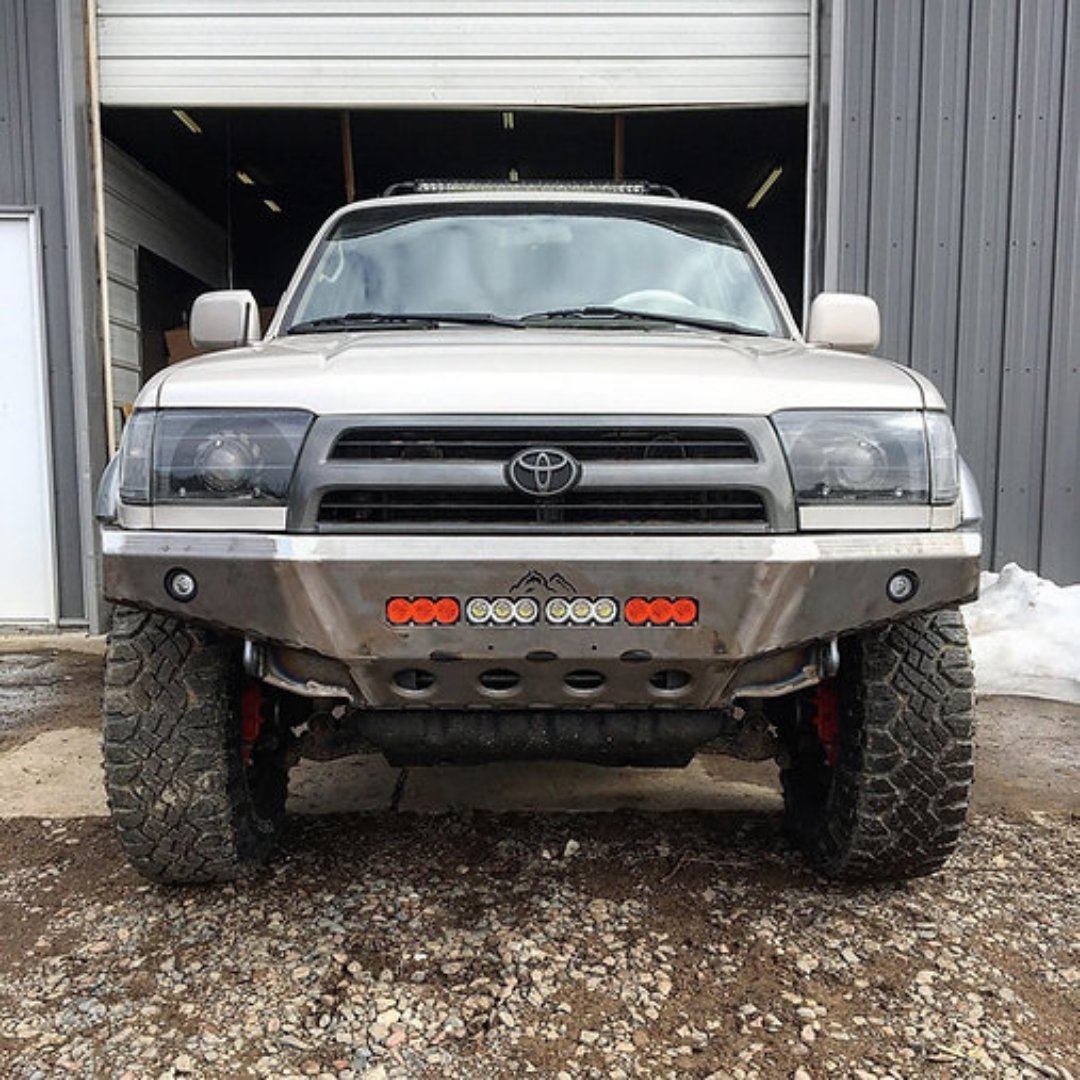

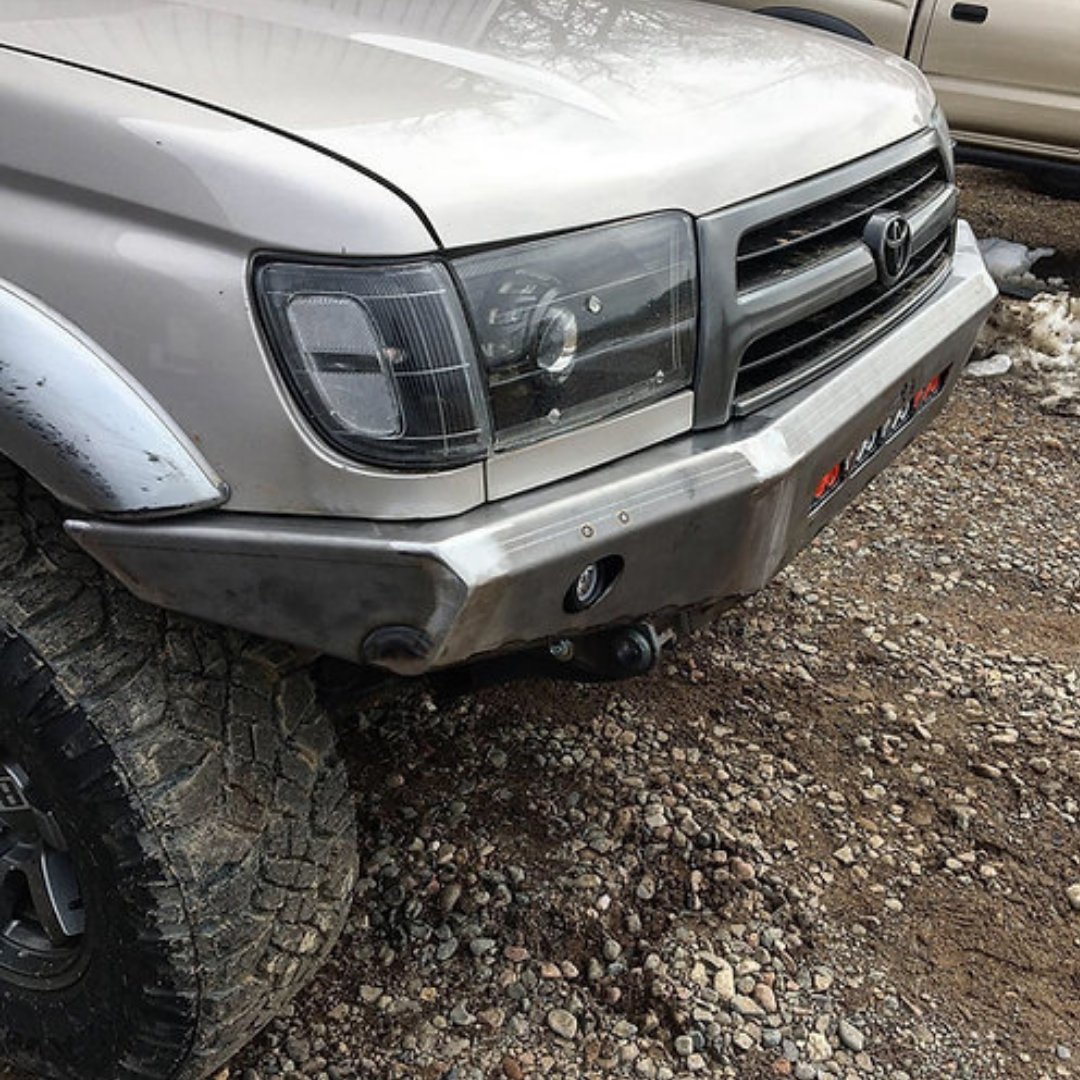

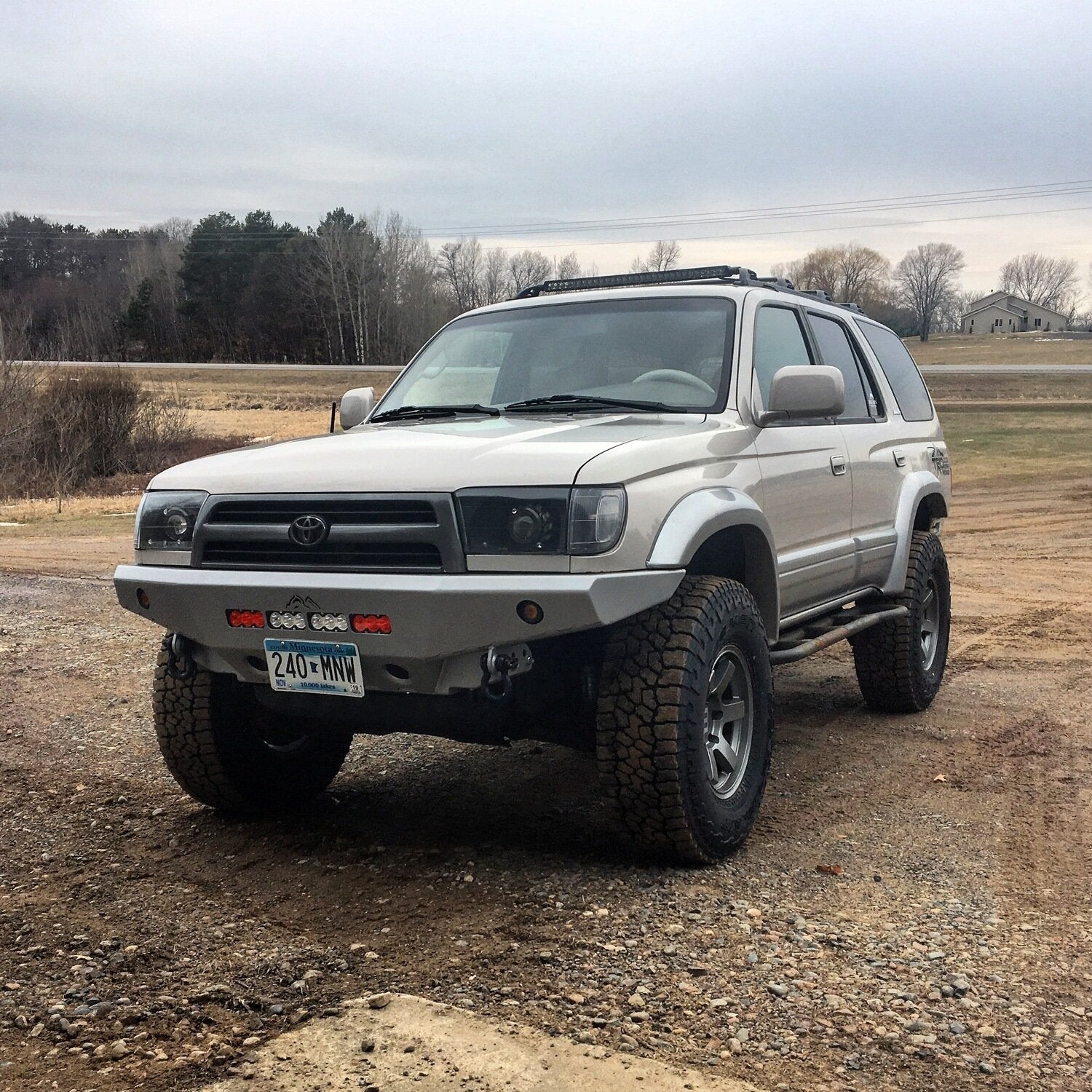

The Alpha Front Bumper DIY Kit is a precision-engineered, weld-together steel bumper for 3rd Gen 4Runners, built for aggressive styling and light integration without winch compatibility. It offers maximum protection and a clean, modern aesthetic for trail-ready builds.
– Fully enclosed design with integrated light bar and fog light mounts
– Tabbed/slotted construction simplifies alignment and welding
– Laser-scanned for high-accuracy fitment
– Dual shackle mounts reinforced with DOM tubing
– Designed to fit a 22" X6 Extreme LED light bar and 2.5" fog lights
– Oversized mounts with hardware for flexible frame alignment
Specifications:
– Frame mount, inner support, skid plate, wings: 3/16" HRPO steel
– Vertical plates: 1/4" steel
– Wing brackets with shackle mounts: 3/8" steel + 1.5" OD .250 wall DOM
– Remaining panels: 11-gauge HRPO steel
– Tubing: 1.75" OD 11-gauge ERW steel
– Light bar cutout: Fits Extreme LED 22" X6 10W
– Fog light openings: 2.5" diameter (oval projection)
– Approximate weight: 80 lbs (plus grille guard tubing if added)
Fitment:
1996–2002 Toyota 4Runner
Notes:

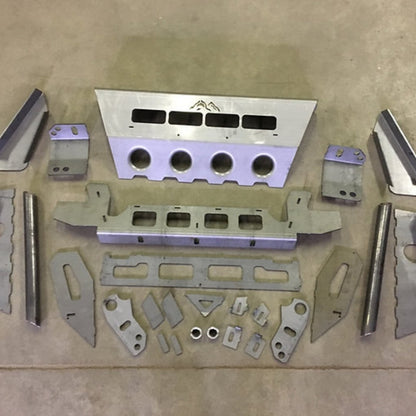

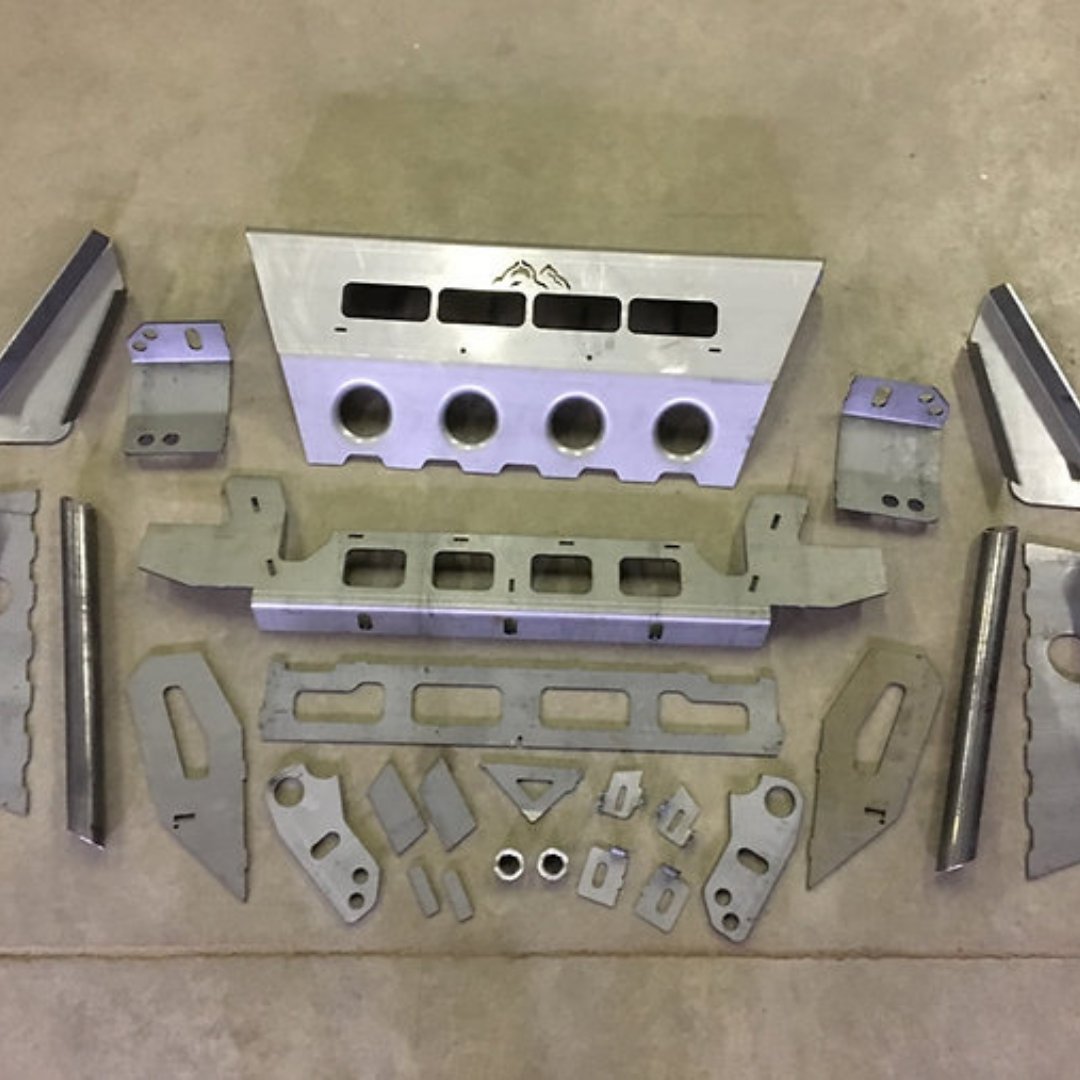

DIY weld-together kit—ships as raw components. Not compatible with body lifts without leaving a gap. Requires 2" frame rail trimming for optimal fitment; does not affect structural integrity. Grille guard tubing is uncoped and oversized. Not winch-compatible. Minor surface blemishes may be present from handling.
