Overview:
Two-piece weld-on Panhard Correction Kit for 100 Series Land Cruiser, designed to correct panhard bar geometry on 2–4.5" rear lifts. Optimizes suspension performance by restoring panhard bar angle and roll center alignment.
– Corrects panhard angle with 2-piece bracket solution to fit LC frame constraints

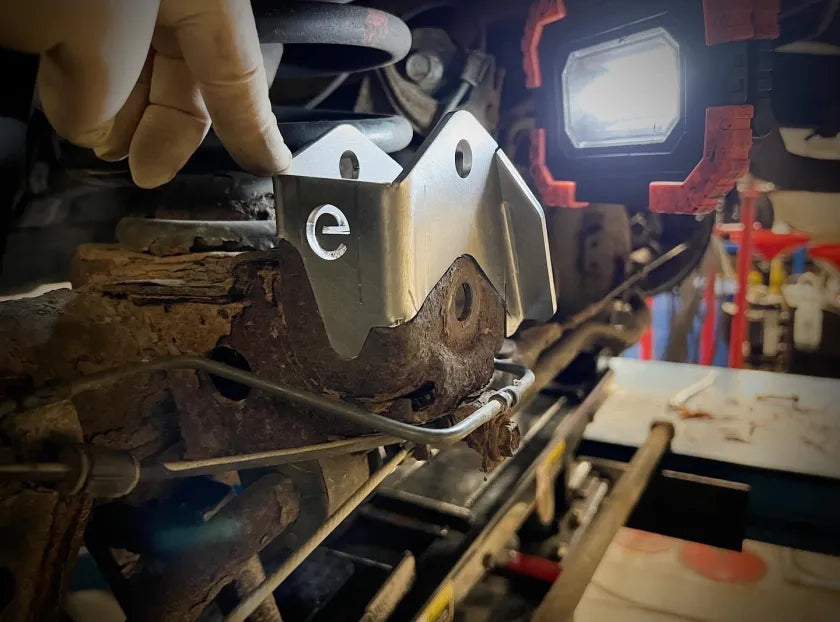

– Axle-side bracket provides initial 2" (50.8 mm) of correction

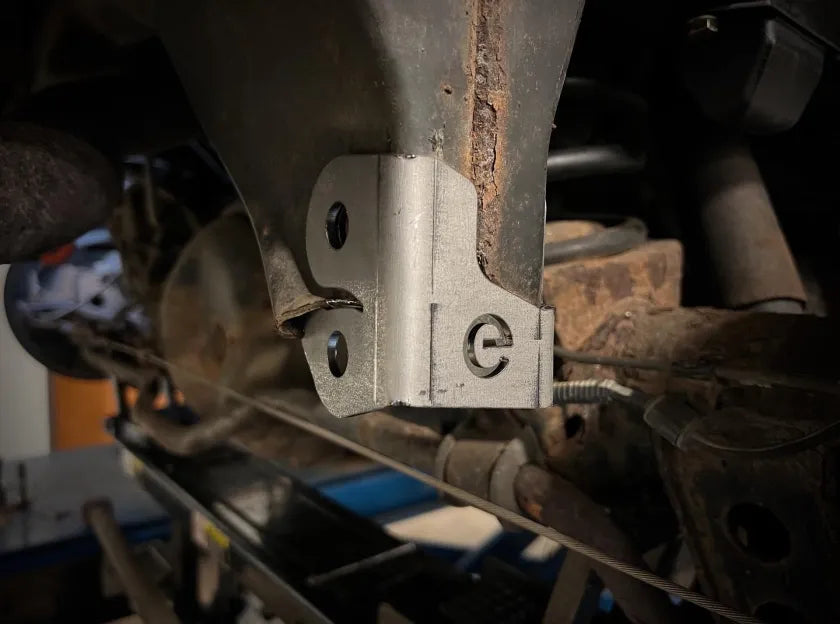

– Frame-side bracket adds up to 40 mm of additional correction for taller lifts
– Raises rear roll center and improves lateral stability on lifted setups
– Eliminates need for adjustable panhard bar in most configurations
Specifications:
– Axle-side bracket: 3/16" (0.1875") steel
– Frame-side bracket: Drop-style, adjustable
– Weld-on design
– Finish: Raw steel
Fitment:
1998–2007 Toyota Land Cruiser 100 Series
What’s Included:
– (1) Frame-side drop bracket
– (1) Axle-side lift bracket
– (1) eimkeith logo decal
Notes:
Welding required for installation. Designed for use with 2–4.5" of rear lift. Axle-side bracket corrects up to 2", with additional 40 mm correction from frame-side bracket as needed. Not intended for use with adjustable panhard bars. Factory bump stops must remain in place to ensure proper clearance.
