Overview:

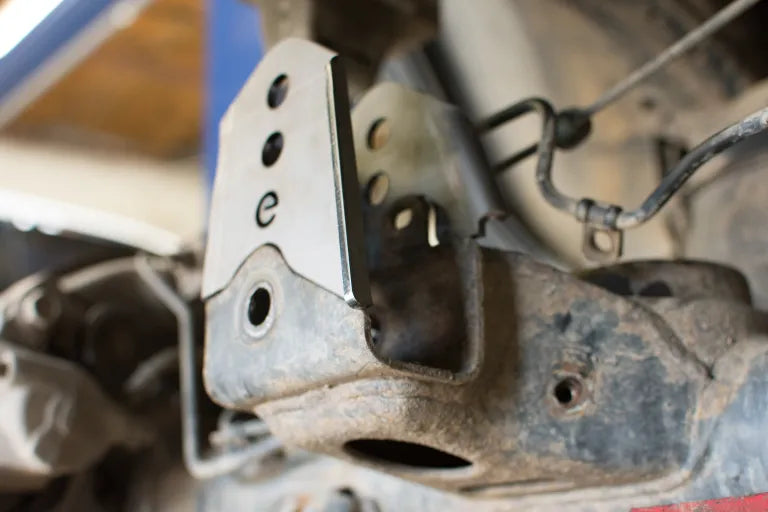

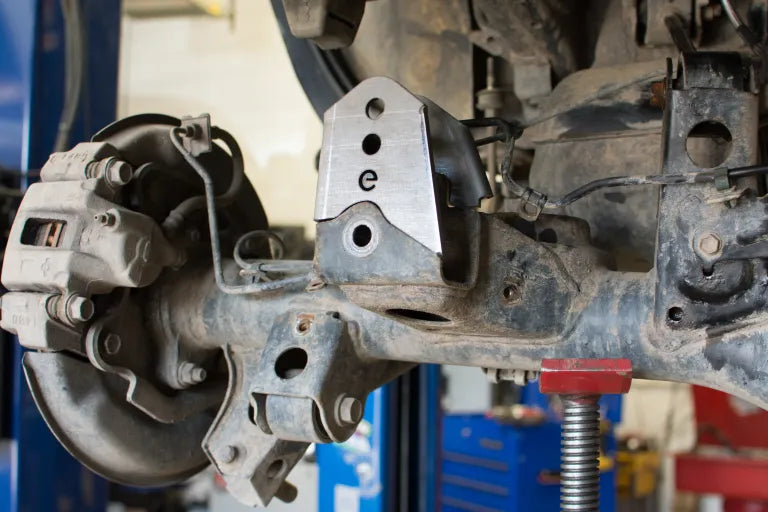

Weld-on Panhard Correction Kit for 2003–2024 4Runner, engineered to correct panhard bar geometry on 2–4.5" lifts. Restores axle alignment and improves suspension dynamics without requiring an adjustable panhard bar.
– Repositions panhard bar to a horizontal plane for optimal axle centering
– Raises axle-side mount by 2 inches to improve roll center on lifts up to 4"
– Enhances rear stability and reduces lateral movement during articulation
– Maintains proper geometry without compromising factory bump stop clearance
– Eliminates the need for aftermarket adjustable panhard bars in most applications
Specifications:
– Axle-side bracket: 3/16" (0.1875") steel
– Weld-on design
– Finish: Raw steel
Fitment:
2003–2024 Toyota 4Runner
What’s Included:
– (1) Axle-side lift bracket
– (1) Flange nut
– (1) eimkeith logo decal
Notes:
Welding required for installation. Designed for 2–4.5" of rear lift. Not intended for use with adjustable panhard bars compensating for incorrect geometry. Factory bump stops must remain in place to ensure proper clearance.
