Overview:
The DuroBumps DBR525LT Rear Bump Stops for the 2003–2009 Lexus GX470 are designed for vehicles running 3-inch+ rear lifts with Dobinsons or Metal Tech long travel kits. These 3-inch extended bump stops reduce up-travel to prevent shock over-compression while improving ride quality and suspension control.
– Adds 3" of bump stop height to accommodate long-travel rear shocks
– Resolves OEM bump stop alignment issues for proper axle tube contact
– Dual durometer rubber for progressive dampening
– Offsets designed specifically for Dobinsons/Metal Tech 12" rear shocks
– Bolt-on installation in OEM frame location—no modifications needed
Specifications:
– Height: 5.25 in.
– Up-travel reduction: 3 in. vs. OEM
– Material: Dual durometer rubber
– Mounting: Frame-mounted with built-in offset
– Hardware: JIS 10.9 M8 x 1.25 x 40 mm flange bolts (zinc-coated, pre-applied thread locker)
– Part number: DBR525LT
– Made in the USA
Fitment:
2003–2009 Lexus GX470
Included:

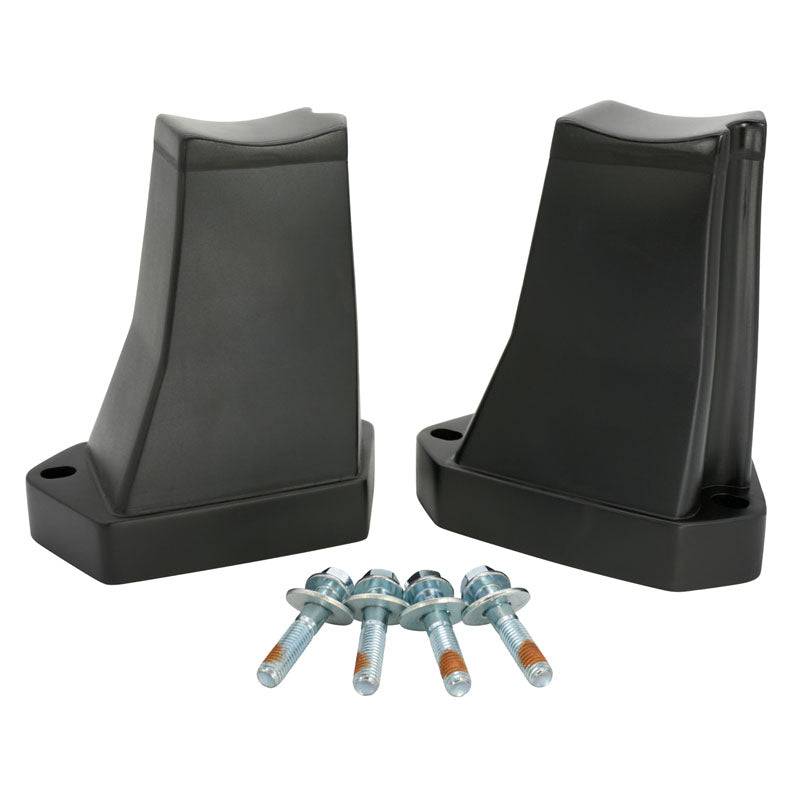

– (2) Rear DuroBumps (5.25 in. height)
– (4) JIS 10.9 M8 x 1.25 x 40 mm flange bolts with pre-applied thread locker
– (1) DuroBumps sticker
– Installation instructions
Notes:
For off-road use only. Not intended for towing applications. Do not use spacers with this product. Requires a minimum of 3 inches of rear lift and 12-inch long travel rear shocks.
